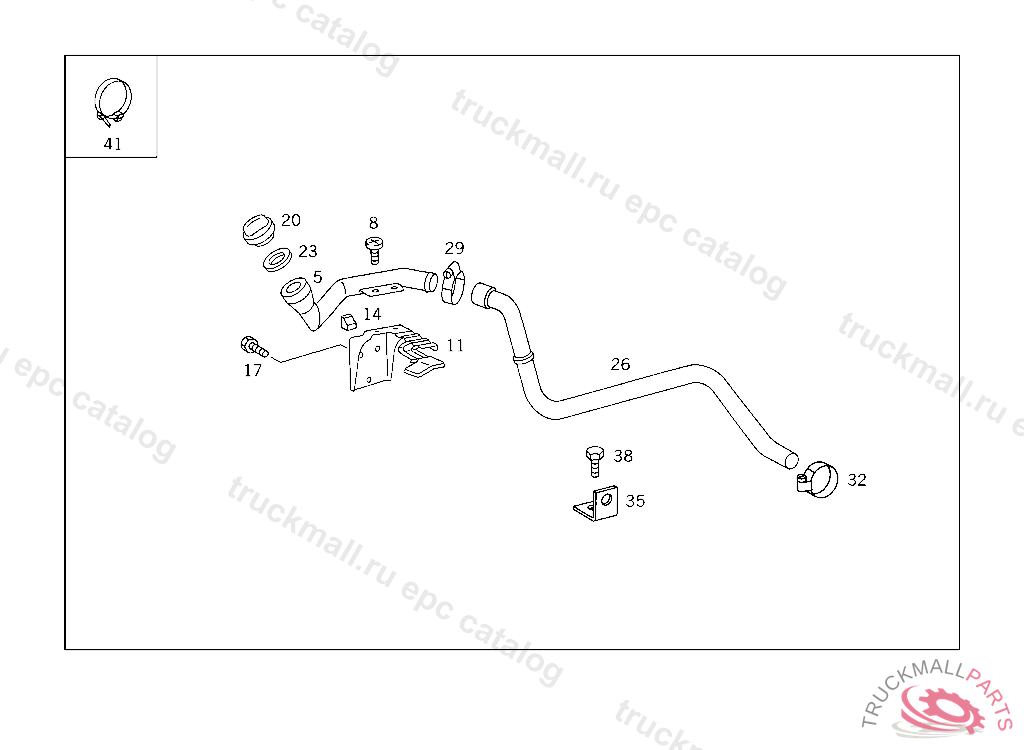

Поз.
Артикул
Описание
5
PIPE ,5 293767
8
SCREW OIL FILLER NECK TO BRACKET,5 458408
11
BRACKET OIL FILLER PIPE TO RADIATOR
14
SHIM OIL FILLER PIPE TO RADIATOR
17
SCREW BRACKET TO WATER RADIATOR
20
CAP OIL REFILLING,5 293767
23
GASKET
26
HOSE FROM OIL FILLER NECK TO OIL PAN
29
CLAMP , Replaced By: N000000000670
29
CLAMP
32
CLAMP25-40X13 MM
32
CLAMP , Replaced By: A0069970490
32
LOOM TIE , Replaced By: N000000000668
35
BRACKET OIL FILLER HOSE ON ALTERNATOR
38
SCREW EXHAUST PIPE TO BRACKET
41
LOOM TIE
41
LOOM TIE LINE MOUNTING 280 MM
41
LOOM TIE , Replaced By: A1149970590
999
NUT STRAP TO BRACKET
999
NUT , Replaced By: N910113010000
