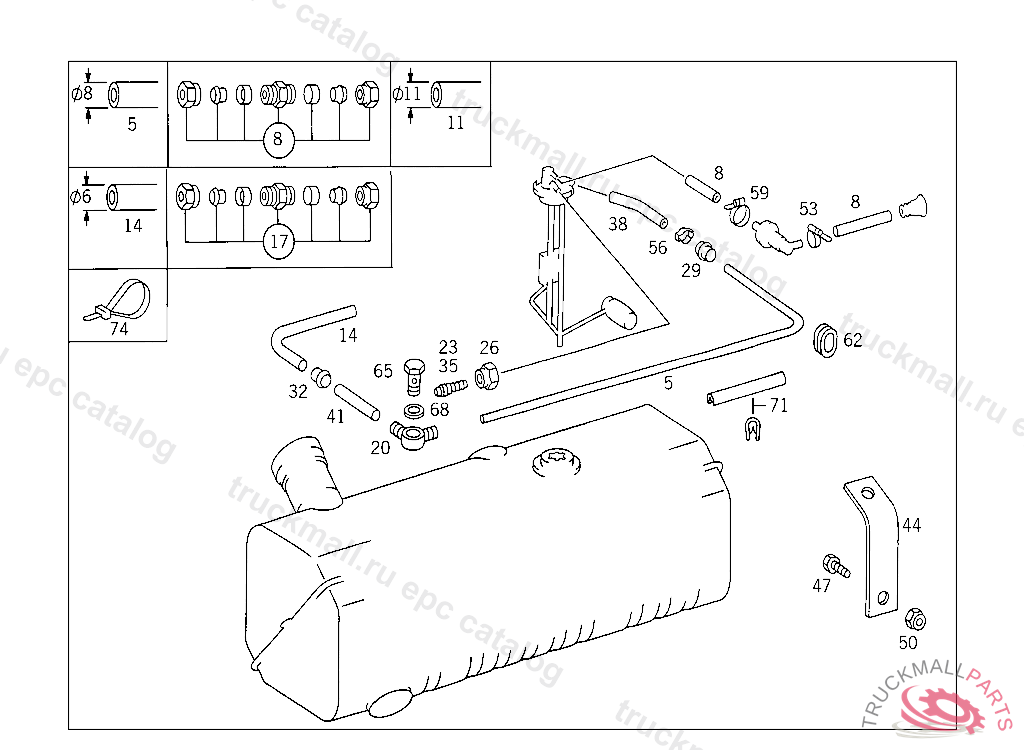

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
8
FITTING , Replaced By: A0029905971
11
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
14
PLASTIC PIPE RISING PIPE 4X6 MM
14
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
17
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
20
BANJO UNION FEED LINE
23
FITTING RETURN LINE
26
UNION NUT RETURN
29
SLEEVE LINE CONNECTION
32
SLEEVE LEAK LINE
38
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
41
HOSE LEAK LINE, ORDER BY THE METER
53
CLAMP LINE CONNECTION
59
CLAMP LINE MOUNTING
59
HOSE VENT VALVE TO FUEL TANK
62
GROMMET FOR PASSAGE OF LINE
65
HOLLOW SCREW , Replaced By: N915036010108
65
HOLLOW SCREW FUEL LINE TO FEED PUMP
68
SEAL RING FUEL LINE TO FEED PUMP
71
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
71
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
74
LOOM TIE LINE MOUNTING 280 MM
74
LOOM TIE LINE MOUNTING
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
