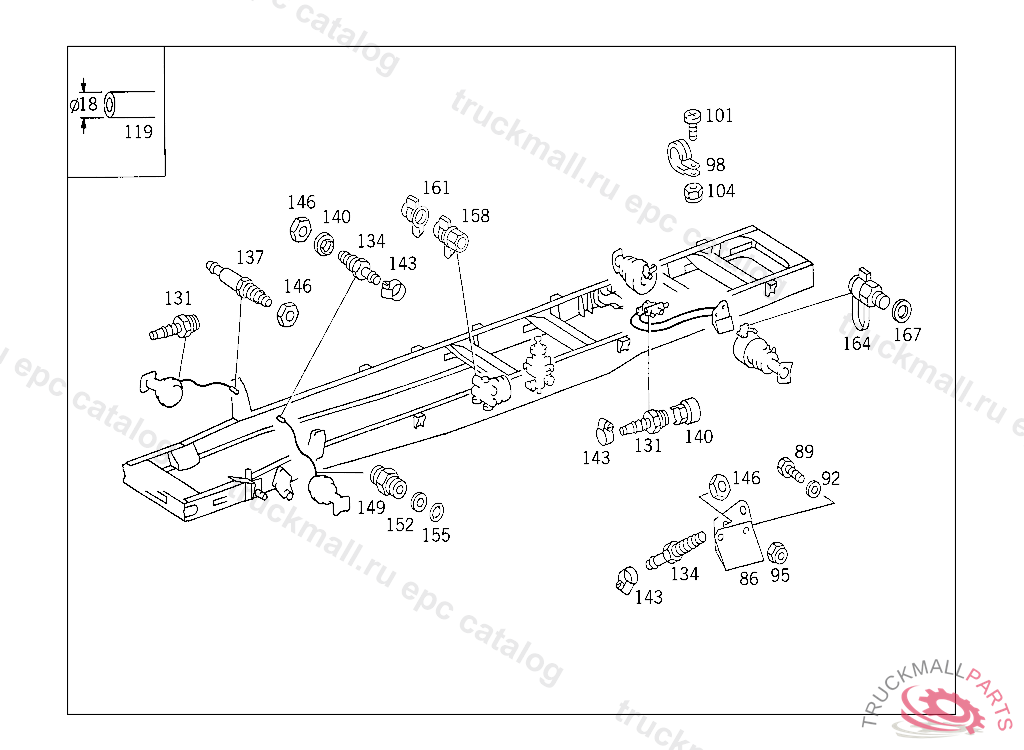

Поз.
Артикул
Описание
86
BRACKET COMPRESSED AIR LINE
89
SCREW END PIECE TO EXHAUST PIPE M 10X25
92
WASHER , Replaced By: N006902011100
92
WASHER , Replaced By: N006902011102
92
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
95
NUT STRAP TO BRACKET
95
NUT , Replaced By: N910113010000
98
CLAMP BRAKE HOSE BRACKET
101
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
101
SCREW CLAMP TO BRACKET
104
NUT PUMP TO BRACKET
104
NUT , Replaced By: N913004006001
119
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
131
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
131
CONNECTOR , Replaced By: A0019901378
134
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
140
LOCK REAR AXLE BRAKE HOSE,K 181360
143
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
143
CLAMP HOSE TO FITTING AND TO OIL TANK
146
NUT BRACKET TO SIDE MEMBER
149
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
149
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
152
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
152
THRUST RING CHECK VALVE TO AIR RESERVOIR
155
O-RING CHECK VALVE TO AIR RESERVOIR
158
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
158
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
158
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
158
TEST CONNECTION
161
PLUG
164
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
164
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
167
SEAL RING LINE CONNECTION
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
