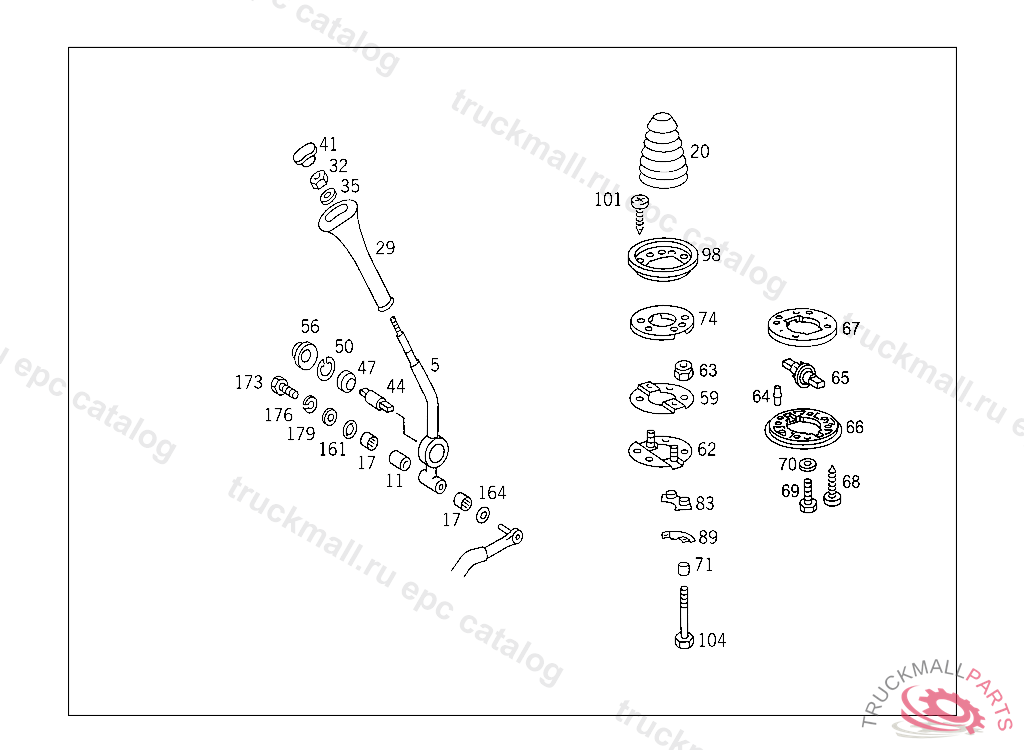

Поз.
Артикул
Описание
5
SHIFT LEVER
11
BUSHING
17
NEEDLE BEARING
17
NEEDLE BEARING
20
BOOT SHIFTING LEVER
29
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
32
NUT , Replaced By: N308675010000
35
WASHER RADIATOR TO RUBBER MOUNTING
35
WASHER , Replaced By: N000125010532
41
COVER FIVE-SPEED, SHIFT LEVER KNOB
44
PIN SHIFT LEVER BEARING,K040603
47
JOINT BEARING SHIFT LEVER BEARING,K040603
47
JOINT BEARING SHIFT LEVER BEARING,K040603
50
LOCK RING SHIFT LEVER BEARING
56
BOOT SHIFT LEVER BEARING
59
BRACKET SHIFT LEVER UPPER PART,K040603
62
BRACKET SHIFT LEVER LOWER PART,K040603
63
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
63
NUT , Replaced By: N913004008001
64
BUSHING COMPRESSED AIR LINE THRU CAB FLOOR,K040603
65
PIN SHIFT LEVER BEARING,K 040604
66
BRACKET SHIFT LEVER LOWER PART,K 040604
67
BRACKET SHIFT LEVER UPPER PART,K 040604
68
SHEET METAL SCREW BRACKET TO FLOOR PLATE
68
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
69
SCREW , Replaced By: A0099900101
69
SCREW , Replaced By: N000933008337
69
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
70
WASHER , Replaced By: N000125008443
70
WASHER EXHAUST MUFFLER TO STRAP
71
TUBE. BUSHING CAB FLOOR COVERING
74
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
83
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
89
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
98
BRACKET BOOT
101
SHEET METAL SCREW BRACKET TO CAB
104
SCREW SUPPORT TO FENDER
104
SCREW , Replaced By: N304017008018
161
SEAL RING LEVER BEARING
164
SPRING WASHER LEVER TO BRACKET
173
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
176
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
179
WASHER LEVER TO BRACKET 30X10.5X4 MM
