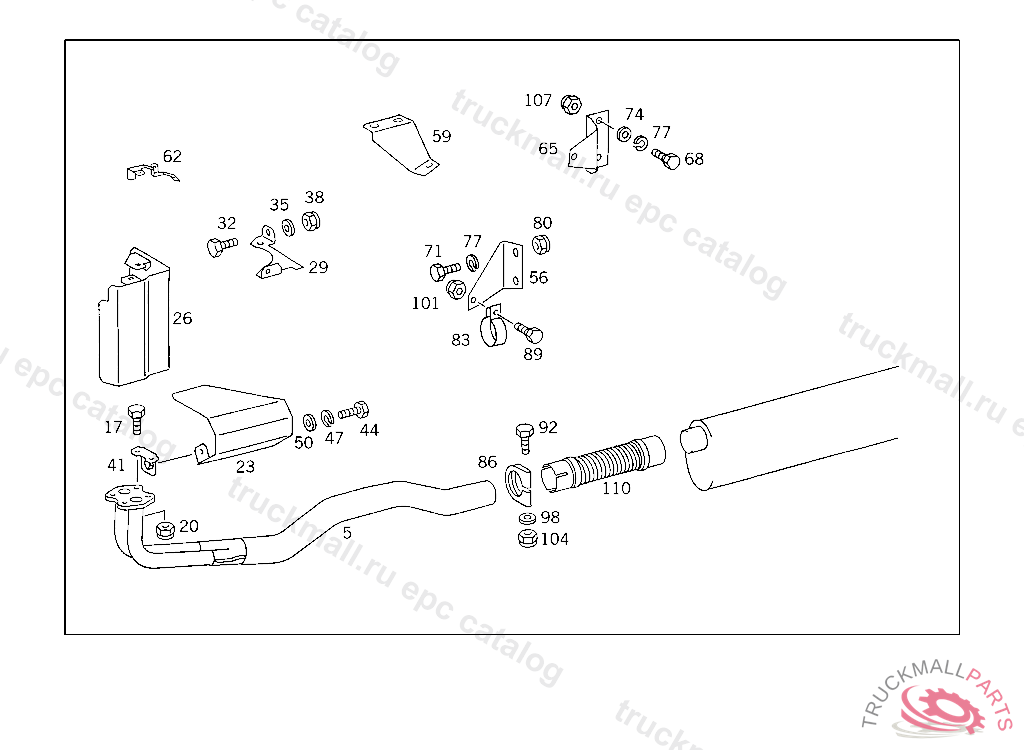

Поз.
Артикул
Описание
17
SCREW BRACKET TO FRAME SIDE MEMBER
20
NUT EXHAUST PIPE TO SIDE MEMBER
23
PROTECTIVE PLATE
41
BRACKET HEAT SHIELD
44
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
SCREW , Replaced By: N304017008016
47
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
WASHER , Replaced By: N000125008443
50
WASHER EXHAUST MUFFLER TO STRAP
56
BRACKET FRONT EXHAUST PIPE,5 337342
65
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 110579, Replaced By: A6764902440
65
BRACKET EXHAUST PIPE BRACKET TO BELL HOUSING
68
SCREW RADIATOR M 10X45
68
SCREW BRACKET TO FRAME SIDE MEMBER
71
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
74
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
74
WASHER , Replaced By: N006902011100
74
WASHER , Replaced By: A6739900940
74
WASHER , Replaced By: N006902011102
80
NUT , Replaced By: N910113014001
80
NUT BRACKET TO SIDE MEMBER
86
CLAMP EXHAUST PIPE TO MUFFLER
89
SCREW BRACKET TO SIDE MEMBER
92
SCREW BRACKET TO 3/2-WAY VALVE
98
WASHER EXHAUST MUFFLER TO STRAP
98
WASHER , Replaced By: N000125008443
101
NUT STRAP TO BRACKET
104
NUT , Replaced By: N913004008001
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET , Replaced By: A3834927941
999
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET , Replaced By: A3834927941
999
WASHER , Replaced By: N006902011100
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET , Replaced By: A3524920141
999
BRACKET AT SIDE MEMBER,5 478324
999
EXHAUST PIPE FRONT,FRONT PART
999
BRACKET REAR EXHAUST PIPE
999
EXHAUST PIPE FRONT,REAR PART
999
WASHER , Replaced By: N006902011102
