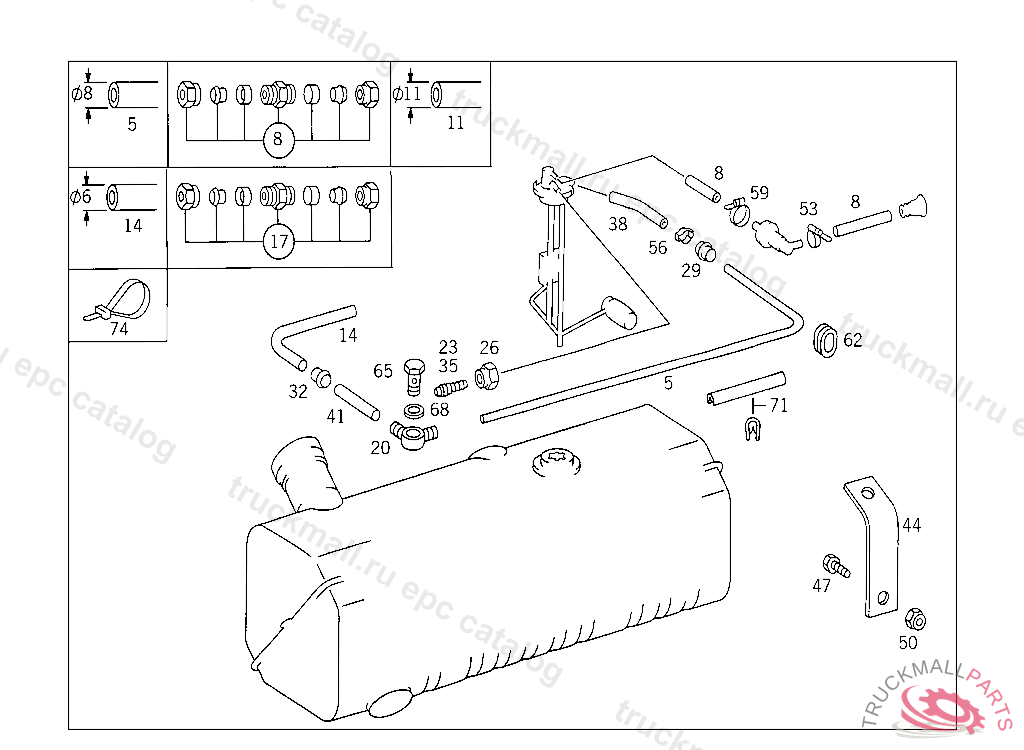

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
8
FITTING , Replaced By: A0029905971
11
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
14
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
14
PLASTIC PIPE RISING PIPE 4X6 MM
17
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
20
BANJO UNION FEED LINE
23
FITTING RETURN LINE
26
UNION NUT RETURN
32
SLEEVE LEAK LINE
35
INTERMEDIATE PIECE FEED LINE AND RETURN LINE,K 169122
38
HOSE LEAK LINE
41
HOSE LEAK LINE, ORDER BY THE METER
44
BRACKET FUEL LINE, NOT USED
47
SCREW PIPE CLAMP
47
SCREW , Replaced By: N304017008021
50
NUT , Replaced By: N913004008001
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
CLIP LEAK LINE
59
CLAMP LINE MOUNTING
59
HOSE VENT VALVE TO FUEL TANK
62
GROMMET FOR PASSAGE OF LINE
65
HOLLOW SCREW FUEL LINE TO FEED PUMP
65
HOLLOW SCREW , Replaced By: N915036010108
68
SEAL RING FUEL LINE TO FEED PUMP
74
LOOM TIE LINE MOUNTING
74
LOOM TIE LINE MOUNTING 280 MM
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
