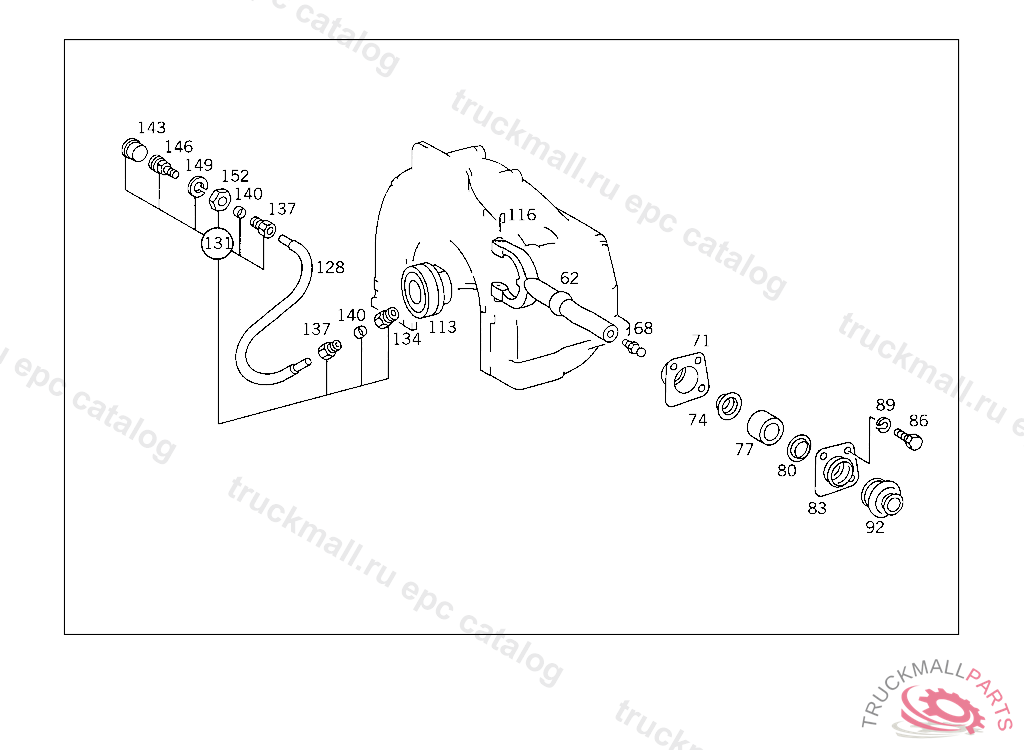

Поз.
Артикул
Описание
62
RELEASE LEVER (RELEASE YOKE)
68
BALL PIVOT RELEASE YOKE
68
BALL PIVOT RELEASE YOKE
71
BRACKET INSIDE
74
SEAL RING RELEASE YOKE
74
SEAL RING RELEASE YOKE
77
BEARING RELEASE YOKE
77
BEARING RELEASE YOKE
80
SEAL RING RELEASE YOKE
80
SEAL RING RELEASE YOKE
83
BRACKET OUTSIDE
86
SCREW PIPE CLAMP
86
SCREW , Replaced By: N304017008021
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
92
BOOT RELEASE YOKE
113
RELEASE BEARING
113
RELEASE BEARING , Replaced By: A0012509315
113
RELEASE BEARING , Replaced By: A0012509315
116
SPRING LOCK RELEASE YOKE TO RELEASE BEARING
128
HOSE RELEASE BEARING LUBRICATION
131
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
134
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
137
UNION SCREW RELEASE COLLAR LUBRICATION
140
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
143
CAP RELEASE BEARING LUBRICATION
146
GREASE NIPPLE RELEASE COLLAR LUBRICATION
149
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
152
NUT RELEASE BEARING LUBRICATION
152
NUT , Replaced By: N308675014002
152
NUT , Replaced By: N308675014000
999
CLUTCH LINING
