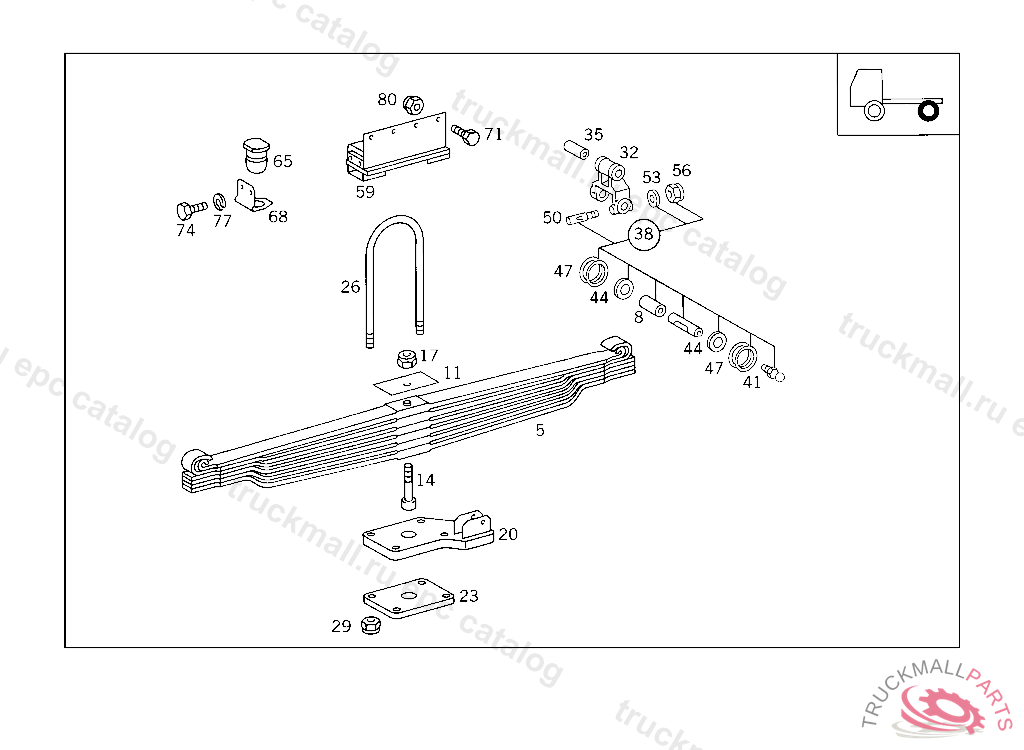

Поз.
Артикул
Описание
5
REAR SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "6"
8
BUSHING
8
BUSHING
11
SHIM REAR SPRING
14
SCREWM 18X1.5X175
14
SPRING BOLT , Replaced By: A9463210071
17
NUT TORSION BAR TO BEARING BRACKET,5 904661
20
20
23
26
U-BOLT SPRING BRACKET TO REAR AXLE
29
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
32
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
32
SHACKLE REAR SPRING
35
BUSHING
38
SHACKLE PIN (PARTS KIT),REAR SPRING EYE, ON RELOCATION OF SPRING SHACKLES,SUPPLY ADDITIONALLY:2X 335 324 00 50
41
GREASE NIPPLE PROTECTIVE TUBE
44
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
44
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
47
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
50
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
53
WASHER RADIATOR TO RUBBER MOUNTING
53
WASHER , Replaced By: N000125010532
56
NUT , Replaced By: N910113010000
56
NUT STRAP TO BRACKET
59
65
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
68
BRACKET HELPER SPRING
71
HEXAGON HEAD BOLT , Replaced By: A0029902704
71
SCREW , Replaced By: N308676012013
74
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
77
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
80
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
80
NUT , Replaced By: N910113012003
