Поз.
Артикул
Описание

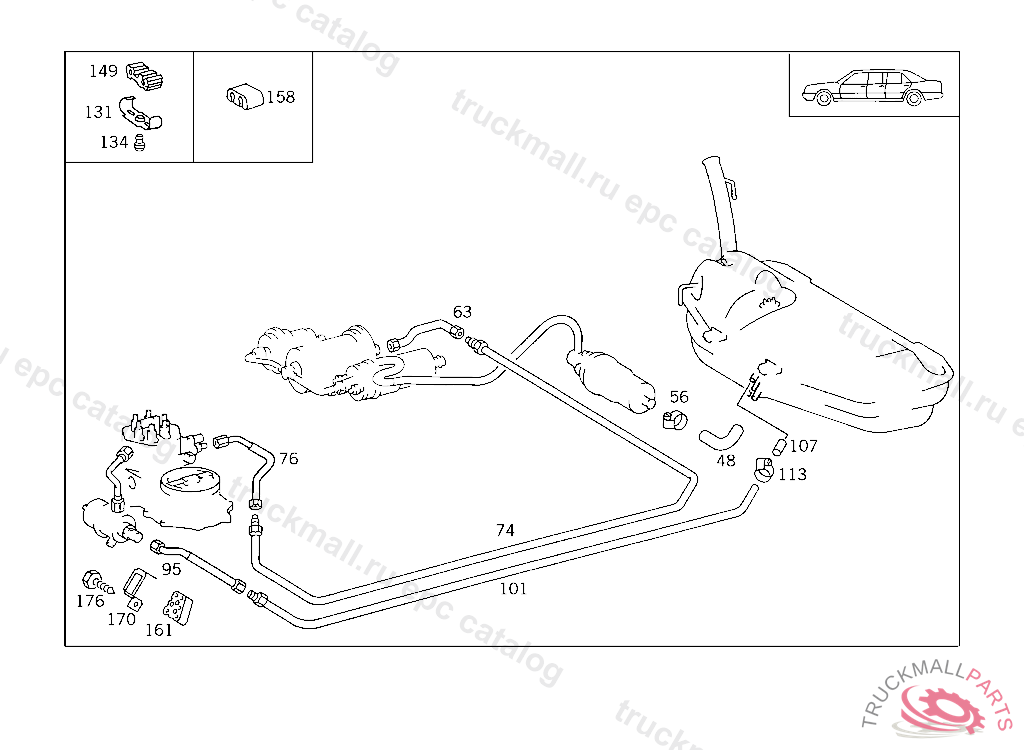

48
HOSE FROM TANK FILTER TO FUEL PUMP
56
CLAMP FROM VENT PIPE TO FILLER NECK
63
FUEL HOSE ,A 872850, Replaced By: A1244702775, +001A1244701581
74
LINE FEED LINE
76
FUEL HOSE FROM FEED LINE TO ENGINE
95
FUEL HOSE FROM ENGINE TO RETURN LINE
101
LINE RETURN
107
HOSE ***
113
CLAMP
131
CLAMP FUEL LINES TO VEHICLE FLOOR
134
CLAMPING ELEMENT FLOOR BELOW REAR SEAT
149
DAMPING STRIP FUEL LINES TO VEHICLE FLOOR
158
RUBBER SECTION20 MM, ORDER BY THE METER
176
SHEET METAL SCREW VALVE TO WINDOW SILL
