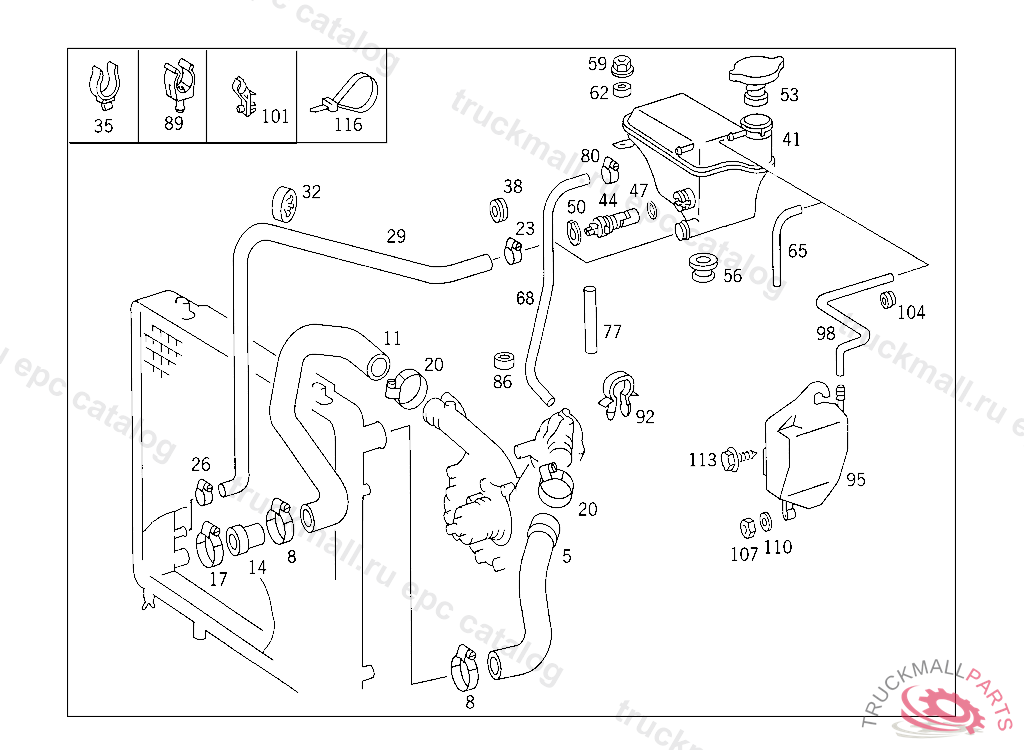

Поз.
Артикул
Описание
5
HOSE TOP, ONLY USED WITH AIR CONDITIONER
5
HOSE TOP, USED WITHOUT AIR CONDITIONER
8
LOOM TIE , Replaced By: N000000000668
8
CLAMP , Replaced By: A0069970490
8
CLAMP25-40X13 MM
11
HOSE BOTTOM, USED WITHOUT AIR CONDITIONER TO 102 200 09 20,F 058035
11
HOSE BOTTOM, ONLY USED W/AIR CONDITIONER TO 102 200 09 20,F 058035
11
HOSE BOTTOM, ONLY USED W/AIR CONDITIONER TO 102 200 05 20/06 20, 020,A 609077 021/023,A 609262
11
HOSE BOTTOM, USED WITHOUT AIR CONDITIONER TO 102 200 05 20/06 20,F 058034
20
CLAMP , Replaced By: A0069970590
20
LOOM TIE
23
CLAMP25-40X13 MM
23
LOOM TIE , Replaced By: N000000000668
23
CLAMP , Replaced By: A0069970490
41
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 225458, Replaced By: A1245001749
41
TANK EXPANSION TANK
44
SWITCH COOLING WATER LEVEL INDICATOR
47
SEAL RING
50
LOCK RING MAIN SHAFT,FRONT
53
CLOSING COVER RADIATOR
53
RADIATOR CAP
53
FILLER CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 205503, Replaced By: A1245000406
56
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
59
NUT MOUNTING FRAME TO SUPPORT M6
65
HOSE
65
HOSE , Replaced By: A0219977682
68
HOSE , Replaced By: N000000000734
68
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
80
HOSE CLAMP LINE MOUNTING
80
CLAMP , Replaced By: A0059970190
80
CLAMP , Replaced By: A1409950036
86
RUBBER RING
