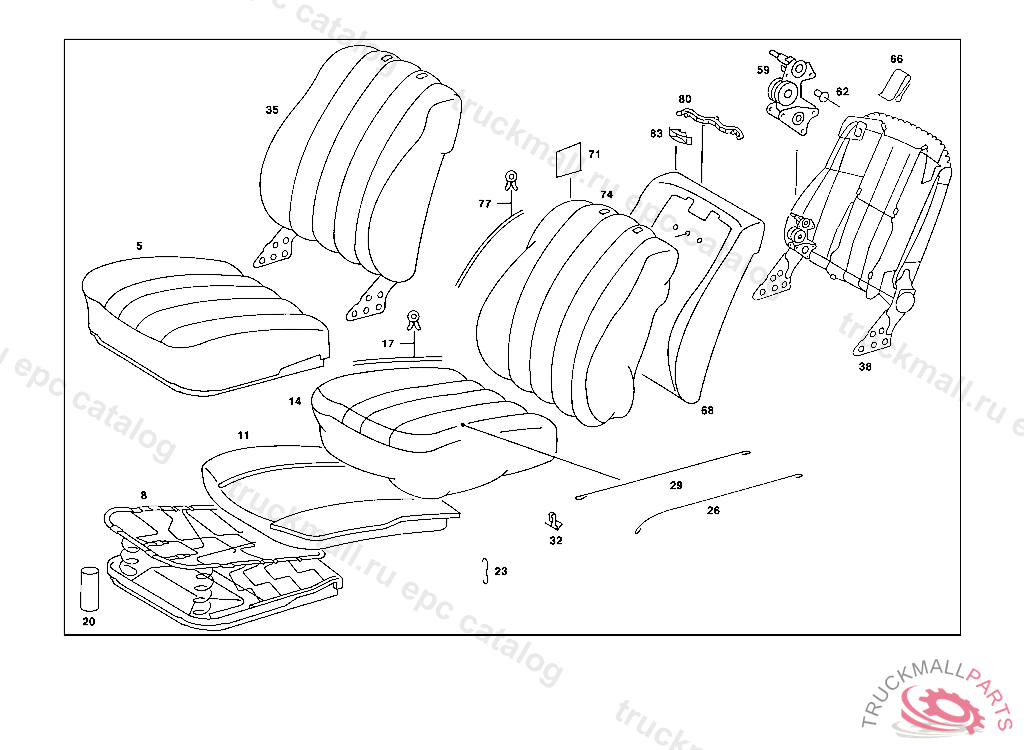

560 SEL - 126.039 SONDERSCHUTZ/SPECIAL EDITION - 91 FRONT SEATS
Поз.
Артикул
Описание
5
SEAT CUSHION VELOURS
8
CUSHION FRAME
11
PAD SEAT CUSHION
14
COVER
17
WELT1X900MM,1X920MM
20
INSERT
23
CLIP COVER TO PAD
26
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
29
BRACKET
32
CLIP , Replaced By: A1409883778
32
CLIP
35
BACKREST
35
BACKREST
38
BACKREST FRAME WITH SPRING CORE,LESS ELECTRIC MOTOR
38
BACKREST FRAME , Replaced By: A1269105634, +001A1269180125, +001N910001004107
66
CLIP PANELLING
68
PAD BACKREST
74
COVER
77
WELT1X900MM,1X920MM
