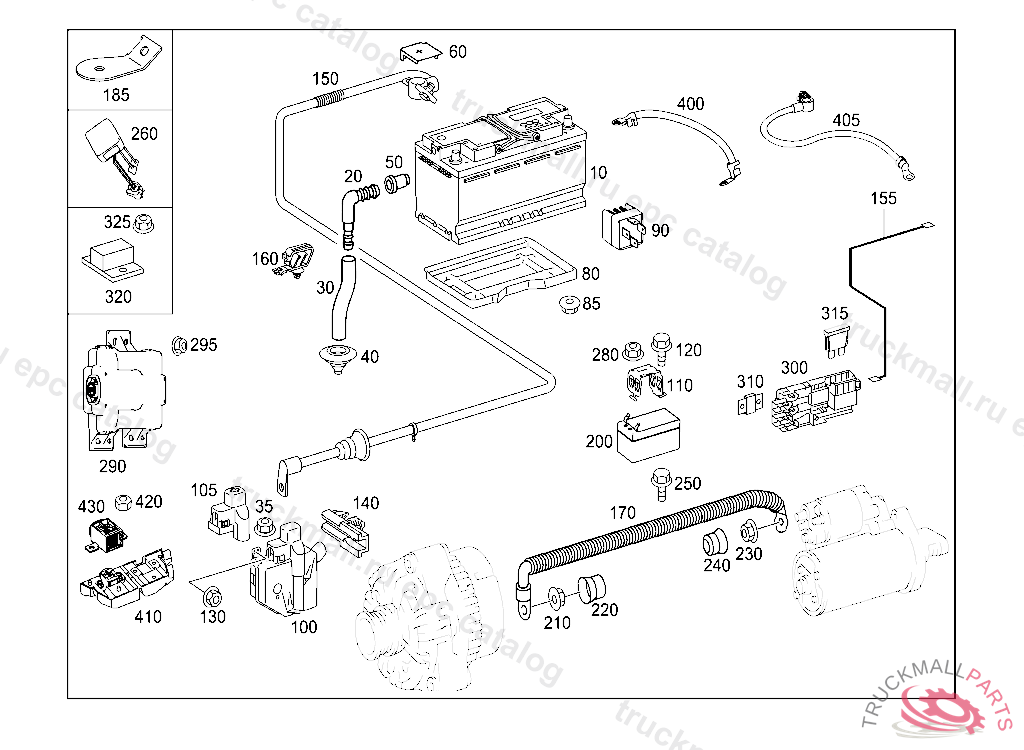

Поз.
Артикул
Описание
10
STARTER BATTERY IN REAR END 12V / 95AH
10
BATTERY FILLED 12V/95AH
20
ELBOW FITTING. DISTRIBUTOR
30
HOSE , ORDER BY THE METER
35
HEX NUT JUMP-STARTING POINT, A 04721120061023
40
GROMMET TANK FITTING GROUND LINE
50
STOP PLUG. PLUG ON BATTERY,LATERALLY
60
BOOT POS. POLE
80
BRACKET BATTERY FASTENING
85
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
100
FUSE BOX PREFUSE BOX AND JUMP STARTING TERMINAL POINT, A 53600720090709800
100
FUSE BOX JUMP-STARTING POINT, A 09458520081001809 A 11190420100430
100
FUSE BOX PREFUSE BOX AND JUMP STARTING TERMINAL POINT, A 54961420090831
100
FUSE BOX JUMP-STARTING POINT, A 09458520081001809 A 11190420100430
100
FUSE BOX JUMP-STARTING POINT, A 11190520100430
105
COVER JUMP-STARTING POINT
110
BRACKET BATTERY BACKUP
120
HEXAGON HEAD BOLT LINE MOUNTING M6X10
130
NUT BATTERY CABLE TO CABLE CONNECTOR
130
NUT JUMP START NEGATIVE TERMINAL
150
BATTERY CABLE POS.TERM BATTERY POS. TERM. TO PREFUSE BOX
150
BATTERY CABLE BATTERY POS. TERM. TO PREFUSE BOX, A 77148220110926
150
POS.CABLE BATTERY POS. TERM. TO PREFUSE BOX, A 13065920060508
150
POS.CABLE BATTERY POS. TERM. TO PREFUSE BOX, A 13065920060508 A 54961320090831
155
ELECTRICAL WIRING HARNESS BATTERY POS. TERM. TO PREFUSE BOX G1 - F33
160
BRACKET
170
ELECTRICAL WIRING HARNESS
170
ELECT. LINE , A 32101520070928808
170
POS.CABLE , A 11484220060328 P A 114607
170
STARTER WIRING HARNESS GENERATOR TO STARTER, A 11484220060328 P A 114607, Replaced By: A1645403230
200
BATTERY BATTERY BACKUP 1.2AH, A 01175020070731808
210
NUT CABLE TO ALTERNATOR,TERMINAL 30
220
PROTECTIVE CAP GENERATOR CIRCUIT 30
230
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
230
NUT CABLE TO ALTERNATOR,TERMINAL 30
240
PROTECTIVE CAP. BOOT NUT , M8
240
PROTECTIVE CAP. PROTECTION CAP PARTITION PANEL TO GRIP RAIL
250
SCREW BRACKET TO SIDE MEMBER M8X20
260
DC CONVERTER BACKUP BATTERY
280
NUT , Replaced By: N913023006001
280
NUT SCREENING
300
FUSE BOX FRONT PREFUSE BOX F33, A 37349120080108 A 47093920080908
310
FUSE LINK ON-BOARD ELEC. SUPPLY CONTROL MODULE 100A
310
FUSE LINK BASE BOX PLUS 100 A
315
FUSE LINK MAXIMUM FUSE 70 A
315
FUSE LINKE-40
320
RECTIFIER
325
NUT COVERING TO CAB FIRE WALL
400
GROUND LINE ENGINE SUPPORT, A 64598420100819
400
GROUND STRAP ENGINE SUPPORT, A 11696320100819
400
GROUND LINE ENGINE SUPPORT, A 64598320100819
405
WIRING HARNESS FROM BATTERY TO GROUND POINT W10
