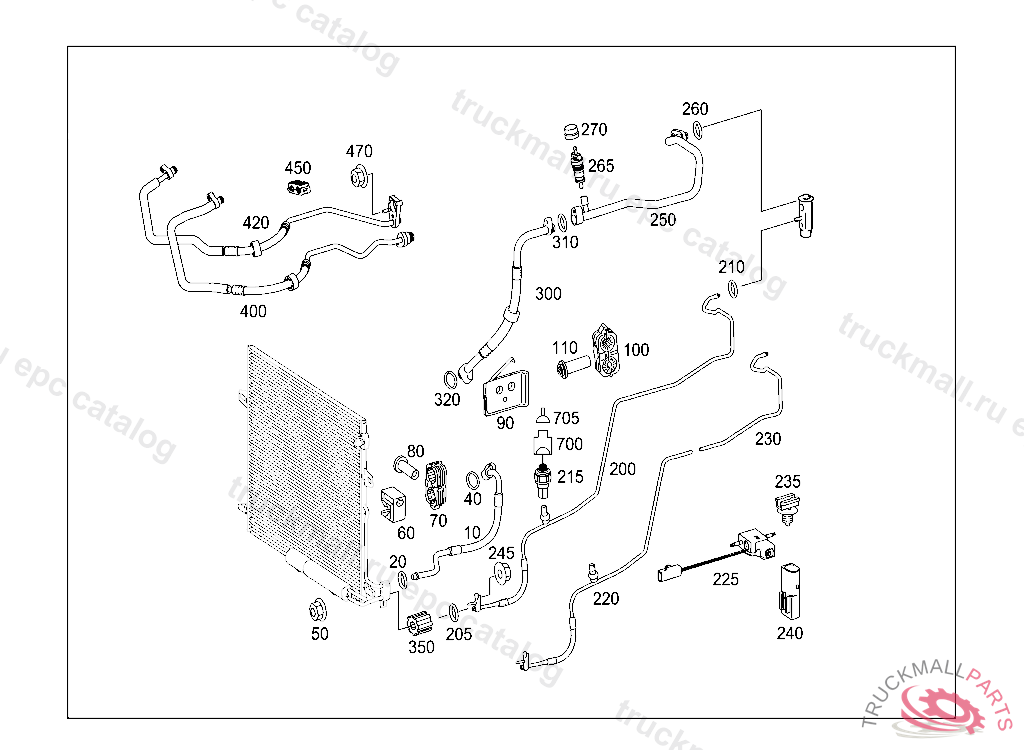

Поз.
Артикул
Описание
10
PIPELINE COMPRESSOR-TO-CONDENSER REFRIGERANT LINE
20
O-RING PIPE ON CONDENSER 9.42X2.47
40
O-RING LINE TO COMPRESSOR 10.90X1.85
50
NUT , Replaced By: N913023006001
60
BRACKET RESERVOIR TO FUEL TANK
70
CLAMP HYDROPNEUMATIC SPRING LEG DOME
80
THREADED BUSHING CABLE HOLDER
90
GROMMET REFRIGERANT LINE THRU FIRE WALL
100
CLAMP REFRIGERANT LINE TO BODY 10 MM + 16-19 MM BLACK
110
SCREW. CAP BOLT SEAT MOUNTING M8X35
110
THREADED BUSHING CABLE HOLDER
200
REFRIGERANT LINE CONDENSER TO EXPANSION VALVE
200
REFRIGERANT LINE CONDENSER TO EXPANSION VALVE
205
O-RING PIPE ON CONDENSER 9.42X2.47
210
O-RING TUBING AT EXPANSION VALVE 7.16X2.47
215
PRESSURE SENSOR
245
NUT , Replaced By: N913023006001
250
PIPELINE EXPANSION VALVE TO SEPARATION POINT
250
PIPELINE EXPANSION VALVE TO SEPARATION POINT
260
O-RING TUBING AT EXPANSION VALVE 14.11X2.70
265
VALVE INSERT TO EXPANSION VALVE LINE ON SEPARATION POINT
270
CAP AT EXPANSION VALVE PIPE TO SEPARATIONPOINT
300
PIPELINE FROM SEPARATION POINT TO COMPRESSOR
310
O-RING CABLE JUNCTION TO SEPARATION POINT 17.16X2.45
320
O-RING LINE TO COMPRESSOR 23.73X2.69
350
RUBBER RING SPRING STRUT LINE, FRONT RIGHT
700
CLUTCH. PIN BUSHING HOUSING SIREN
705
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
705
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
