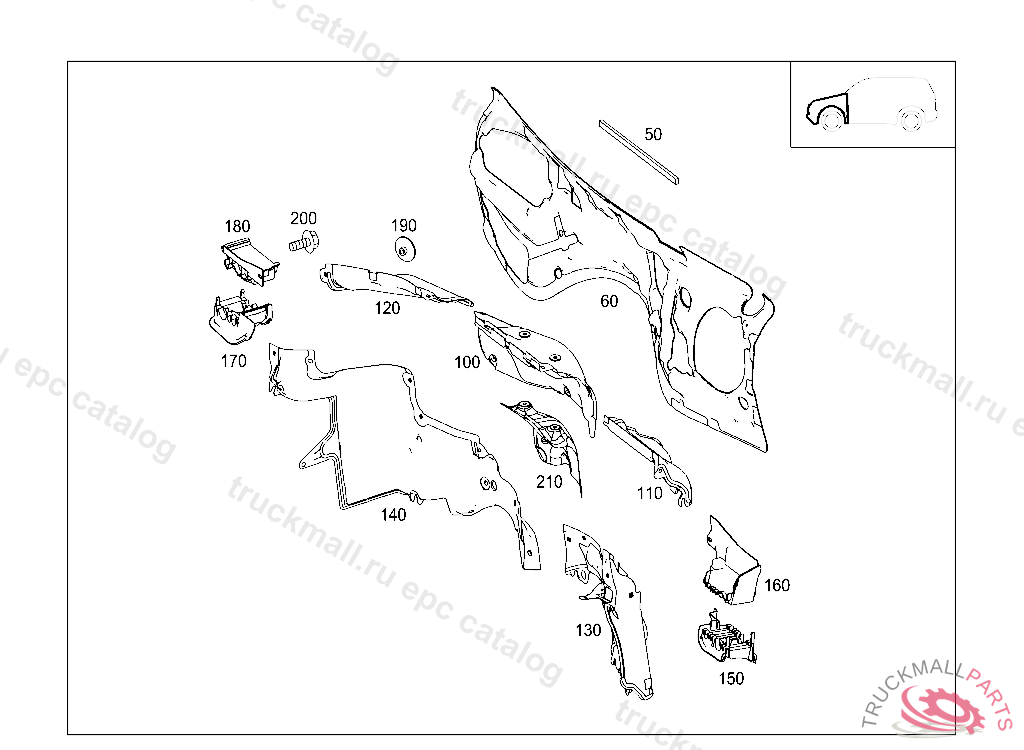

Поз.
Артикул
Описание
50
INSULATION FIREWALL TOP CENTER, TO BE ADAPTED DURING ASSEMBLY
60
SOUNDPROOFING FIREWALL, OUTSIDE, A 54526820090813
60
INSULATION FIREWALL FIREWALL, OUTSIDE, A 54526920090813
60
INSULATION FIREWALL, OUTSIDE, A 48345320081010 A 54526820090813
60
INSULATION FIREWALL FIREWALL, OUTSIDE, A 54526920090813
100
PARTITION PANEL INSULATION,CENTRAL
100
PARTITION PANEL INSULATION,CENTRAL
110
PARTITION PANEL LEFT SOUNDPROOFING
110
PARTITION PANEL LEFT SOUNDPROOFING
120
PARTITION PANEL RIGHT SOUNDPROOFING
120
PARTITION PANEL RIGHT SOUNDPROOFING
130
PARTITION PANEL LEFT SOUNDPROOFING
130
PARTITION LEFT SOUNDPROOFING
130
PARTITION PANEL LEFT SOUNDPROOFING, Replaced By: A1646202078
140
PARTITION PANEL RIGHT SOUNDPROOFING
140
PARTITION PANEL RIGHT SOUNDPROOFING, A 73413020110426
140
PARTITION RIGHT SOUNDPROOFING, A 73413120110426
150
INSULATION LEFT
150
INSULATION LEFT
160
INSULATION TOP, LEFT
160
INSULATION TOP, LEFT
170
INSULATION RIGHT
170
INSULATION RIGHT
180
INSULATION TOP, RIGHT, A 46093420080813
180
INSULATION TOP, RIGHT
190
NUT INSULATION AND BRACKET TO BODY
200
SCREW-AND-WASHER ASSEMBLY SERVICE FLAP M6X20
210
SCREENING FIRE WALL, A 56638220091030
210
SHIELDING FIRE WALL, A 56638320091030
210
SHIELDING FIRE WALL, A 56638320091030 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 62920820100624, Replaced By: A1646825171
