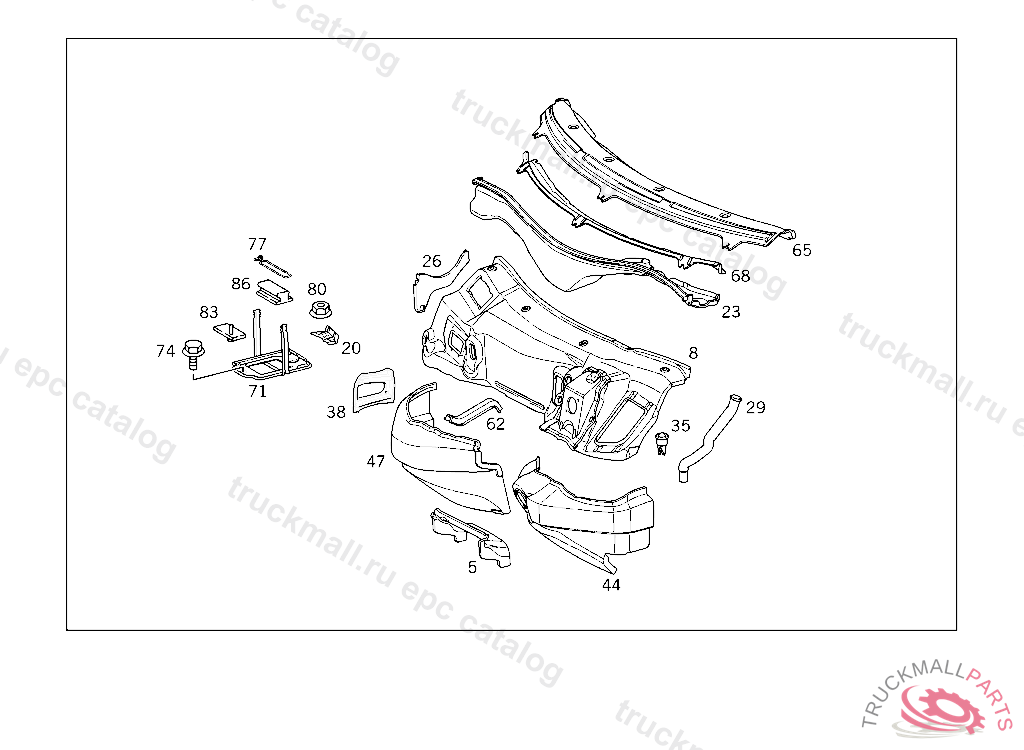

Поз.
Артикул
Описание
5
CONNECTION BETWEEN COWL AND FIRE WALL,TUNNEL AREA, NO LONGER AVAILABLE
8
FRONT PANEL CENTRAL
8
FRONT PANEL CENTRAL
20
BRACKET BATTERY FRAME TO FIRE WALL
20
BRACKET BATTERY FRAME TO FIRE WALL
23
DUCT FRESH AIR DUCT, THEFT-RELEVANT PART
23
DUCT FRESH AIR DUCT, THEFT-RELEVANT PART
26
PARTITION PANEL AIR DUCT
26
PARTITION PANEL AIR DUCT
29
DRIP MOULDING RIGHT,F 093638
29
DRIP MOULDING RIGHT,F 093639
29
DRIP MOULDING LEFT
29
DRIP MOULDING RIGHT,F 093638
29
DRIP MOULDING RIGHT,F 093639
35
DRIP MOULDING FIRE WALL,CENTER 36 MM
38
BRACING PEDAL UNIT
38
BRACING PEDAL UNIT
44
FRONT PANEL BOTTOM LEFT
44
FRONT PANEL BOTTOM LEFT
47
FRONT PANEL BOTTOM RIGHT
47
FRONT PANEL BOTTOM RIGHT
62
BRACKET LEFT, NO LONGER AVAILABLE
62
BRACKET RIGHT
65
CROSS MEMBER BELOW WINDSHIELD,BOTTOM
68
CROSS MEMBER BELOW WINDSHIELD,TOP
71
FRAME BATTERY
71
FRAME BATTERY
74
SCREW SPEED SENSOR TO REAR AXLE
74
SCREW PIPE ELBOW TO BRACKET M8X12
77
CLAMP BATTERY MOUNTING
80
NUT , Replaced By: N913023006001
80
NUT , Replaced By: N910112006001
80
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
83
SPACER BATTERY MOUNTING 46+62 AH
86
PAD LOCK BRACKET
