Поз.
Артикул
Описание

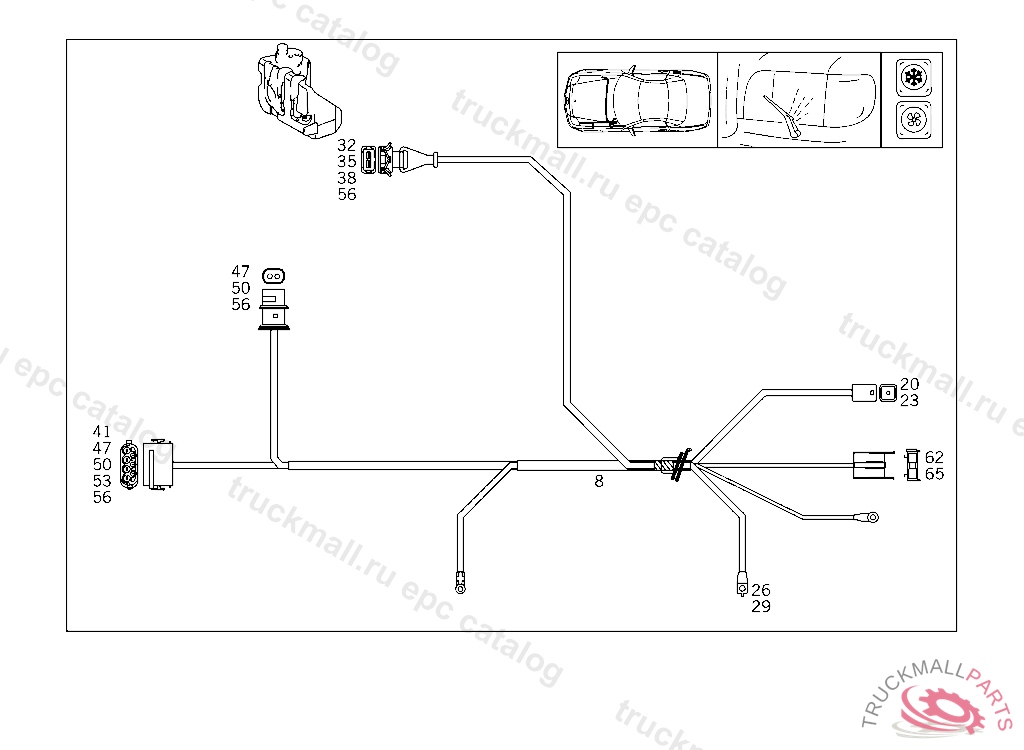

8
CABLE HARNESS AIR CONDITIONER TEMPERATURE, F 080359 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO F 080358 WITH CODE 809
8
CABLE HARNESS TEMPMATIK WITH HEADLAMP CLEANING SYSTEM, F 080358 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM F 080359 WITH CODE 808
8
CABLE HARNESS AIR CONDITIONER TEMPERATURE, F 080359 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO F 080358 WITH CODE 809
8
CABLE HARNESS TEMPMATIK WITH HEADLAMP CLEANING SYSTEM, F 080358 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM F 080359 WITH CODE 808
8
CABLE HARNESS , Replaced By: A1705409505
8
CABLE HARNESS , Replaced By: A1705409605
20
PLUG HOUSING
23
PLUG PIN0.5-2.0 MM2
26
PIN BUSHING HOUSING CONTROL UNIT, A 394035 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 WITH CODE 807
29
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
32
PLUG INJECTION VALVE
32
PIN BUSHING HOUSING WINDSHIELD WASHER PUMP,2-POLE, A 698508 X 012426 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
35
CONTACT SPRING , Replaced By: A0115457626
38
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
41
PLUG HOUSING CONTROL UNIT,ADDITIONAL FAN, 7-POLE
47
CONTACT SPRINGTO 657 540 50 10
50
ROUND PIN BUSHING4,0-6,0MM2, TO 168 545 01 28, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
53
WIRE SEAL
56
GASKET6.0 MM2
62
FUSE BOX PREFUSE BOX REAR F33
65
FEMALE CONTACT. ROUND PIN BUSHING4,0-6,0 MM2
