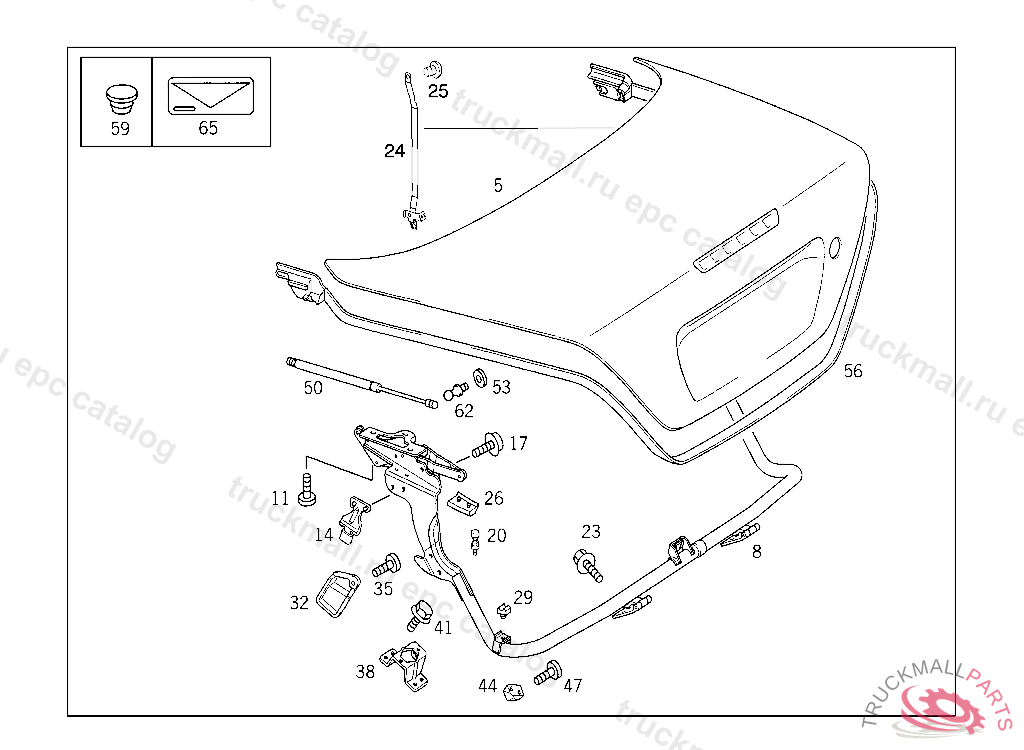

Поз.
Артикул
Описание
5
REAR LID , F 080359 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO F 080358 WITH CODE 809
5
REAR LID , F 080358 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM F 080359 WITH CODE 808, Replaced By: A1707500775
8
FRAME TRUNK LID FUNCTION
11
SCREW TRUNK LID TO TUBULAR FRAME
14
BRACKET RIGHT AN ROHRRAHMEN
14
BRACKET LEFT AN ROHRRAHMEN
17
SCREW BRACKET TO WHEELHOUSE
17
SCREW LOCKING CLAMP TO REAR LID
20
BUFFER LEFT, FROM CHASSIS: 010 077937
23
SCREW TRUNK LID TO TUBULAR FRAME
24
BRACKET CABLE RAIL
25
SCREW. BOLT CABLE RAIL TO BRACKET
26
FILLER RIGHT,TO HINGE BASE PLATE
26
FILLER LEFT,TO HINGE BASE PLATE
29
STOP TO TUBULAR FRAME
32
GUIDE RIGHT, AT WHEELHOUSE
32
GUIDE LEFT, AT WHEELHOUSE
35
SCREW PANELLING TO BUMPER
35
SCREW LOCKING CLAMP TO REAR LID
38
CONSOLE WHEELHOUSE
41
SCREW LOCKING CLAMP TO REAR LID
41
SCREW BRACKET TO WHEELHOUSE
44
STOP LEFT, ON TRUNK LID
44
STOP RIGHT, ON TRUNK LID
47
SCREW STOP TO BEARING BRACKET M 6X12,781683, 10/50820177, 20/60
50
PNEUMATIC-SPRING. GAS-OPERATED SPRING REAR LID
53
WASHER , Replaced By: N000125008443
53
WASHER EXHAUST MUFFLER TO STRAP
56
SEAL ON REAR LID
59
PLUG
59
EXPANSION PLUG , Replaced By: N915042006000
62
BALL PIVOT LEVER
65
GUIDE SIGN SHELL-TYPE HANDLE
65
GUIDE SIGN , Replaced By: A1708172620
