Поз.
Артикул
Описание

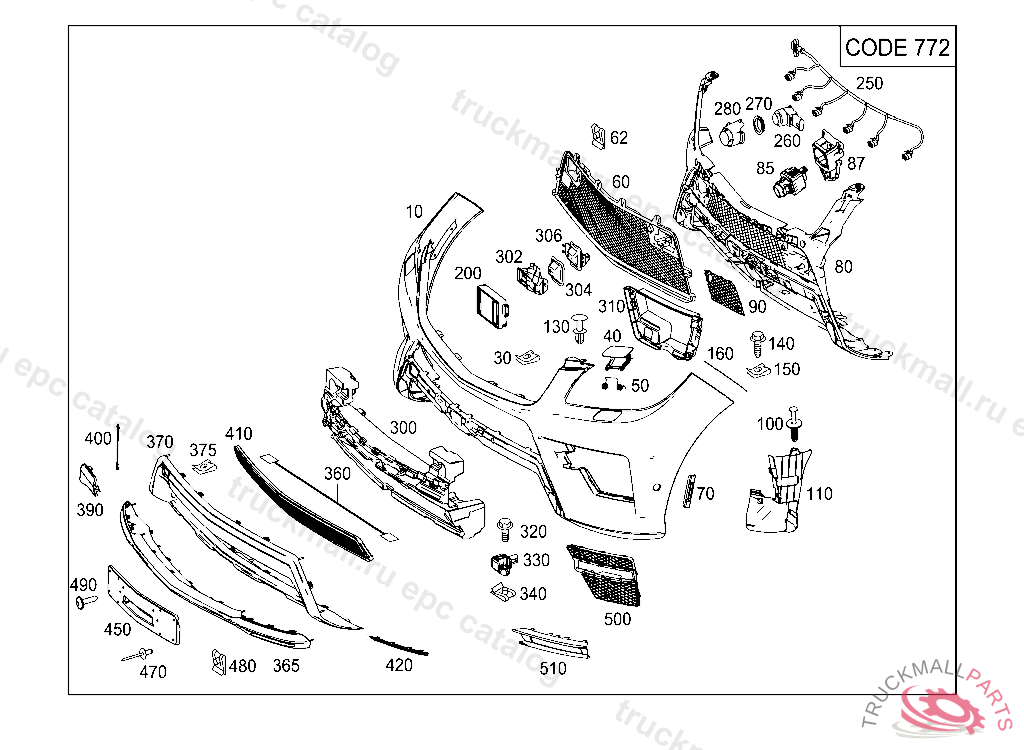

10
TRIM BUMPER FRONT TOP, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
10
TRIM BUMPER FRONT TOP, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
10
TRIM BUMPER FRONT TOP, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
10
TRIM BUMPER FRONT TOP, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
10
TRIM BUMPER FRONT TOP, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
10
TRIM BUMPER FRONT TOP, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
10
TRIM BUMPER FRONT TOP, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
10
TRIM BUMPER FRONT TOP, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
30
LOCK NUT BRACKET TO RIGHT FRONT SIDE MEMBER ST 4.8/2.5-5.0 MM
40
COVER HEADLAMP CLEANING RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
40
COVER HEADLAMP CLEANING LEFT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT166L9000 COLORLESS
50
SPRING HEADLAMP CLEANING SYSTEM
80
BASIC MOUNTING FOR BUMPER CENTRAL, A 01447020110930802
80
BASIC MOUNTING FOR BUMPER CENTRAL, A 01447020110930802
80
BASIC MOUNTING FOR BUMPER CENTRAL
80
BASIC MOUNTING FOR BUMPER CENTRAL
80
BASIC MOUNTING FOR BUMPER CENTRAL
80
BASIC MOUNTING FOR BUMPER CENTRAL
85
CAMERA IN FRONT BUMPER, L 00000120110901 M 00000120110901, Replaced By: A0009053902
85
CAMERA 360 DEGREE VIEW SYSTEM AT REAR
87
BRACKET CAMERA, A 01447020110930802
87
BRACKET CAMERA, A 01447020110930802
90
COVER BUMPER AREA RIGHT
90
COVER BUMPER AREA LEFT
90
COVER BUMPER AREA LEFT
90
COVER BUMPER AREA RIGHT
90
COVER BUMPER AREA LEFT
90
COVER BUMPER AREA RIGHT
100
RIVET COVERING TO SIDE MEMBER
110
COVER BUMPER AREA RIGHT
110
COVER BUMPER AREA LEFT
130
EXPANSION RIVET FASTENING FOR LINING, A 08055020121130
140
TAPPING SCREW
150
LOCK NUT. SPRING NUT HEADLINER TO BODY
160
INTERMEDIATE LAYER RIGHT
160
INTERMEDIATE LAYER LEFT
200
RADAR SENSOR PROXIMITY-CONTROLLED CRUISE CONTROL, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
200
RADAR SENSOR PROXIMITY-CONTROLLED CRUISE CONTROL, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
250
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
250
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
250
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
250
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
250
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
250
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
260
SENSOR CENTRAL, TO BE PAINTED PRIOR TO INSTALLATION
260
SENDER UNIT OUTSIDE, J 53092220070910808 TO BE PAINTED PRIOR TO INSTALLATION
270
SPACER RING PARKTRONIC SYSTEM
280
COVER LEFT AND RIGHT
300
IMPACT ABSORBER CENTRAL
300
IMPACT ABSORBER CENTRAL
300
IMPACT ABSORBER CENTRAL
302
BRACKET , A 13822220120928
304
REINFORCEMENT , A 13822220120928
306
BRACKET , A 13822220120928
320
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
330
ACCELERATION SENSOR RELEASE DEVICE AT B-PILLAR, BOTTOM A53, A54
340
LOCK NUT. SPRING NUT STEP TO ENTRANCE
360
ELECTRICAL WIRING HARNESS CAMERA, A 15452320130510
360
ELECTRICAL WIRING HARNESS CAMERA, A 20130429
360
ELECTRICAL WIRING HARNESS RADAR SENSOR
360
ELECTRICAL WIRING HARNESS
360
ELECTRICAL WIRING HARNESS CAMERA, A 20130429
360
ELECTRICAL WIRING HARNESS ACCELERATION SENSOR
360
ELECTRICAL WIRING HARNESS CAMERA, A 15452320130510
370
TRIM BUMPER CHROME, Replaced By: A1668857925
370
TRIM BUMPER CHROME, Replaced By: A1668858025
370
TRIM BUMPER CHROME
370
TRIM BUMPER CHROME
370
TRIM BUMPER CHROME
370
TRIM BUMPER FRONT BOTTOM
375
LOCK NUT BRACKET TO RIGHT FRONT SIDE MEMBER ST 4.8/2.5-5.0 MM
375
SPRING NUT FASTENING FOR LINING
390
COVER TOWING EYE TOWING EYE
390
COVER TOWING EYE TOWING EYE
390
COVER TOWING EYE TOWING EYE, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 04698720120130, Replaced By: A1668851823
400
CHECK STRAP TOWING EYE
400
REBOUND STRAP FLAP FOR TOW HOOK
410
TRIM BUMPER FRONT BOTTOM
450
LICENSE PLATE MOLDING
450
LICENSE PLATE MOLDING
450
LICENSE PLATE MOLDING
450
LICENSE PLATE MOLDING
450
LICENSE PLATE MOLDING
450
LICENSE PLATE MOLDING
450
LICENSE PLATE MOLDING
470
RIVET
480
LOCK NUT. SPRING NUT STEP TO ENTRANCE
500
COVER LEFT
500
COVER BUMPER AREA LEFT
500
COVER RIGHT, A 13822120120928
500
COVER BUMPER AREA RIGHT
510
ORNAMENTAL MOLDING LEFT
510
ORNAMENTAL MOLDING RIGHT
510
ORNAMENTAL MOLDING RIGHT
510
ORNAMENTAL MOLDING LEFT
