Поз.
Артикул
Описание
10

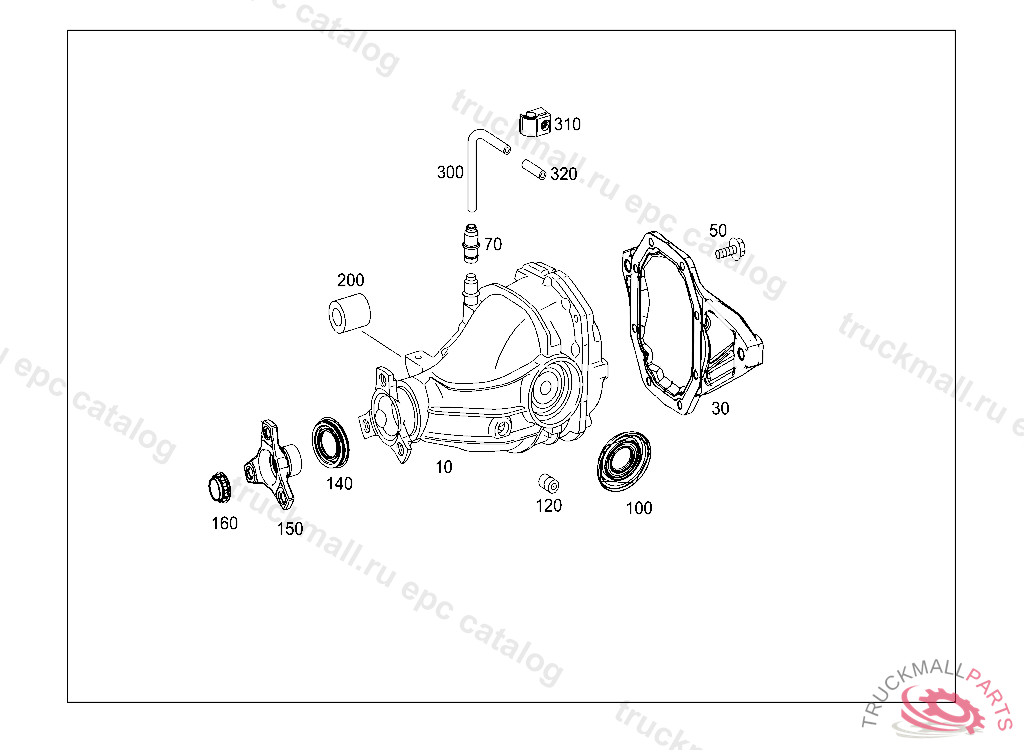

REAR AXLE DIFFERENTIAL
30
END COVER
50
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
70
VENTILATION NECK , Replaced By: A1663510265
100
SEAL RING LEFT AND RIGHT AXLE SHAFT, IMPORTANT: SEALING RING AND PROTECTIVE RING MUST ALWAYS BE EXCHANGED TOGETHER!
120
SCREW PLUG BELL HOUSING
140
SEAL RING FLANGE
150
FLANGE110 MM
160
NUT JOINT FLANGE M29X1.5
200
BEARING REAR AXLE HOUSING WITH DIFFERENTIAL
300
PLASTIC PIPE AERATION, ORDER BY THE METER
310
CLAMP , Replaced By: A0009957465
320
HOSE GEAR CASE BREATHING 90°
320
HOSE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE,C 013142SIEHE KG 15
