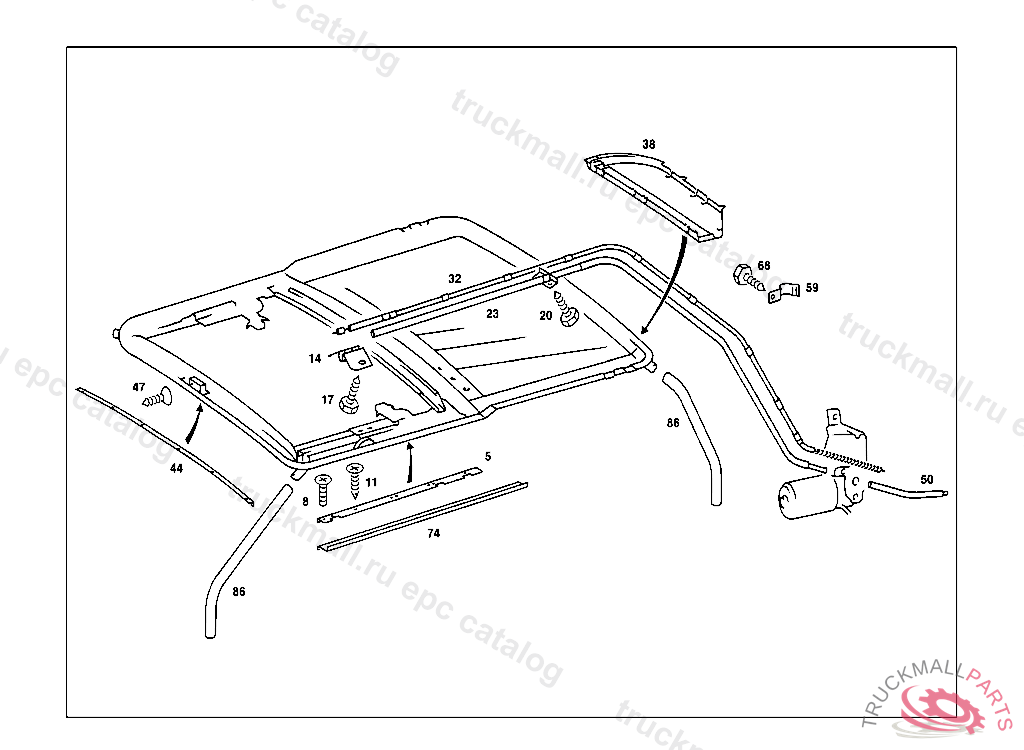

Поз.
Артикул
Описание
5
SLIDING RAIL FRONT LEFT
5
SLIDING RAIL FRONT RIGHT
8
SCREW
11
SCREW
11
SCREW , Replaced By: A1409900436
14
SHACKLE AT TRANSPORT BRIDGE
17
SCREW SHACKLE TO BRIDGE
20
SCREW
23
TUBE FROM MOTOR TO SLIDING ROOF PLATE
32
CABLE FROM MOTOR TO SLIDING ROOF PLATE
38
COVERING BETWEEN FRAME WITH DRAFT DEFLECTOR AND REAR ROOF RAIL
44
COVER RAIL
47
SHEET METAL SCREW
50
TUBE AT MOTOR
59
CLAMP TUBE TO REAR PILLAR
68
SHEET METAL SCREW BRACKET TO CAB FLOOR
74
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, LEFT
74
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, RIGHT
86
HOSE WATER DRAIN,FRONT 1100 MM, TO BE ADAPTED DURING ASSEMBLY
999
CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 555515, F 718210, Replaced By: A1247801489
999
HOSE , Replaced By: A1247820796
