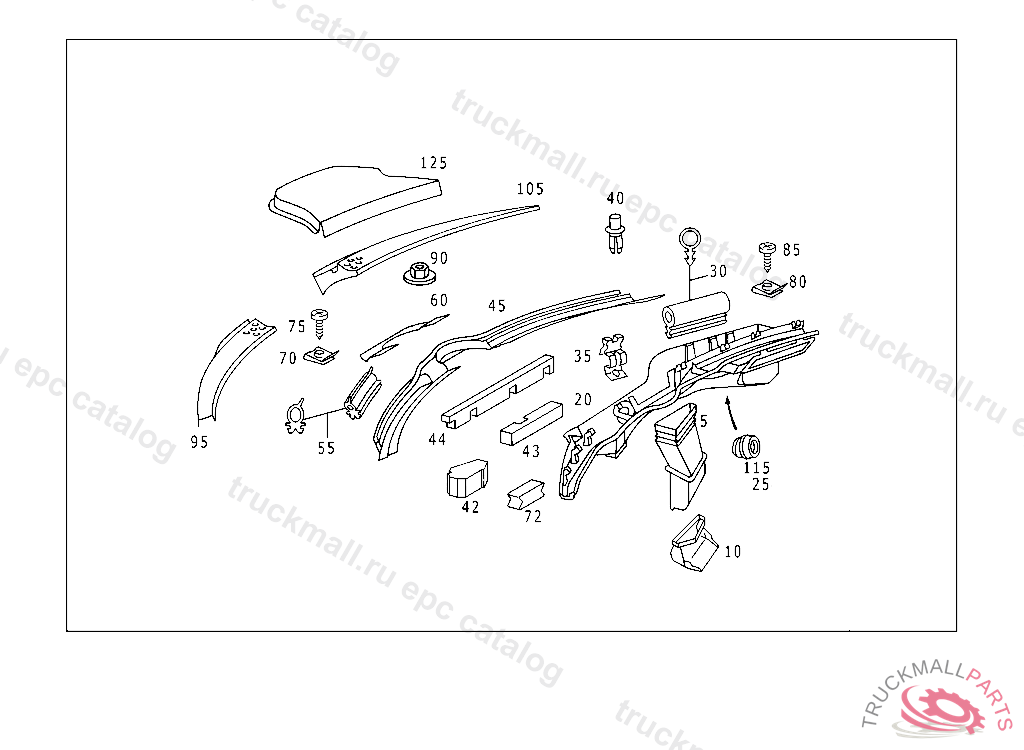

Поз.
Артикул
Описание
5
PIPE SOCKET BELOW AIR/WATER DUCT
5
PIPE SOCKET BELOW AIR/WATER DUCT
20
AIR DUCT AIR/WATER DUCT
20
AIR DUCT AIR/WATER DUCT
25
VALVE WATER DRAIN
30
SEAL
35
CLIP
40
RIVET AIR/WATER DUCT TO CROSS MEMBER, 1B63
42
SEAL AIR/WATER DUCT
43
SEAL AIR/WATER DUCT
44
FILTER
45
COVERING ,F 747376
45
COVERING , A 644282 F 747377
45
COVERING
55
SEAL AIR/WATER DUCT
60
COVERING BELOW WIPER GEARING HEAD,CENTRAL
60
COVERING BELOW WIPER GEARING HEAD,CENTRAL
70
LOCK
72
STRIP BRACING BETWEEN CROSS MEMBER AND WINDSHIELD
72
PAD GLASS BRACING BELOW WINDSHIELD
75
SHEET METAL SCREW WATER BAFFLE TO CROSS MEMBER,A 166302
75
SHEET METAL SCREW WATER BAFFLE TO CROSS MEMBER,A 166302
80
LOCK PROTECTIVE GRILLE
85
SHEET METAL SCREW WATER BAFFLE TO CROSS MEMBER,A 166302
85
SHEET METAL SCREW WATER BAFFLE TO CROSS MEMBER,A 166302
90
FASTENER BUTTON INSULATION TO PARTITION PANEL,RIGHT
95
SCREEN LEFT AIR/WATER DUCT
95
SCREEN LEFT AIR/WATER DUCT
105
SCREEN RIGHT AIR/WATER DUCT
105
SCREEN RIGHT AIR/WATER DUCT
115
VALVE WATER DRAIN
125
COVERING COVERING OVER ELECTRONICS, A 436535 F 483847 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 436536, F 483848 WITH CODE 806
125
COVERING COVERING OVER ELECTRONICS, A 436535 F 483847 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 436536, F 483848 WITH CODE 806
