Поз.
Артикул
Описание

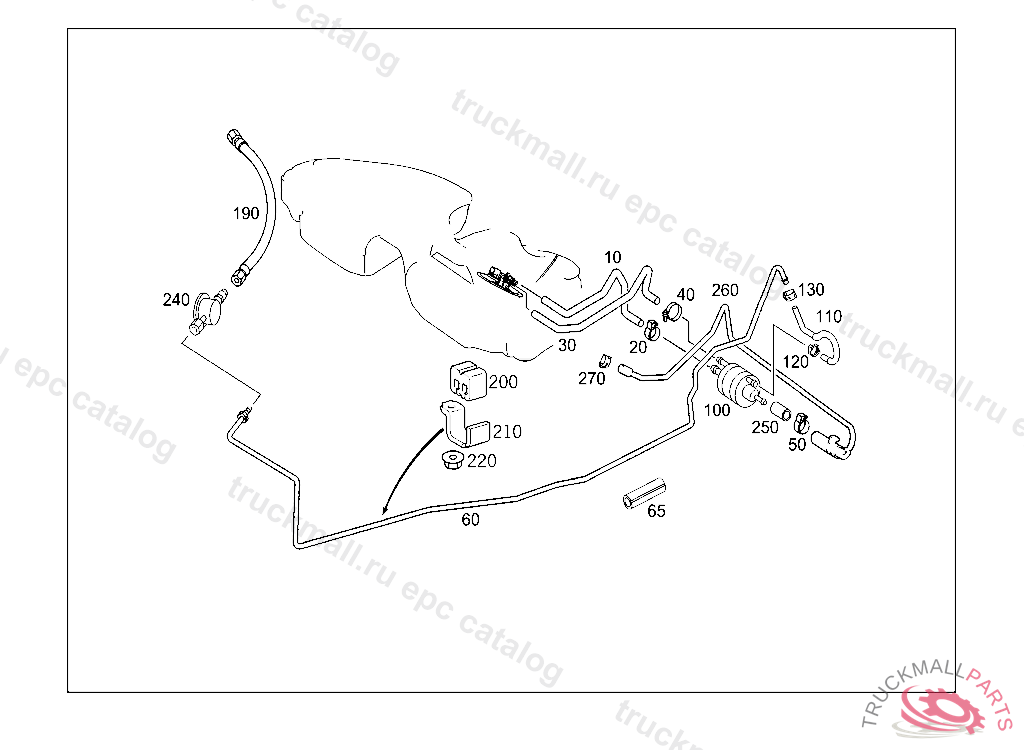

10
LINE SUPPLY FROM TANK, A 93693820060831M936858937012937165
10
LINE
10
FUEL LINE SUPPLY FROM TANK, A 93693820060831M936858937012937165, Replaced By: A2034701964
20
HOSE CLAMP HOSE ATTACHMENT
30
LINE RETURN TO FUEL TANK
30
LINE RETURN, Replaced By: A2034701664
30
FUEL LINE RETURN
40
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
50
LOOM TIE. CLIP
60
LINE FEED, A 88072320051130 E 02000020070101
60
LINE FEED, F 58363320040606
60
FUEL FEED LINE FEED, A 67972320040604 A 88072220051130, Replaced By: A2034704064, +008A0009954075, +008A2014760840
100
FUEL FILTER FUEL FILTER TO TANK
100
FUEL FILTER FUEL FILTER TO TANK, A 93693820060831M936858937012937165
110
HOSE FUEL FILTER TO SUPPLY LINE
120
HOSE CLAMP HOSE ATTACHMENT
130
HOSE CLAMP HOSE ATTACHMENT
190
FUEL HOSE FROM FEED LINE TO ENGINE
200
SPACER FUEL LINE TO SIDE MEMBER
200
RUBBER GUIDE AC WIRING
210
FASTENING CLAMP FUEL LINE TO SIDE MEMBER
220
NUT COVERING TO CAB FIRE WALL
250
FUEL HOSE TO FUEL FILTER 1000 MM, ORDER BY THE METER
260
LINE PRESSURE DIFFERENTIAL LINE ON TANK
270
HOSE CLAMP HOSE ATTACHMENT
