Mercedes
CAR
C 320 4MATIC
203.084
92 REAR SEAT BENCH
011 REAR SEAT CUSHION,FOLDING REAR SEAT

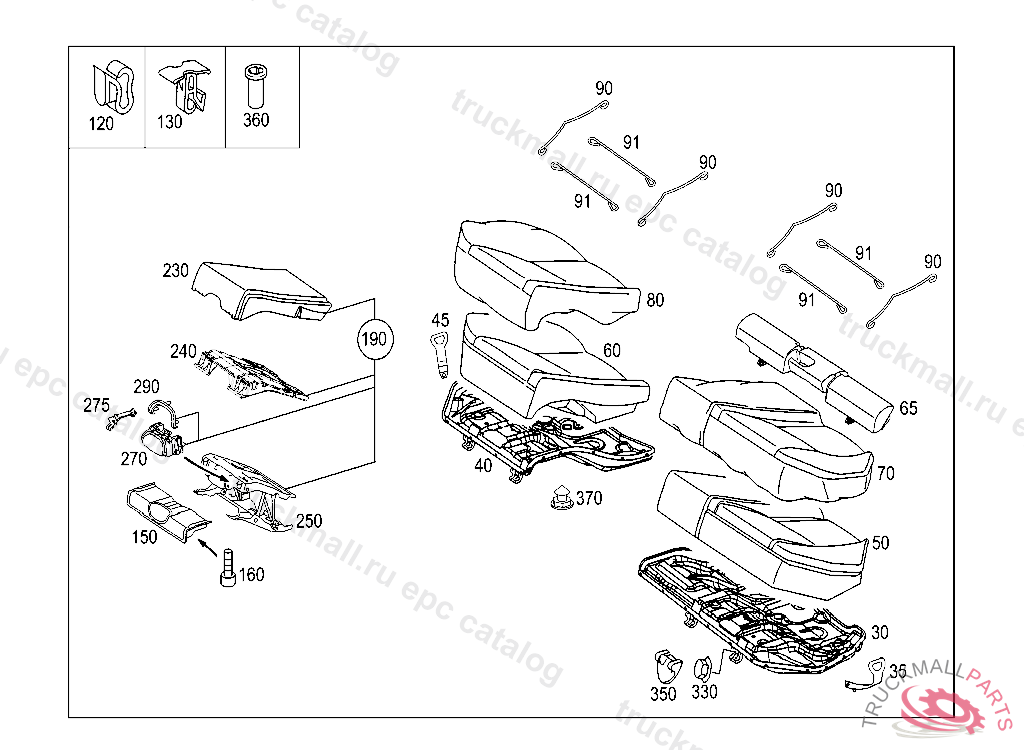

C 320 4MATIC - 203.084 - 92 REAR SEAT BENCH

Поз.
Артикул
Описание
30
A2039200122
CUSHION FRAME LEFT
30
A2039200722
CUSHION FRAME LEFT
35
A2039201172
LOCKING MECHANISM LEFT CUSHION FRAME
40
A2039200822
CUSHION FRAME RIGHT
40
A2039200222
CUSHION FRAME RIGHT
45
A2039201272
LOCKING MECHANISM RIGHT CUSHION FRAME
50
A2039200950
REST LEFT
50
A2039201150
REST LEFT
50
A2039201750
REST LEFT
60
A2039201050
REST RIGHT
60
A2039201850
REST RIGHT
60
A2039201250
REST RIGHT
65
A2039203708
PAD LEFT
65
A2039203108
PAD LEFT
65
A2039200508
PAD LEFT
65
A2039200608
PAD LEFT
65
A2039201408
PAD LEFT
65
A2039202308
PAD LEFT
65
A2039203208
PAD LEFT
65
A2039200708
PAD LEFT
70
A2039202761
COVER LEFT
70
A2039207546
COVER LEFT
70
A2039207961
COVER LEFT
70
A2039203546
COVER LEFT
70
A2039204361
COVER LEFT
70
A2039206946
COVER LEFT
70
A2039203561
COVER LEFT
70
A2039206161
COVER LEFT
70
A2039203346
COVER LEFT
70
A2039207146
COVER LEFT
70
A2039203161
COVER LEFT
70
A2039203146
COVER LEFT
70
A2039206346
COVER LEFT, F 59396620040531805 9C65 681A QFT203A2003 ANTHRACITE
70
A2039204346
COVER LEFT
70
A2039202561
COVER LEFT
70
A2039202146
COVER LEFT
70
A2039204146
COVER LEFT
70
A2039203761
COVER LEFT
70
A2039201746
COVER LEFT
70
A2039206961
COVER LEFT
70
A2039208546
COVER LEFT
70
A2039202161
COVER LEFT
70
A2039202361
COVER LEFT
70
A2039204561
COVER LEFT
70
A2039201946
COVER LEFT
70
A2039200161
COVER LEFT
70
A2039200361
COVER LEFT
70
A2039208746
COVER LEFT
70
A2039202961
COVER LEFT
70
A2039203361
COVER LEFT
70
A2039206546
COVER LEFT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
70
A2039203961
COVER LEFT
70
A2039204161
COVER LEFT
70
A2039203946
COVER LEFT
70
A2039207346
COVER LEFT
70
A2039206561
COVER LEFT
70
A2039201961
COVER LEFT
70
A2039203746
COVER LEFT
80
A2039204061
COVER RIGHT
80
A2039204446
COVER RIGHT
80
A2039203661
COVER RIGHT
80
A2039202661
COVER RIGHT
80
A2039206646
COVER RIGHT, F 59396620040531805 9C65 681A QFT203A2003 ANTHRACITE
80
A2039203261
COVER RIGHT
80
A2039202861
COVER RIGHT
80
A2039204461
COVER RIGHT
80
A2039202046
COVER RIGHT
80
A2039203246
COVER RIGHT
80
A2039203646
COVER RIGHT
80
A2039206461
COVER RIGHT
80
A2039202061
COVER RIGHT
80
A2039201446
COVER RIGHT
80
A2039208046
COVER RIGHT
80
A2039206446
COVER RIGHT, F 59396620040531805 9C65 681A QFT203A2003 ANTHRACITE
80
A2039201846
COVER RIGHT
80
A2039207246
COVER RIGHT
80
A2039203446
COVER RIGHT
80
A2039206861
COVER RIGHT
80
A2039208061
COVER RIGHT
80
A2039204246
COVER RIGHT
80
A2039203861
COVER RIGHT
80
A2039203461
COVER RIGHT
80
A2039207646
COVER RIGHT
80
A2039204046
COVER RIGHT
80
A2039201861
COVER RIGHT
80
A2039200261
COVER RIGHT, E 01261920020830 A 43949820020906 F 34460520020910 R 08212620020930 E 01938620050630805
80
A2039204261
COVER RIGHT
80
A2039202461
COVER RIGHT
80
A2039208646
COVER RIGHT
80
A2039202261
COVER RIGHT
80
A2039200461
COVER RIGHT, E 01261920020830 A 43949820020906 F 34460520020910 R 08212620020930 E 01938620050630805
80
A2039203846
COVER RIGHT
80
A2039204661
COVER RIGHT
80
A2039203061
COVER RIGHT
80
A2039207046
COVER RIGHT
80
A2039207446
COVER RIGHT
90
A1239241029
BRACKET
90
A1409242529
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
91
A2019240729
BRACKET SEAT COVER MOUNTING,LONGITUDINAL, USED WITH LEATHER TRIM
91
A2029240529
BRACKET SEAT COVER MOUNTING,TRANSVERSE
91
A2039140329
CLAMP COVER STITCHING 285 MM
120
A1409883778
CLIP
120
A2019882278
CLIP SEAT COVER MOUNTING,TRANSVERSE
130
A2039880078
CLIP TRANSVERSAL TACKING
150
A2039200317
FOOT REST RIGHT
160
N000000001151
HEXALOBULAR BOLT. SCREW HAND BRAKE VALVE TO BRACKET M 8X12
160
A0019845529
BOLT. SCREW
190
A2039205853
SEAT BOX RIGHT
190
A2039205153
SEAT BOX LEFT
190
A2039206321
SEAT BOX LEFT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
190
A2039208621
SEAT BOX RIGHT
190
A2039205821
SEAT BOX RIGHT
190
A2039208521
SEAT BOX LEFT
190
A2039205253
SEAT BOX RIGHT
190
A2039206621
SEAT BOX RIGHT
190
A2039206421
SEAT BOX RIGHT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
190
A2039206121
SEAT BOX LEFT
190
A2039205753
SEAT BOX LEFT
190
A2039205921
SEAT BOX LEFT
190
A2039206021
SEAT BOX RIGHT
190
A2039205453
SEAT BOX RIGHT
190
A2039208421
SEAT BOX RIGHT
190
A2039208321
SEAT BOX LEFT
190
A2039205721
SEAT BOX LEFT
190
A2039205353
SEAT BOX LEFT
190
A2039206221
SEAT BOX RIGHT
190
A2039206521
SEAT BOX LEFT
230
A2039240114
REST SEAT BOX,RIGHT
240
A2039220157
SEAT SHELL SEAT BOX,LEFT
250
A2039200287
BACKREST ADJUSTER RIGHT
250
A2039200187
BACKREST ADJUSTER LEFT
270
A2039201072
LOCKING MECHANISM BACKREST ADJUSTER RIGHT
275
A2119290059
LATCH RIGHT
290
A2039240037
COVER LOCK RIGHT
330
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
330
N913023008003
NUT HORN TO BRACKET M8
350
A2039220030
COVER MOUNTING TO FLOOR
360
A2039880081
PUSH BUTTON
370
A2039220052
PIN
