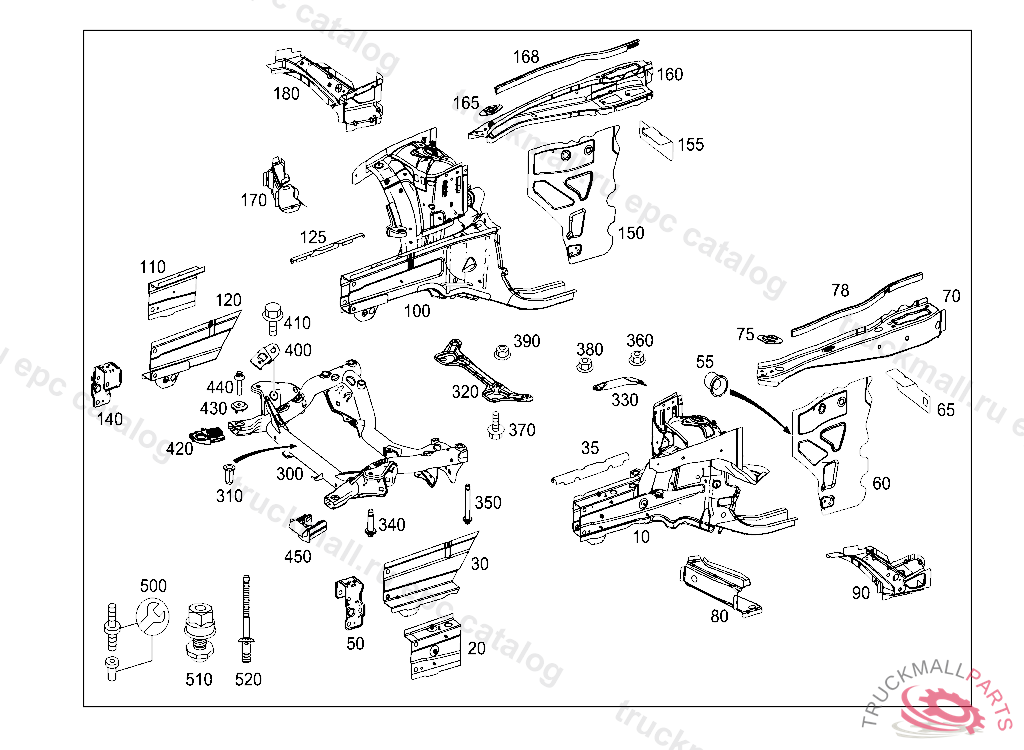

Поз.
Артикул
Описание
10
SIDE MEMBER LEFT, F 53236820100412MF 502825
10
WHEEL HOUSE LEFT, L 03887520100401 V 00243120100401 A 50752820101231 F 62949620101231 L 12864620101231
10
LONGITUDINAL MEMBER LEFT, L 03887520100401 V 00243120100401, Replaced By: A2046200150
20
COVER LONGITUDINAL MEMBER LEFT, F 53236920100408 P F 502825
20
COVER LEFT
30
SIDE MEMBER LEFT
35
ANGLE RIGHT SIDE MEMBER
50
BRACKET LEFT
55
PROTECTIVE CAP GROUND CONNECTION
60
STRIKING PLATE LEFT, Replaced By: A2046200587
60
LONGITUDINAL MEMBER LEFT
65
BRACKET LEFT REAR FENDER
70
LONGITUDINAL MEMBER TOP LEFT
75
PLATE ON CARRIER AT TOP LEFT
78
SEAL LEFT UPPER CARRIER
80
CROSS MEMBER LEFT, PEDAL FLOOR PANEL
90
STRUT LEFT
100
WHEEL HOUSE RIGHT
100
SIDE MEMBER RIGHT, Replaced By: A2046200250
110
COVER RIGHT
120
SIDE MEMBER RIGHT
125
ANGLE RIGHT SIDE MEMBER
140
BRACKET RIGHT
140
BRACKET RIGHT, Replaced By: A2046201914
150
STRIKING PLATE RIGHT, Replaced By: A2046200687
150
LONGITUDINAL MEMBER RIGHT
155
BRACKET RIGHT REAR FENDER
160
LONGITUDINAL MEMBER TOP RIGHT
165
PLATE ON CARRIER AT TOP LEFT
168
SEAL RIGHT UPPER CARRIER
170
CROSS MEMBER RIGHT, PEDAL FLOOR PANEL
180
STRUT RIGHT
300
INTEGRAL CARRIER , Replaced By: A2046280957
300
SUPPORT INTEGRAL SUPPORT, Replaced By: A2046280757
300
INTEGRAL CARRIER
300
INTEGRAL CARRIER
300
INTEGRAL CARRIER
310
BLIND CLINCH NUT IN FRAME-TYPE INTEGRAL SUPPORT M10
320
MOUNTING PLATE STEERING TO FRAME-TYPE INTEGRAL SUPPORT
320
PLATE STEERING TO FRAME-TYPE INTEGRAL SUPPORT
330
SUPPORT INTEGRAL SUPPORT
340
BOLT FRONT FRAME-TYPE INTEGRAL SUPPORT M14X1,5-SGX50
350
BOLT REAR FRAME-TYPE INTEGRAL SUPPORT M14X1,5-SGX100
360
NUT BRACKET TO SIDE MEMBER M12X1.5
360
HEXALOBULAR BOLT SUPPORTING STRUT AT BRACKET AT RIGHT BOTTOM M12X1,5X30
370
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
370
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
380
NUT BRACKET TO SIDE MEMBER M12X1.5
450
DEFLECTOR RAMP LEFT
450
DEFLECTOR RAMP RIGHT
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
WELD STUD GROUND CONNECTION M6
510
WELD STUD GROUND CONNECTION M8
520
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
