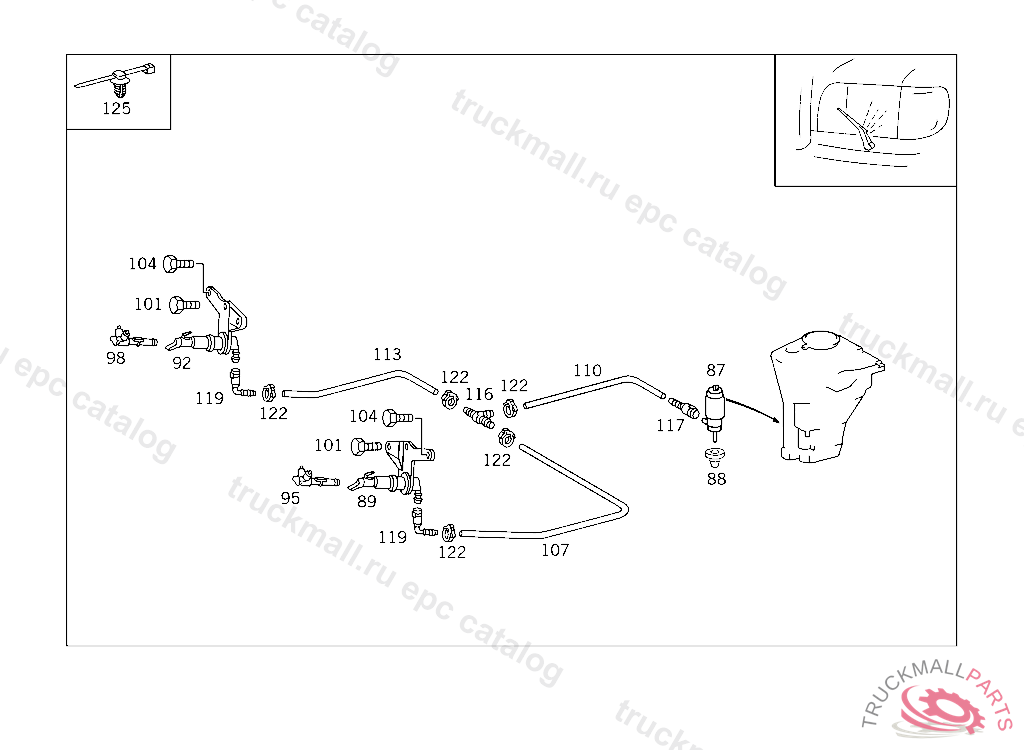

Поз.
Артикул
Описание
87
PUMP HEADLAMP WIPER/WASHER, F 046207 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM F 046208 WITH CODE 808
87
PUMP HEADLAMP WIPER/WASHER, F 046207 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM F 046208 WITH CODE 808
87
PUMP HEADLAMP CLEANING SYSTEM
88
GROMMET FROM PUMP INTO RESERVOIR
88
GROMMET HEADLAMP WIPER/WASHER, Replaced By: A0109971181
89
DRIVE LEFT
92
DRIVE RIGHT
95
NOZZLE LEFT
98
NOZZLE RIGHT
101
SCREW COVERING TO FRONT BUMPER
104
SCREW HEADLAMP WIPER/WASHER
107
HOSE LEFT
107
HOSE , Replaced By: A2108690594
110
HOSE , Replaced By: A2108690594
110
HOSE LEFT
113
HOSE CONNECTING HOSE, TO BE ADAPTED DURING ASSEMBLY
116
DISTRIBUTOR FROM REFILLING LINE TO HOSE
117
CLUTCH TELESCOPIC NOZZLE, HCS
119
CONNECTOR
122
HOSE CLAMP UPSTREAM OF FLUID RESERVOIR
125
CABLE STRAP LINE MOUNTING 260X3.3MM
125
LOOM TIE , Replaced By: A0059976290
