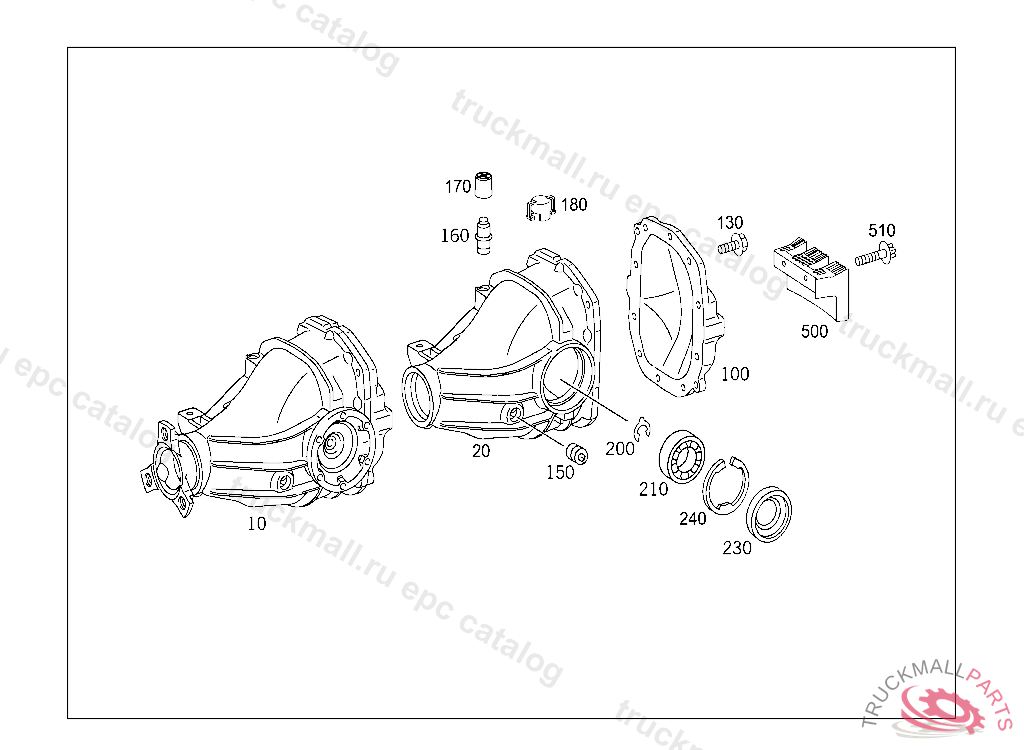

CLK 350 - 209.356 - 35 REAR AXLE

10

AXLE HOUSING REAR AXLE CENTER ASSEMBLY W/O FLANGE 1:2.82, A 74932420041122805 F 67877420050114805 R 18646720050310805 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART

100

COVER END COVER, A 74932420041029805 F 67877420050114805 R 18646720050310805

130

HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25

150

SCREW PLUG BELL HOUSING

160

BREATHER

160

VENTILATION NECK , Replaced By: A1663510265

170

CAP BREATHER

170

BREATHER

230

SEAL RING INTERIOR FLANGE, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
