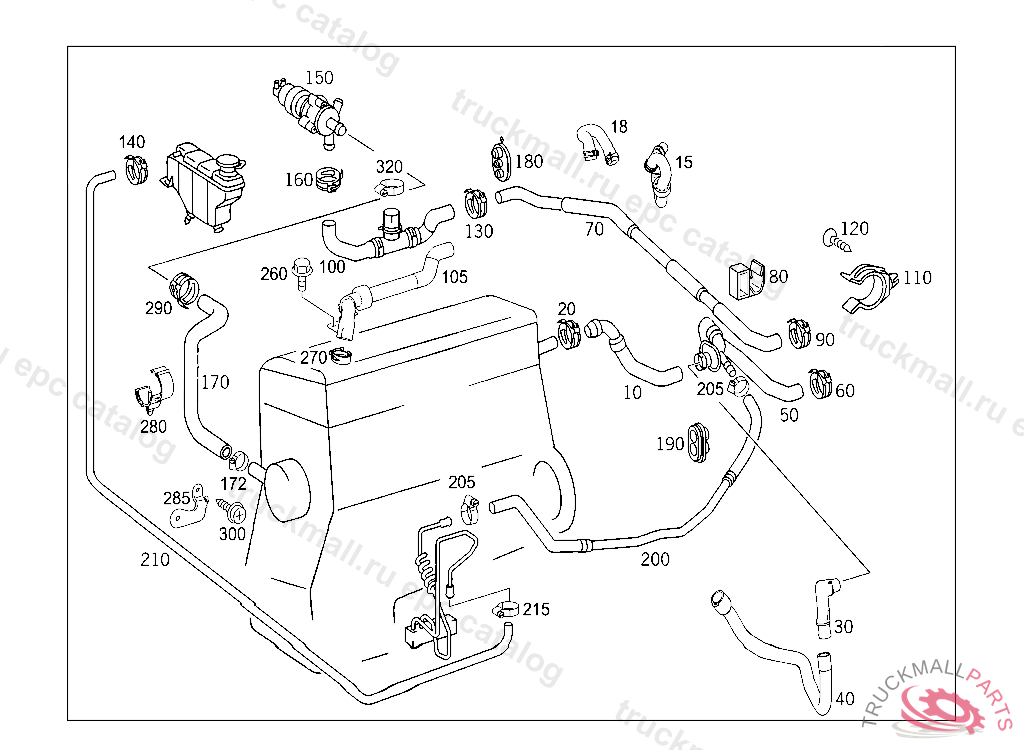

Поз.
Артикул
Описание
10
HOSE ENGINE TO CONNECTING POINT, PARTITION WALL
20
CLAMP25 MM
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER, A 40746320020628
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER, E 01151320020628 A 40746320020628 F 32637520020731
50
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
60
CLAMP25 MM
70
PIPELINE FROM HEAT EXCHANGER TO WATER VALVE
70
PIPELINE FROM HEAT EXCHANGER TO WATER VALVE
80
FUSE. LOCK ACTIVATED CHARCOAL FILTER TO FUEL FILLER NECK, FROM MODEL YEAR '98
90
CLAMP25 MM
100
HOSE RESERVOIR
105
HOSE EXPANSION TANK
130
CLAMP25 MM
150
CIRCULATION PUMP
150
CIRCULATION PUMP
160
CLAMP25 MM
160
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
160
CLAMP HOSE FASTENING 28-35 MM,V 207570
180
CABLE GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL, Replaced By: A0009984802
180
CABLE GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL
180
GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL, Replaced By: A0009983902
190
GROMMET HOSE THRU ENGINE COMPARTMENT PARTITION PANEL
200
PIPELINE BYPASS LINE TO WATER VALVE
200
PIPELINE BYPASS LINE TO WATER VALVE
205
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
210
HOSE FROM RESERVOIR TO PUMP, E 02900020071206808
215
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
320
CLAMP25-40X13 MM
