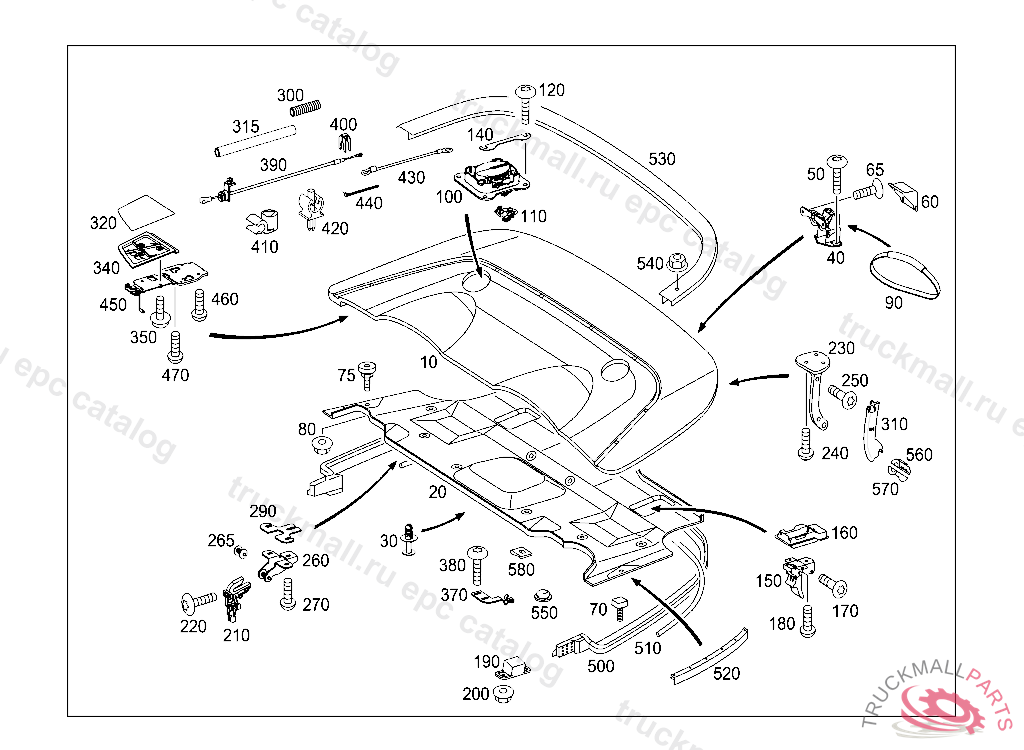

Поз.
Артикул
Описание
10
TRUNK LID FOLDING TOP CASE COVER
20
PANELING ON FOLDING TOP CASE COVER
30
EXPANSION RIVET FRAME BRACKET, J 26440820070611 THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2019900292
40
HINGE SOFT TOP COMPARTMENT LID, LEFT & RIGH
40
HINGE SOFT TOP COMPARTMENT LID, LEFT & RIGH, Replaced By: A2097500521
50
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
60
COVER TO HINGE
65
HEXALOBULAR BOLT BACKREST TO REAR WALL M6X20
70
STOP LEFT
75
STOP RIGHT
80
NUT , Replaced By: N913023006001
90
BAND FOLDING TOP CASE COVER EMERGENCY CONTROL
100
COVER RIGHT
100
COVER LEFT
110
SWITCH
120
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
140
PAD COVERING
150
FRAME TO TIE-DOWN SET
160
FRAME SEGMENT CENTRAL, 7C45QFT209A0100 DEEP GREY
170
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
180
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
190
TRUSS LEFT
190
TRUSS RIGHT
200
NUT COVERING TO CAB FIRE WALL
210
GUIDE
220
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
230
LEVER RIGHT
230
LEVER LEFT
240
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
250
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
260
TAKE-UP DEVICE TAKE-UP DEVICE, T 05605520050531 F 19299020060131
260
FIXTURE TAKE-UP DEVICE, T 05605520050531, Replaced By: A2097500576
265
GUIDE ROLLER TAKE-UP DEVICE, Replaced By: A2097510168
265
ROLLER TAKE-UP DEVICE
270
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
290
PAD TAKE-UP DEVICE
300
DUCT TOP 160 MM
310
BRACKET RIGHT
310
BRACKET LEFT
315
DUCT BOTTOM 390 MM
320
PANELLING LEFT, 9999QFT209L9000 COLORLESS
320
PANELLING RIGHT, 9999QFT209L9000 COLORLESS
340
PANELLING RIGHT
340
PANELLING LEFT
350
SCREW , Replaced By: A1409842829
370
TAKE-UP DEVICE RIGHT HINGE
370
TAKE-UP DEVICE HINGE,LEFT
380
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
390
PULL ON FOLDING TOP CASE COVER
400
LOCK
410
CLIP ATTACHMENT,CONTROL CABLE,ROOF
420
CLIP ATTACHMENT,CONTROL CABLE,ROOF
430
GUIDE
440
CABLE TIE , Replaced By: A0019978390
450
HINGE LEFT OUTSIDE
450
HINGE RIGHT OUTSIDE
460
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
470
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M6X10, Replaced By: A0019844329
500
SEAL
510
SEAL BELOW SEALING FRAME ON SOFT-TOP COMPARTMENT COVER
520
SEAL ON FOLDING TOP CASE COVER
530
GARNISH MOULDING ON FOLDING TOP CASE COVER
540
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
550
EXPANSION PLUG LOCATING HOLE, IN FIREWALL CROSSMEMBER 15.5 MM
560
GUIDE CABLE DUCT
570
GUIDE CABLE DUCT
580
NUT RETAINER
