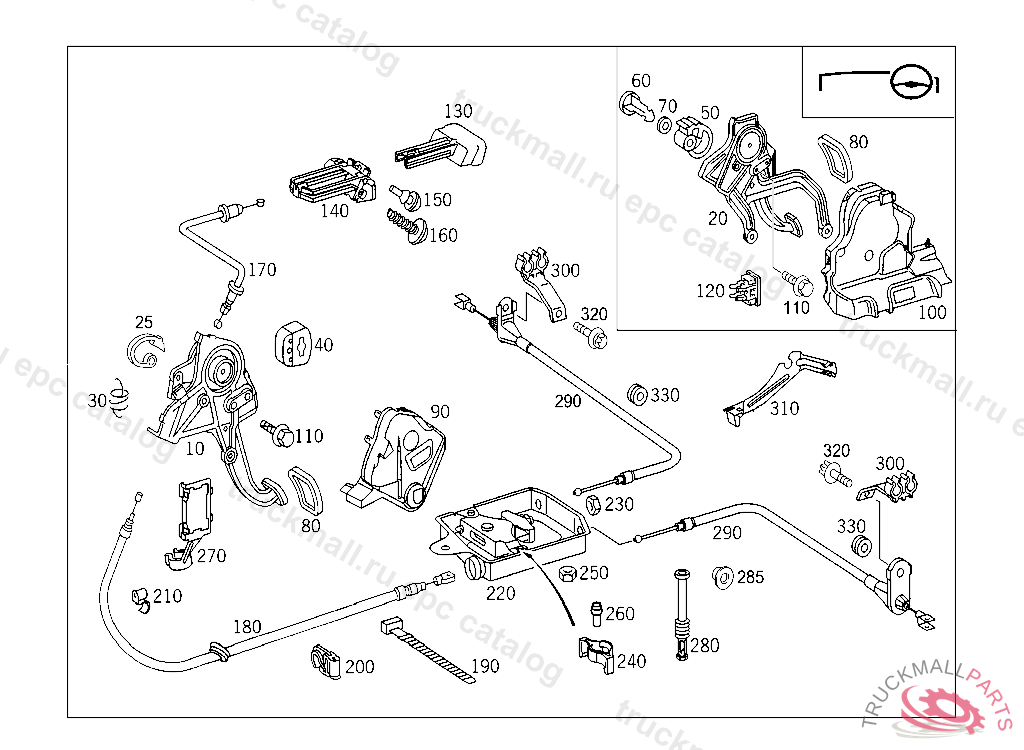

Поз.
Артикул
Описание
10
PARKING BRAKE
20
PARKING BRAKE
25
DETENT GREY, COMPARE NEW PART WITH REMOVED PART
25
DETENT , FROM MODEL YEAR'96
30
SPRING , FROM MODEL YEAR'96
40
STOP , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
50
DETENT , FROM MODEL YEAR'96
50
DETENT GREY, COMPARE NEW PART WITH REMOVED PART
60
PIN , FROM MODEL YEAR'96
70
WASHER PUMP TO CONSOLE
80
PAD PEDAL
80
PAD FOOT OPERATED PARKING BRAKE
90
COVER PARKING BRAKE
100
COVER PARKING BRAKE
110
HEXAGON HEAD BOLT FASTENING, FOOT-OPERATED PARKING BRAKE M8X22
120
FUSE. LOCK PARKING BRAKE SWITCH
130
HANDLE , 7C45020201A/205AQFT203A4600 DEEP GREY
140
GUIDE
150
STOP ARMREST
160
PAN HEAD SCREW. SCREW GROUND CONNECTION
170
BRAKE CABLE RELEASE FOR FOOT OPERATED PARKING BRAKE
170
BRAKE CABLE RELEASE FOR FOOT OPERATED PARKING BRAKE
180
BRAKE CABLE PARKING BRAKE
180
BRAKE CABLE PARKING BRAKE
190
CABLE TIE310X5MM
200
CLAMP FRONT BRAKE CABLE TO TUNNEL
210
CLAMP
220
ADJUSTER PARKING BRAKE
230
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
240
CLIP
250
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
260
PIN
270
BRACKET
280
GUIDE
285
PUSH BUTTON ADJUSTMENT
290
BRAKE CABLE REAR RIGHT
290
BRAKE CABLE REAR LEFT
300
BRACKET UNDER MOUNTING BOLT OF BRAKE CABLE
310
BRACKET ON COVER PANEL RIGHT OF REAR AXLE FOR REAR AXLE F/BRAKE LINI.WEAR DISP.LINI.
320
HEXALOBULAR BOLT TORSION BAR TO CARRIER M8X16
330
GROMMET BRAKE CABLE TO REAR AXLE
