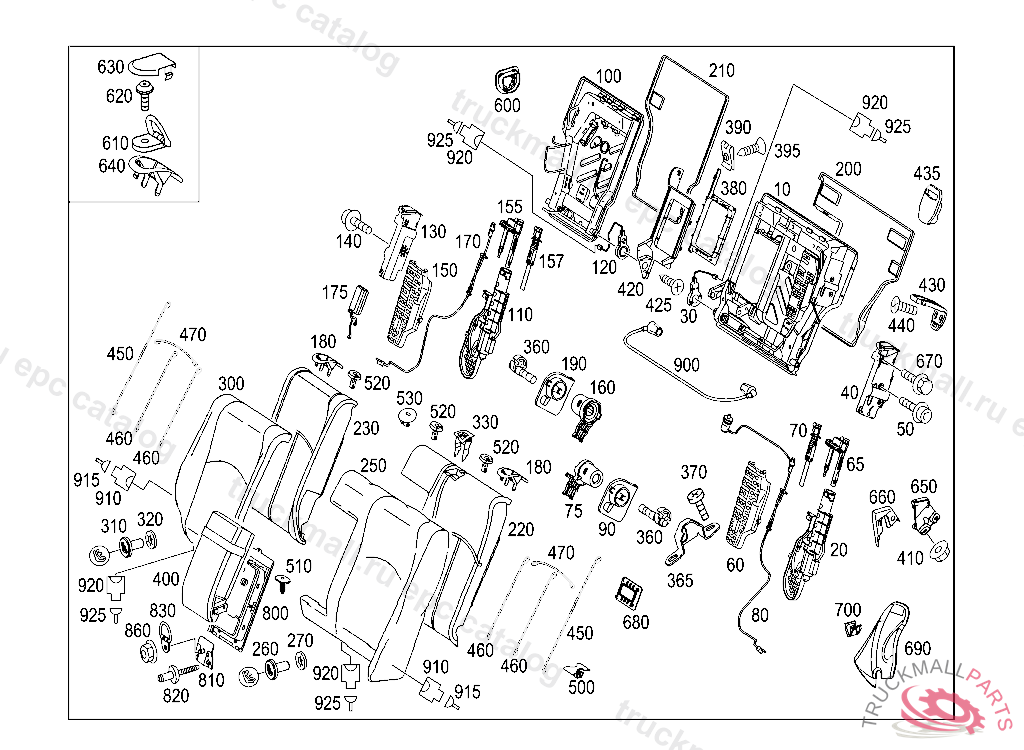

Поз.
Артикул
Описание
10
BACKREST FRAME LEFT
10
BACKREST FRAME LEFT
10
BACKREST FRAME LEFT
10
BACKREST FRAME LEFT
20
FOLDING MECHANISM TO REAR SEAT BACKREST, FOR HEAD RESTRAINTS RECHTS
30
SWITCH LEFT REAR BACKREST
40
LOCK FOR SEAT CUSHION LEFT REAR BACKREST
40
LOCKING MECHANISM LEFT REAR BACKREST
50
HEXALOBULAR BOLT CATCH ON BACKREST FRAME, LEFT M8X50, J 20120827 V 00000020130404
60
COVER HEIGHT ADJUSTMENT,LEFT
65
GUIDE HEAD RESTRAINT SEAT RIGHT, LEFT, A 95232220060224 X 20464820060223
65
GUIDE HEAD RESTRAINT SEAT RIGHT, LEFT, A 95232120060224 X 20464720060223
70
GUIDE HEAD RESTRAINT, MIDDLE SEAT, RIGHT
70
GUIDE HEAD RESTRAINT SEAT RIGHT, RIGHT
70
GUIDE HEAD RESTRAINT, MIDDLE SEAT, LEFT, A 70109820041012 X 17495820041012
70
GUIDE HEAD RESTRAINT, MIDDLE SEAT, LEFT, A 70109720041012 X 17495720041012
75
BEARING LEFT BACKREST FRAME
80
LINE LEFT
90
PANELING LEFT MOUNTING, Replaced By: A2119230722, +001A2119230822
90
PANELING LEFT MOUNTING
100
BACKREST FRAME RIGHT
100
BACKREST FRAME RIGHT
100
BACKREST FRAME RIGHT
110
FOLDING MECHANISM TO REAR SEAT BACKREST, FOR HEAD RESTRAINTS RECHTS
120
SWITCH RIGHT REAR BACKREST
130
LOCK FOR SEAT CUSHION RIGHT REAR BACKREST
130
LOCKING MECHANISM RIGHT REAR BACKREST
140
HEXALOBULAR BOLT CATCH ON BACKREST FRAME, LEFT M8X50, J 20120827 V 00000020130404
150
COVER HEIGHT ADJUSTMENT,LEFT
155
GUIDE HEAD RESTRAINT SEAT RIGHT, LEFT, A 95232120060224 X 20464720060223
155
GUIDE HEAD RESTRAINT SEAT RIGHT, LEFT, A 95232220060224 X 20464820060223
157
GUIDE HEAD RESTRAINT SEAT RIGHT, RIGHT
160
BEARING LEFT BACKREST FRAME
170
LINE RIGHT
175
PUMP RIGHT
180
PANELING TO LOCK
180
PANELING TO LOCK LINKS, Replaced By: A2119230922
190
PANELING RIGHT MOUNTING, Replaced By: A2119230822, +001A2119230722
190
PANELING RIGHT MOUNTING
200
LINING LEFT REAR BACKREST
200
LINING LEFT REAR BACKREST
210
LINING RIGHT REAR BACKREST
210
LINING RIGHT REAR BACKREST
220
REST LEFT BACKREST
230
REST RIGHT BACKREST
250
COVER LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT
250
COVER LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT
250
COVER LEFT
250
COVER LEFT
250
COVER LEFT
250
COVER LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT
250
BACKREST UPHOLSTERY LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT, B 13679820070222 X 23999820070131 9D88038039 141A QFT211A2310 BLACK
250
COVER LEFT
250
COVER REAR SEAT BACKREST LEFT
250
COVER LEFT
250
COVER LEFT
250
COVER LEFT, 9D15QFT211A2153 ANTHRACITE
250
BACKREST UPHOLSTERY LEFT
250
BACKREST UPHOLSTERY LEFT, B 13679920070222 X 23999920070131 9D88038039 141A QFT211A2310 BLACK
250
BACKREST UPHOLSTERY LEFT, A 87431220050630806 X 19596520050930806 9E43 821A QFT211A2311 BLACK
250
COVER LEFT
250
COVER LEFT
250
COVER LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT
250
COVER LEFT
250
COVER LEFT, 9D15QFT211A2153 ANTHRACITE
250
COVER LEFT
250
BACKREST UPHOLSTERY LEFT
250
BACKREST UPHOLSTERY LEFT
250
BACKREST UPHOLSTERY LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT
250
COVER LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT, 9D16034035036037QFT211A2152 ANTHRACITE
250
BACKREST UPHOLSTERY LEFT
250
BACKREST UPHOLSTERY LEFT
250
COVER LEFT
250
COVER LEFT
260
SYMBOL
270
LOCK PLATE BRACKET MOUNTING
270
LOCK BRACKET MOUNTING, Replaced By: N912010006000
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT, B 13679820070222 X 23999820070131 9D88038039 141A QFT211A2310 BLACK
300
COVER RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
COVER RIGHT, 9D15QFT211A2153 ANTHRACITE
300
COVER RIGHT, 9D16034035036037QFT211A2152 ANTHRACITE
300
COVER RIGHT
300
BACKREST UPHOLSTERY , B 13679920070222 X 23999920070131 9D88038039 141A QFT211A2310 BLACK
300
BACKREST UPHOLSTERY RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
COVER RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
BACKREST UPHOLSTERY RIGHT, A 87431220050630806 X 19596520050930806 9E43 821A QFT211A2311 BLACK
300
BACKREST UPHOLSTERY RIGHT
300
COVER RIGHT
300
COVER RIGHT
310
SYMBOL
320
LOCK PLATE BRACKET MOUNTING
320
LOCK BRACKET MOUNTING, Replaced By: N912010006000
330
COVER SEAT BELT REAR SEAT AT LEFT
360
BEARING RIGHT REAR BACKREST
365
HOUSING LEFT REAR BACKREST, A 38004020030808 X 11441220030924
365
HOUSING RIGHT REAR BACKREST, A 38004020030808 X 11441220030924
365
HOUSING RIGHT REAR BACKREST
365
HOUSING LEFT REAR BACKREST
370
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
370
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
380
COVER ARMREST REAR
390
LOCK NUT GLOVE COMPARTMENT TO INSTRUMENT PANEL
395
TAPPING SCREW MOUNTING, COVER
400
FOLDING ARMREST FOR "CLASSIC" OR "ELEGANCE" FABRIC
400
FOLDING ARMREST WITH LEATHER TRIM
400
FOLDING ARMREST USED WITH NAPPA LEATHER VERSION DESIGNO
400
FOLDING ARMREST FOR "AVANTGARDE" FABRIC OR "TWIN" LEATHER
400
FOLDING ARMREST WITH LEATHER TRIM
410
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
420
COVER ARMREST
425
TAPPING SCREW MOUNTING, COVER
430
BRACKET
430
BRACKET LEFT COVERING, Replaced By: A2119200514
435
FIXTURE AT LEFT BRACKET
435
STAY AT RIGHT BRACKET, B 44158020090115 X 23999820070131
440
SCREW BRACKET TO SIDE MEMBER M8X20
450
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
460
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
470
CLAMP CROSS STAPLE TOP 313 MM
500
CLIP TRANSVERSAL TACKING
510
PLUG COVERING TO BRACKET
520
KNOB VIA GUIDE, RIGHT
530
COVER CAP VIA GUIDE, RIGHT
600
HOUSING ANCHORING LUG
610
BRACKET MAIN FLOOR FRONT
620
HEXALOBULAR BOLTM8X16
630
COVER MAIN FLOOR FRONT
640
PANELING TO LOCK
640
PANELING TO LOCK LINKS, Replaced By: A2119230922
650
TAKE-UP DEVICE LEFT REAR BACKREST
660
COVER TAKE-UP DEVICE LINKS
670
HEXALOBULAR BOLT BUMPER COVERING M6X20
680
COVER RIGHT BACKREST LOCK
690
COVER RIGHT HINGE, REAR BACKREST
690
COVER LEFT HINGE, REAR BACKREST
700
CLIP MOUNTING, COVER
800
SKI-BAG
800
DASHPOT
810
CLAMP MOUNTING STRIP
820
BLIND RIVET BRACKET MOUNTING
820
RIVET CHILD SEAT FASTENING ISOFIX INNER LEFT/RIGHT
830
BRACKET MAIN FLOOR FRONT
860
NUT
900
LINE CONNECTION, RIGHT REAR BACKREST TO LEFT REAR BACKREST
910
HOUSING COCKPIT MOTOR PLUG-IN CONNECTOR 2-PIN SLK2.8,X18/28
915
FLAT PLUG TERMINAL CONNECTOR CIRCUIT 50/61 0.5-1.0 MM2 SLK2.8,X14/4
920
HOUSING TAXI OR PREINSTALLATION FOR RENTAL CAR 2-PIN SLK2.8
925
CONTACT SPRING1.5-2.5 MM2 SLK2.8,X99/4
