Поз.
Артикул
Описание

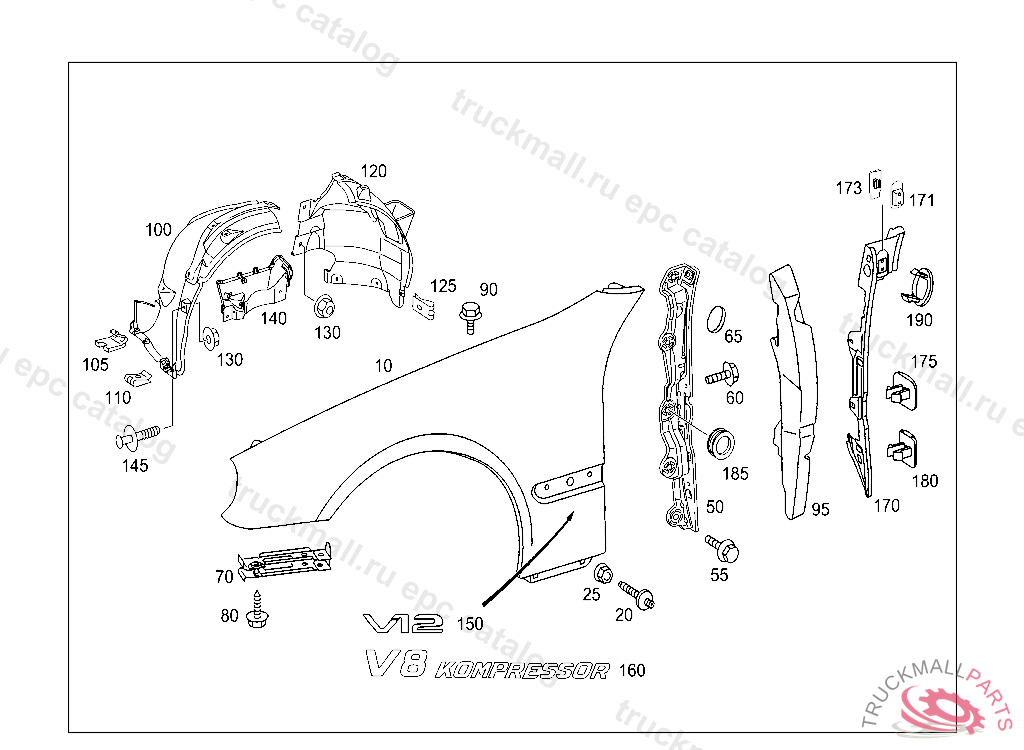

10
FRONT FENDER RIGHT
10
FRONT FENDER LEFT
20
BOLT FENDER BOTTOM RIGHT MOUNTING M6X20
25
NUT FENDER ON SIDE PANEL M6
50
BRACKET RIGHT, FENDER AT A-PILLAR
50
BRACKET LEFT, FENDER AT A-PILLAR
55
COMBINATION BOLT FENDER TO A-PILLAR M6X20
60
BOLT SUPPORT TO CROSS MEMBER M6X16
65
INTERMEDIATE LAYER REAR LID STOP 22 MM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 23247820061012, Replaced By: A1698891295
70
BRACKET BUMPER ON FENDER, LEFT
70
BRACKET BUMPER ON FENDER, RIGHT
80
TAPPING SCREW BRACKET AT FENDER AND BUMPER 4.8X22
90
BOLT SUPPORT TO CROSS MEMBER M6X16
95
INSULATION BETWEEN FENDER & WHEELHOUSE,RIGHT
95
INSULATION BETWEEN FENDER & WHEELHOUSE,LEFT
100
COVER BETWEEN WHEELHOUSE & RIGHT FRONT FENDER
100
COVER BETWEEN WHEELHOUSE & LEFT FRONT FENDER
105
LOCK PARTITION PANEL TO PANELLING
110
LOCK NUT. LOCK
120
COVER FENDER, BELOW, LEFT, ON FRONT WALL PILLAR
120
COVER FENDER, BELOW, RIGHT, ON FRONT WALL PILLAR
125
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
130
PLASTIC NUT. NUT
140
COVER RIGHT
140
COVER LEFT
145
RIVET COVERING TO SIDE MEMBER
150
TYPE DESIGNATION AT FRONT FENDER V 12
170
SEAL LEFT, A-PILLAR
170
SEAL RIGHT, A-PILLAR
171
CLIP LEFT AND RIGHT
173
CLIP LEFT AND RIGHT
175
CLIP LEFT AND RIGHT
180
CLIP LEFT AND RIGHT
185
WASHER LEFT AND RIGHT
190
EXPANSION PLUG A-PILLAR
