Главная
Mercedes
CAR
S 320 CDI 4MATIC / S 350 CDI 4MATIC
221.180
83 HEATING AND VENTILATION
182 HOT WATER LINES ON INDEPENDENT HEATING OR AUXILLIARY HEATER

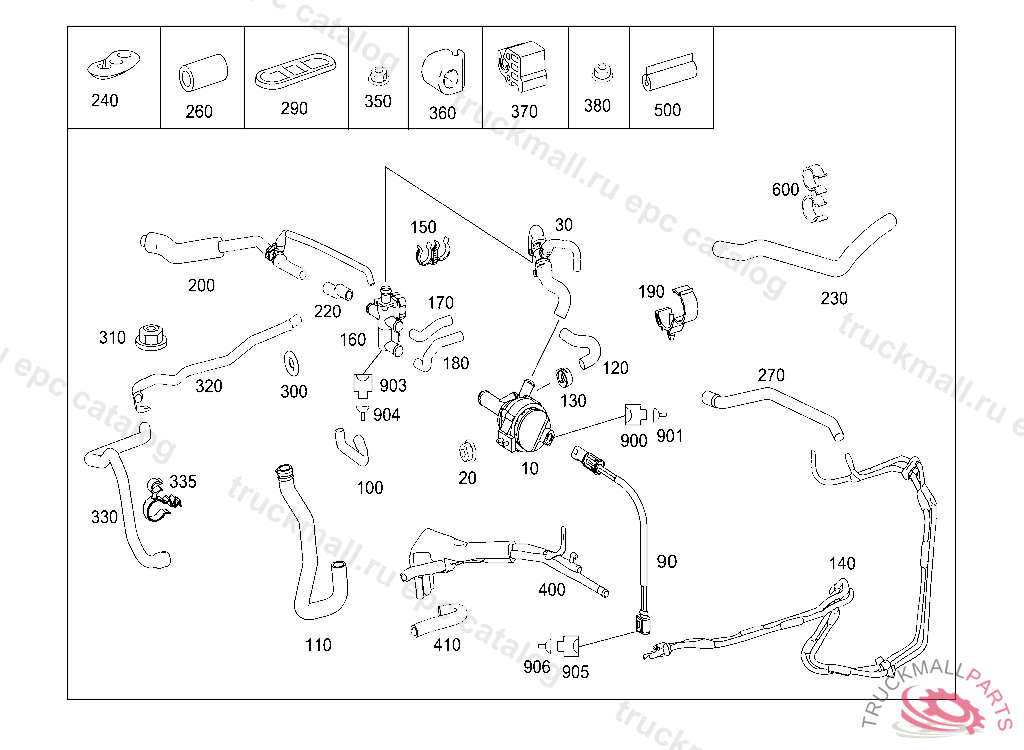

S 320 CDI 4MATIC / S 350 CDI 4MATIC - 221.180 - 83 HEATING AND VENTILATION

Поз.
Артикул
Описание
10
A2218350064
PUMP
20
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
30
A2218301696
HOSE PUMP TO VALVE WITH T-TYPE DISTRIBUTOR
90
A2215404406
WIRING HARNESS TO PUMP
100
A2215000872
RETURN HOSE RETURN FROM AUXILIARY HEATER
110
A2215060035
HOSE CHANGE-OVER VALVE
120
A2218322394
HOSE FEED HOSE TO VALVE
130
A2309950105
CLAMP25 MM
130
A0009954005
HOSE CLAMP HOSE ATTACHMENT 27 MM
130
A0069970390
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
130
A2309950205
SPRING HOSE CLAMP HOSE FASTENING,230301
130
A1409950405
CLAMP14 MM
140
A2218300417
PIPELINE TO WASHER FLUID HEATER
150
A1695010520
BRACKET HOSE
160
A2308300084
VALVE CHANGE-OVER VALVE
170
A2218322194
HOSE FROM VALVE TO HEAT EXCHANGER
180
A2218322294
HOSE FROM VALVE TO HEAT EXCHANGER
190
A2208320314
BRACKET AT BRACKET
200
A2218303296
HOSE INTERMEDIATE PIECE BETWEEN HEATER BOOSTER AND VALVE, A 16124820070628808
200
A2218303596
HOSE INTERMEDIATE PIECE BETWEEN HEATER BOOSTER AND VALVE, A 16124820070628808
220
A2218322894
HOSE PIPE LINE TO VALVE
240
A0009982090
STOP PLUG BLIND PLUG
240
A0009980905
GROMMET PIPE LINE TO WHEELHOUSE
260
A0009982121
CAP FOR WASHER FLUID HEATER CONNECTION
270
A2218325394
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
270
A2218322094
HOSE TO WASHER FLUID HEATER
290
A0009981350
STOP PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780320080331 L 00369520080430
290
A0019989450
PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780420080331 L 00369620080430
300
A0009980805
GROMMET RETURN LINE
310
A0039900251
NUT COVERING TO CAB FIRE WALL
320
A2218305715
PIPELINE RETURN
320
A2218300115
PIPELINE RETURN, Replaced By: A2218305715
330
A2218321523
HOSE RETURN LINE INTERMEDIATE PIECE TO ENGINE, A 36930420100930801
330
A2218323023
HOSE ASSEMBLY RETURN, A 30200020090930800
330
A2218322923
HOSE ASSEMBLY , A 30200020090930800
350
N910104006000
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
360
A0009950277
LINE HOLDER AUXILIARY HEATER LINE TO LONGITUDINAL MEMBER, FRONT RIGHT
370
A1299950065
CLAMP FUEL LINE TO SIDE MEMBER,B 926099
380
A0039900251
NUT COVERING TO CAB FIRE WALL
400
A2215001272
FUNNEL FROM STATIONARY HEATER TO T-PIECE
410
A2215060235
HOSE RETURN FROM HEATER
500
A1299972782
HOSE
900
A1685452928
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
901
A0095458126
CONTACT SPRING. PLUG SOCKET0,5-1,0
901
A0005457680
GASKET
903
A2105402081
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
904
A0085456326
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
A2115451528
HOUSING. PLUG PLUG, CONNECTOR, DIFFUSOR HEATER
906
A0015455080
SEAL. GASKET YELLOW,V 215932
906
A0475459928
CONTACT PIN WITH SINGLE-WIRE SEAL 0.75-1.0MM2 MLK1.2
