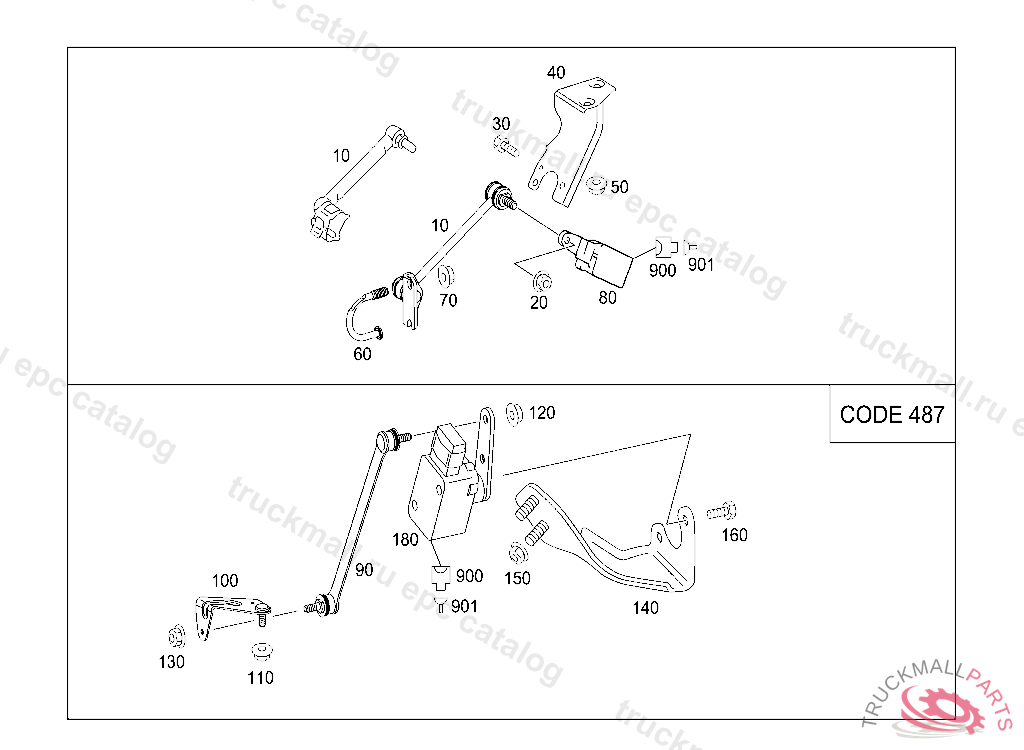

Поз.
Артикул
Описание
10
ROD ROD ON SENSOR
20
NUT HEATING PIPE TO BRACKET
30
HEXALOBULAR BOLT TURNING ANGLE SENSOR AT BRACKET M5X10
40
BRACKET TURNING ANGLE SENSOR AT FRAME, A 02295520080930809
40
BRACKET TURNING ANGLE SENSOR AT FRAME, A 02401620090630800
50
NUT HEATING PIPE TO BRACKET
80
SENDER UNIT (TURNING ANGLE SENSOR), FROM MODEL YEAR 1998
90
ROD AT SENSOR
100
BRACKET ROD TO LEFT SPRING LINK
100
BRACKET ROD TO RIGHT SPRING LINK
110
NUT BRACKET TO BRACKET
120
NUT HEATING PIPE TO BRACKET
130
NUT HEATING PIPE TO BRACKET
140
BRACKET REAR AXLE SENSOR,LEFT
140
BRACKET REAR AXLE SENSOR,RIGHT
150
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
160
HEXALOBULAR BOLT TURNING ANGLE SENSOR AT BRACKET M5X10
180
SENDER UNIT (TURNING ANGLE SENSOR), FROM MODEL YEAR 1998
900
PIN BUSHING HOUSING 6-POLE
901
GASKET YELLOW 0.2-0.5MM2,126373
901
GASKET. BLIND PLUG BLUE
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
