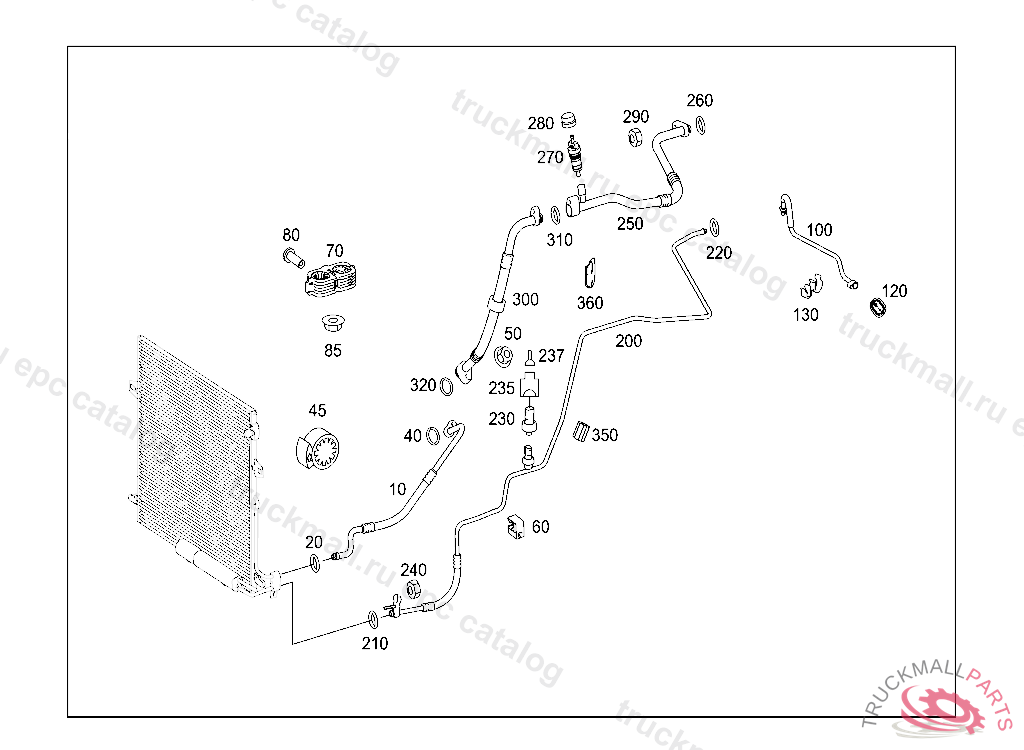

Поз.
Артикул
Описание
10
PIPELINE COMPRESSOR-TO-CONDENSER REFRIGERANT LINE
20
O-RING PIPE ON CONDENSER 9.42X2.47
40
O-RING LINE TO COMPRESSOR 10.90X1.85
50
NUT , Replaced By: N913023006001
70
CLAMP REFRIGERANT LINE TO BODY 10 MM + 16-19 MM BLACK
80
THREADED BUSHING CABLE HOLDER
85
NUT , Replaced By: N913023006001
100
REFRIGERANT LINE AIR CONDITIONER IN THE REAR
120
SEAL LEFT FRONT WHEEL ARCH
130
BRACKET LINES
200
PIPELINE CONDENSER TO EXPANSION VALVE
200
REFRIGERANT LINE CONDENSER TO EXPANSION VALVE
200
REFRIGERANT LINE CONDENSER TO EXPANSION VALVE
200
PIPELINE CONDENSER TO EXPANSION VALVE
210
O-RING PIPE ON CONDENSER 9.42X2.47
220
O-RING TUBING AT EXPANSION VALVE 7.16X2.47
230
PRESSURE SENSOR
235
CLUTCH. PIN BUSHING HOUSING SIREN
237
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
240
NUT , Replaced By: N913023006001
250
PIPELINE EXPANSION VALVE TO SEPARATION POINT
250
REFRIGERANT LINE EXPANSION VALVE TO SEPARATION POINT
250
REFRIGERANT LINE EXPANSION VALVE TO SEPARATION POINT
250
PIPELINE EXPANSION VALVE TO SEPARATION POINT
260
O-RING TUBING AT EXPANSION VALVE 14.11X2.70
270
VALVE INSERT TO EXPANSION VALVE LINE ON SEPARATION POINT
280
CAP AT EXPANSION VALVE PIPE TO SEPARATIONPOINT
290
NUT , Replaced By: N913023006001
300
PIPELINE FROM SEPARATION POINT TO COMPRESSOR
310
O-RING CABLE JUNCTION TO SEPARATION POINT 17.16X2.45
320
O-RING LINE TO COMPRESSOR 23.73X2.69
350
RUBBER RING SPRING STRUT LINE, FRONT RIGHT
360
SEAL IN PARTITION WALL
