Поз.
Артикул
Описание
5

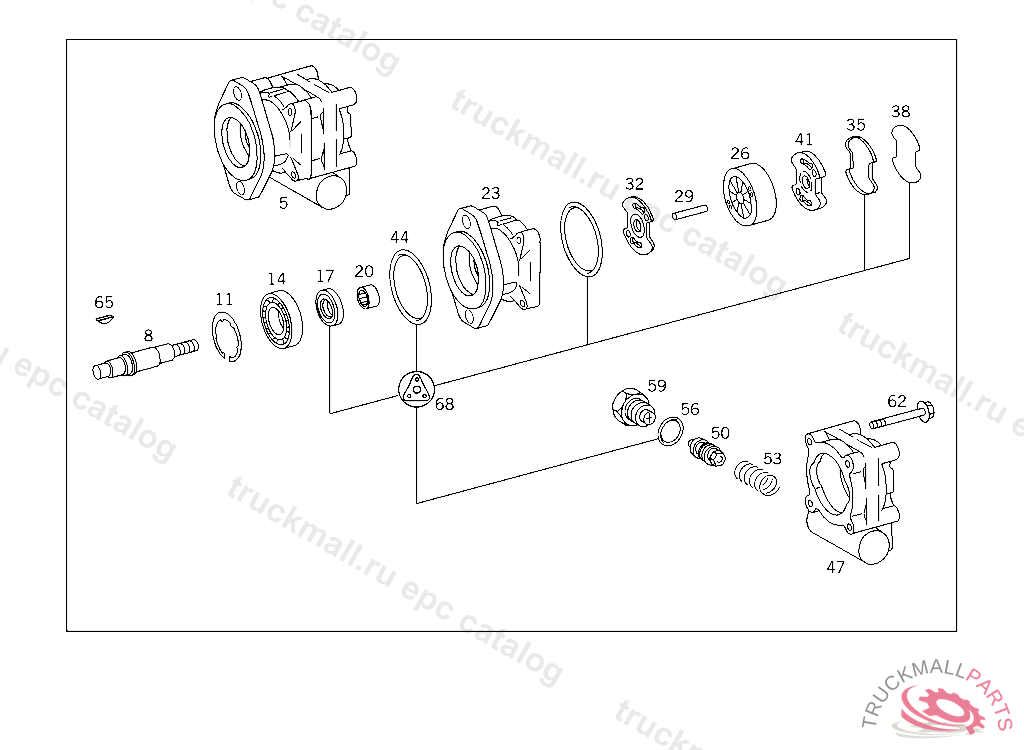

HYDRAULIC PUMP
5
HYDRAULIC PUMP , Replaced By: A0014666801
8
DRIVE SHAFTTO 376 466 78 01,001 460 33 80/34 80
11
SNAP RINGTO 376 466 78 01,001 466 33 80/34 80
11
LOCK RING52X2 MM
14
BALL BEARINGTO 376 466 78 01,001 460 33 80/34 80
14
GROOVED BALL BEARING SLIP RING SIDE
17
SEAL RING (RADIAL-LIP-TYPE OIL SEAL)
17
SEAL RINGTO 376 466 78 01,001 460 33 80/34 80
20
NEEDLE BEARINGTO 376 466 78 01,001 460 33 80/34 80
23
HOUSINGTO 376 466 78 01,001 460 33 80/34 80
26
ROTOR SETTO 376 466 78 01,001 460 33 80/34 80
29
DOWEL PINTO 376 466 78 01,001 460 33 80/34 80
29
DOWEL PINTO 000 460 42 80
32
PLATETO 376 466 78 01,001 460 33 80/34 80
35
SEAL RINGTO 376 466 78 01,001 460 33 80/34 80
38
SPACER RINGTO 210 466 09 01,601 466 01 01
41
PLATETO 736 466 78 01,001 460 33 80/34 80
44
SEAL RINGTO 460 466 01 01,210 466 09 01
50
PISTON
50
PISTONTO 001 460 33 80/34 80
53
SPRINGTO 601 466 01 01
53
SPRING
56
SEAL RINGTO 376 466 78 01,001 460 33 80/34 80
56
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
62
SCREWTO 376 466 78 01,001 460 33 80/34 80
65
KEYTO 000 460 42 80
65
KEY
68
HYDRAULIC PUMP (GASKET KIT),POWER STEERING PUMP TO 001 460 33 80,34 80
999
GASKET KITTO 000 460 42 80
999
COVERTO 000 460 86 80,001 466 68 01
999
SEAL RING
999
DRIVE SHAFTTO 000 460 42 80
999
ROTOR SET (PARTS KT),ROTOR TO 000 460 42 80
999
SNAP RINGTO 000 460 23 80
999
COVERTO 000 460 42 80
999
SPRING
999
SEAL RINGTO 000 460 23 80
