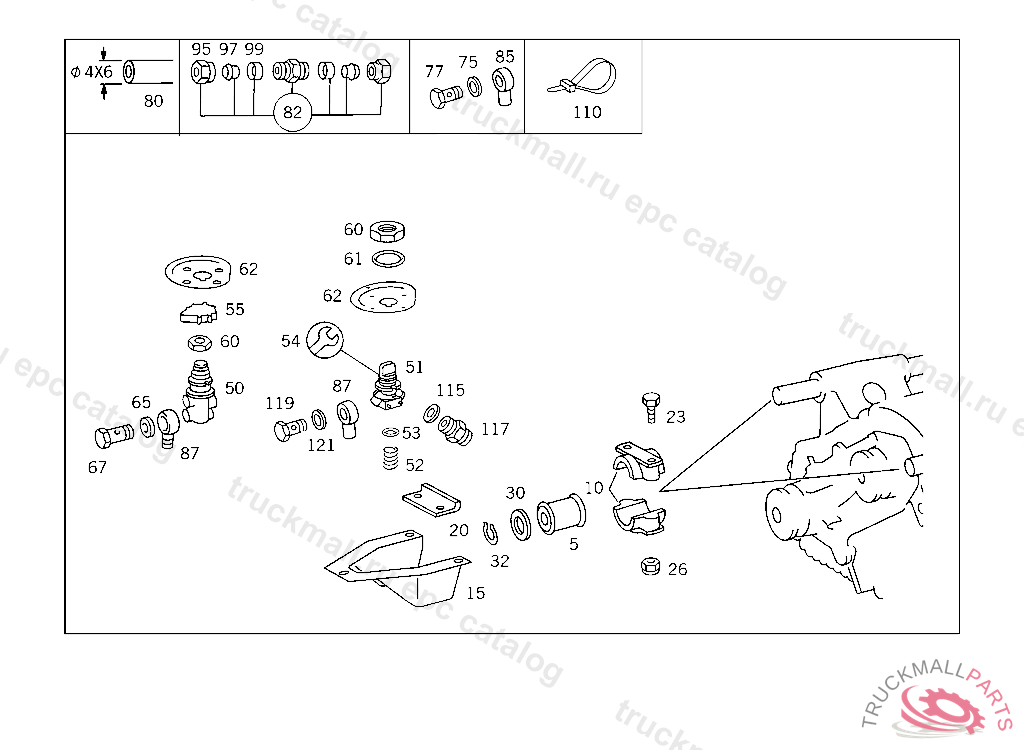

Поз.
Артикул
Описание
5
RUBBER MOUNTING TRANSFER CASE TO FRAME
10
BEARING TRANSFER CASE TO FRAME
15
BRACKET SUSPENSION
20
SHIM BRACKET TO CROSS MEMBER
23
SCREW VIBRATION ABSORBER TO BRACKET
26
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
26
NUT , Replaced By: N910113012003
30
WASHER , Replaced By: A3129902840
30
WASHER TRANSFER CASE TO FRAME
32
LOCK TRANSFER CASE TO FRAME
50
VALVE 4/3-WAY, TRANSFER CASE ACTUATION WABCO
50
VALVE PNEUMATIC CONTROL USED FOR TRANSFER CASE WABCO
50
VALVE PNEUMATIC CONTROL USED FOR TRANSFER CASE BOSCH
50
VALVE 4/3-WAY, TRANSFER CASE ACTUATION BOSCH
51
VALVE 3/2-WAY BOSCH
51
VALVE 3/2-WAY WABCO
51
VALVE 3/2-WAY VOSS
51
VALVE 3/2-WAY KNORR
52
SPRING INSIDE WABCO
53
SEAL RING TOP WABCO
53
SEAL RING INSIDE WABCO
54
REPAIR KIT 4/3-WAY VALVE WABCO
55
HANDLE VALVE
60
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
61
WASHER AT TWO-WAY VALVE
61
WASHER 3/2-WAY VALVE TO BRACKET
62
UNIT IDENTIFICATION PLATE LONGITUDINAL DIFFERENTIAL LOCK
62
UNIT IDENTIFICATION PLATE ON-ROAD/OFF-ROAD SPEED
62
UNIT IDENTIFICATION PLATE ON-ROAD/OFF-ROAD SPEED
65
SEAL RING PNEUMATIC VALVE
65
SEAL RING , Replaced By: N007603010110
67
HOLLOW SCREW LINE CONNECTION
75
SEAL RING LINE CONNECTION
77
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
77
HOLLOW SCREW LINE CONNECTION
80
PLASTIC PIPE RISING PIPE 4X6 MM
80
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
82
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
85
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
85
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
85
BANJO UNION , Replaced By: N915052004006
87
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
87
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
95
UNION NUT
97
GLAND , Replaced By: A0019901667
97
SEAL CONE
99
BUSHING , Replaced By: N915062004000
99
SLEEVE LEAK LINE
110
LOOM TIE LINE MOUNTING 280 MM
110
LOOM TIE LINE MOUNTING
115
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
117
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
117
TS DOUBLE FITTING SOLENOID VALVE
117
FITTING , Replaced By: A0039979072
117
FITTING , Replaced By: A0029906071
117
DOUBLE FITTING , Replaced By: A0019972872
119
HOLLOW SCREW , Replaced By: N915047008100
119
HOLLOW SCREW HEATING CONNECTION
119
HOLLOW SCREW LINE CONNECTION
121
SEAL RING LINE CONNECTION
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
INSULATING HOSE8X0,01 MM
