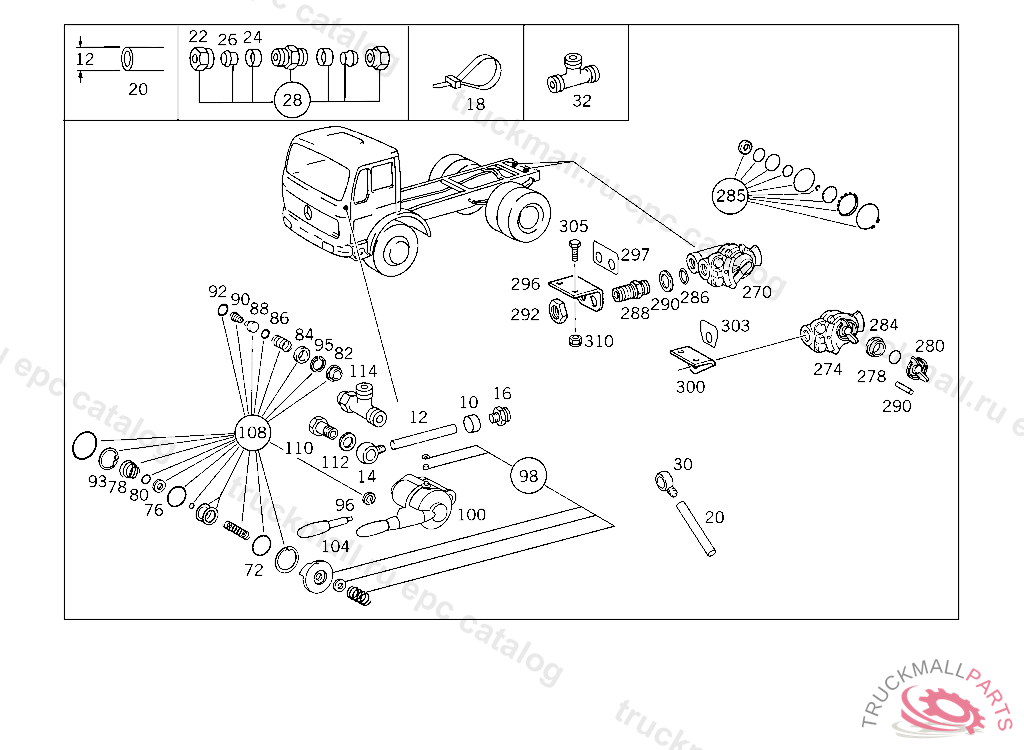

Поз.
Артикул
Описание
10
SLEEVE LINE CONNECTION
10
SLEEVE , Replaced By: N915062006000
12
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
14
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
14
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
14
BANJO UNION , Replaced By: N915052006005
14
BANJO UNION , Replaced By: N915052006003
14
BANJO UNION HEATING CONNECTION,K 169122
16
FITTING
16
FITTING , Replaced By: N915059006000
18
LOOM TIE LINE MOUNTING
20
HOSE , Replaced By: A0009872827
20
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
22
UNION NUT LINE CONNECTION
22
UNION NUT LINE CONNECTION, Replaced By: N000000006239
24
GLAND , Replaced By: A0019901967
24
SEAL CONE LINE CONNECTION
26
SLEEVE LINE CONNECTION
28
FITTING , Replaced By: N915059006000
28
FITTING
30
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
30
BANJO UNION , Replaced By: N915052009009
32
FITTING , Replaced By: A0019900970
32
T-FITTING POWER STEERING
72
SEAL RING32.99X2.62 MM,WABCO,002 0,012 0
72
SEAL RING6.07X1.78 MM,WABCO,002 0,012 0
76
VALVE SEATWABCO,002 0,012 0
78
SPRINGWABCO,002 0,012 0
80
SEAL RING12.42X1.78 MM,WABCO,002 0,012 0
82
PROTECTIVE CAPWABCO,002 0,012 0
84
SEAL RINGWABCO,002 0,012 0
86
SEAL RING8.13X1.78 MM,WABCO,002 0,012 0
88
VALVEWABCO,002 0,012 0
90
SPRINGWABCO,002 0,012 0
92
SEAL RING18.72X2.62 MM,WABCO,002 0,012 0
93
LOCK RING SHIFT LEVER BEARING
95
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
96
LOCK PLATE
98
REPAIR KITTO 000 430 57 81,43 81,WABCO,0020,0120
100
VALVE PARKING BRAKE VALVE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
100
VALVE PARKING BRAKE VALVE GRAU
100
VALVE PARKING BRAKE VALVE WABCO
100
VALVE PARKING BRAKE VALVE GRAU
104
HANDLETO 000 430 85 81,WABCO,004 0
108
REPAIR KITTO 000 430 86 81,WABCO
108
REPAIR KITTO 000 430 85 81,WABCO,004 0
108
REPAIR KITTO 000 430 57 81,43 81,WABCO,0020,0120
108
GASKET KIT PARKING BRAKE VALVE GRAU
110
HOLLOW SCREW FUEL LINE TO FEED PUMP
110
HOLLOW SCREW , Replaced By: N915036010108
112
SEAL RING FUEL LINE TO FEED PUMP
114
T-FITTING SHIFT VALVE,CONNECTION: "11", 415 5 014668 416 5 000515 417 4 972023
270
BRAKE LINE COUPLING SUPPLY, RED
270
BRAKE LINE COUPLING SUPPLY, RED
270
BRAKE LINE COUPLING BRAKE,YELLOW WESTINGHOUSE
270
BRAKE LINE COUPLING SUPPLY, RED
270
BRAKE LINE COUPLING BRAKE,YELLOW BOSCH
270
BRAKE LINE COUPLING BRAKE,YELLOW KNORR
270
BRAKE LINE COUPLING BRAKE,YELLOW GRAU
270
BRAKE LINE COUPLING SUPPLY, RED
270
BRAKE LINE COUPLING , Replaced By: A0004297830
274
BRAKE LINE COUPLING , Replaced By: A0004297930
274
BRAKE LINE COUPLING BRAKE,YELLOW WESTINGHOUSE
278
SEAL RING , Replaced By: A0004296930
278
BRAKE LINE COUPLINGTO 000 429 38 30
278
SEAL RING"GRAU"
278
SEAL RINGTO 000 429 38 30
280
COVER"WABCO", NOT USED
280
COVERTO 000 429 51 30,4 434235
280
COVER SUPPLY, RED "WABCO"
280
COVERTO 000 429 49 30
284
SEALING CORDTO 000 429 49 30,4 434235
284
SEAL RING"GRAU"
284
SEAL RING , Replaced By: A0004292184
284
SEAL RING"WABCO"
285
REPAIR KITTO 000 429 78 30,4 434236
285
REPAIR KIT , TO 000 429 49 304 434235
285
REPAIR KITTO 000 429 37 30
285
REPAIR KIT"KNORR"
285
REPAIR KITTO 000 429 63 30
286
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
286
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
288
FITTING BRAKE LINE COUPLING TO BRACKET
290
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
290
GROOVED PINTO 000 429 51 30,4 434235
292
NUT BRACKET TO SIDE MEMBER
296
BRACKET SUPPLY
296
BRACKET BRAKE LINE COUPLING,"SUPPLY"
297
GUIDE SIGN SUPPLY,4 431464
300
BRACKET (REAR CROSS MEMBER)
303
GUIDE SIGN BRAKE,4 431464
305
SCREW , Replaced By: N304017008034
310
NUT , Replaced By: N913004008001
310
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
VALVE , TO BE EXHAUSTED UP TO CHASSIS 4 261995, Replaced By: A0004308681
999
VALVE , TO BE EXHAUSTED UP TO CHASSIS 4 230076, Replaced By: A0004308581
999
NUT CHECK VALVE TO AIR RESERVOIR
