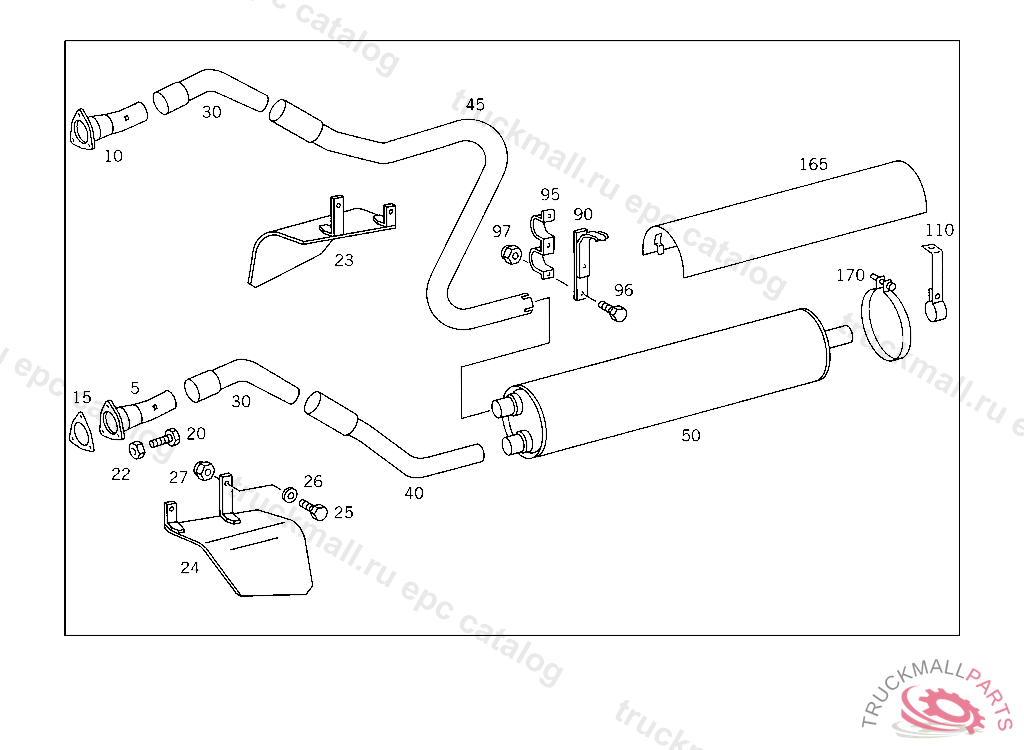

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT LEFT
10
EXHAUST PIPE FRONT RIGHT
15
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
15
FLANGE GASKET , Replaced By: A4424920080
20
SCREW CONNECTOR TO EXHAUST MANIFOLD
22
NUT STRAP TO SUPPORT,5 149419
23
PROTECTIVE PLATE LEFT
24
PROTECTIVE PLATE AT FRAME
25
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
25
SCREW , Replaced By: N304017008027
26
WASHER , Replaced By: N000125008443
26
WASHER EXHAUST MUFFLER TO STRAP
27
NUT , Replaced By: N913004008001
27
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
30
CONNECTOR FRONT LEFT AND RIGHT
40
FRONT EXHAUST PIPE RIGHT
40
FRONT EXHAUST PIPE FRONT LEFT
50
EXHAUST MUFFLER
90
BRACKET FRONT EXHAUST PIPE
95
CLAMP FRONT EXHAUST PIPE TO BRACKET
96
SCREW BRACKET TO CROSS CONNECTION STRUT
96
SCREW , Replaced By: N304017008034
97
NUT , Replaced By: N913004008001
97
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
999
SUPPORT , Replaced By: A3604910016
999
CONNECTOR , Replaced By: A3834920007
