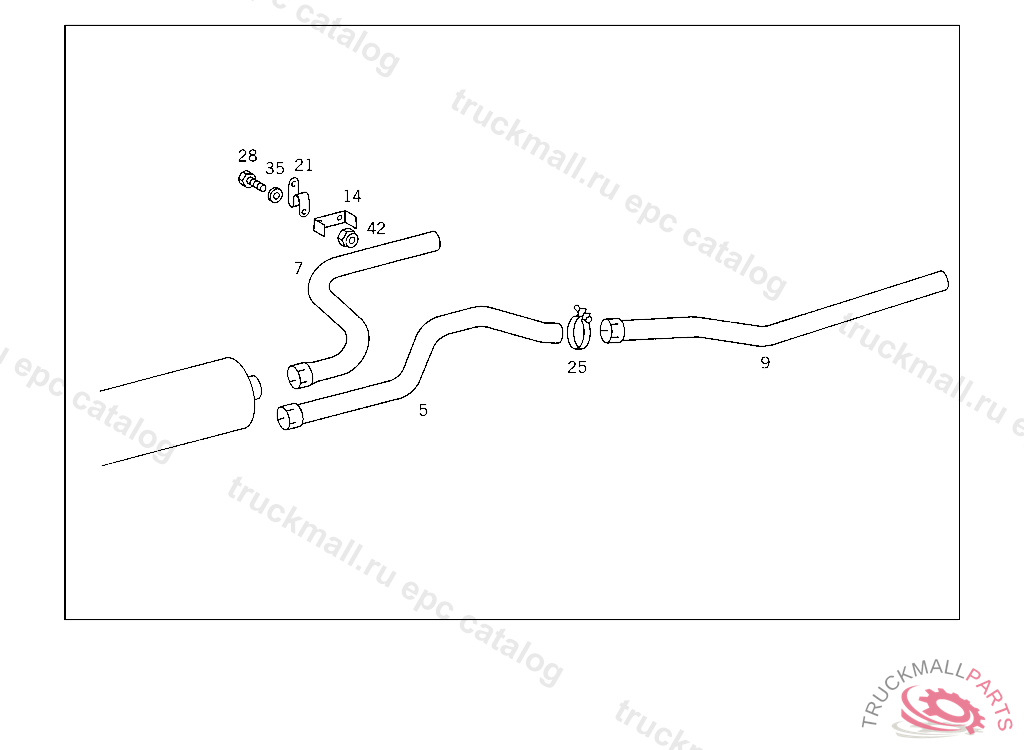

Поз.
Артикул
Описание
5
REAR EXHAUST PIPE CONNECTION ABOVE REAR AXLE
5
CONNECTOR CONNECTION ABOVE REAR AXLE
5
CONNECTOR CONNECTION ABOVE REAR AXLE
5
REAR EXHAUST PIPE CONNECTION ABOVE REAR AXLE
7
REAR EXHAUST PIPE
9
REAR EXHAUST PIPE
9
REAR EXHAUST PIPE
9
REAR EXHAUST PIPE
9
REAR EXHAUST PIPE
14
BRACKET REAR EXHAUST PIPE
14
BRACKET REAR EXHAUST PIPE
21
CLAMPING PIECE EXHAUST MUFFLER TO SUBSTRUCTURE
25
CLAMP EXHAUST PIPE TO BRACKET
25
CLAMP INTERMEDIATE PIECE
28
SCREW BRACKET TO AIR CLEANER CONSOLE
28
SCREW OIL LINE TO ENGINE SUPPORT,6 900042
35
WASHER A 8,4 DIN 9021. WASHER MOUNTING TO SUBSTRUCTURE
42
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
42
NUT
999
CONNECTOR CONNECTION OF REAR EXHAUST PIPES NO.1,D 027209
999
REAR EXHAUST PIPENO.3
999
BRACKET , Replaced By: A3844907040
