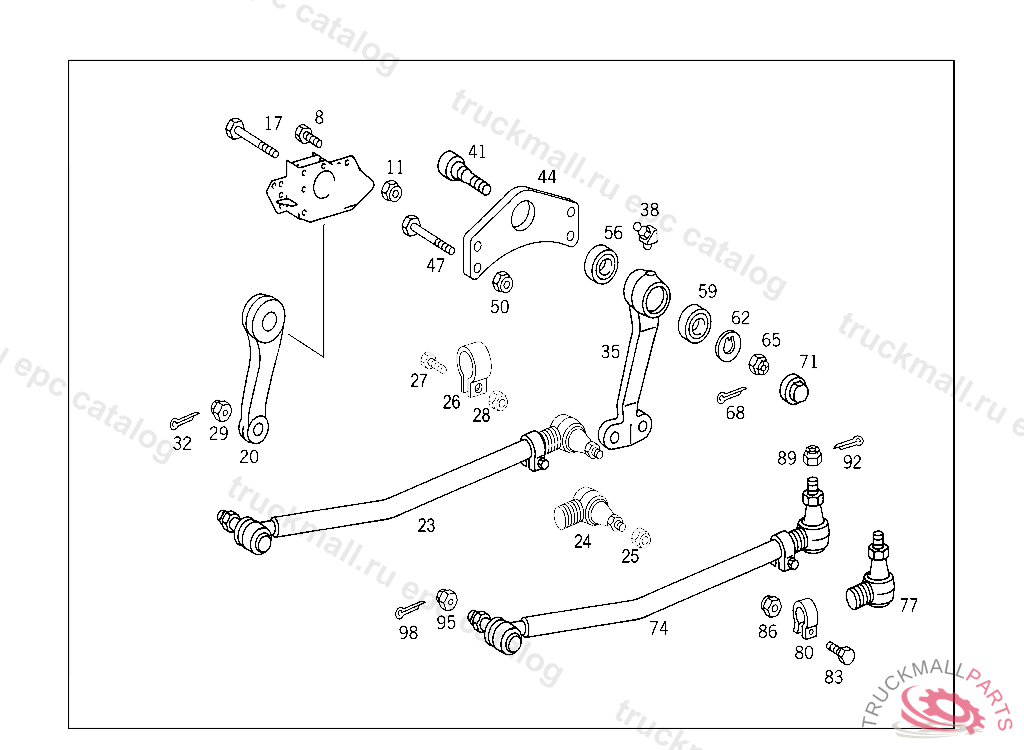

Поз.
Артикул
Описание
17
SCREW SUPPORT TO TRANSMISSION
17
SCREW BRACKET TO SUPPORT
20
PITMAN ARM ,D 091296
20
PITMAN ARM ,D 091297
23
DRAG LINK
23
DRAG LINK
23
DRAG LINK
23
DRAG LINK , Replaced By: A3824600705
23
DRAG LINK
24
DRAG LINK ENDTO 384 460 02 05 / 06 05
25
NUT DRAG LINK TO LEVER TO 384 460 02 05 / 06 05, Replaced By: A0019905451
25
NUT DRAG LINK END M 24X1.5
26
CLAMPTO 384 460 02 05/06 05
27
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
28
NUT BRACKET TO SIDE MEMBER M12X1.5
77
DRAG LINK ENDTO 384 460 40 05
77
DRAG LINK ENDTO A 3824608405
80
CLAMP JOINT TO DRAG LINK TO 682 460 98 05
83
SCREW , Replaced By: N308676012018
86
NUT ALTERNATOR TO SUPPORT
95
NUT , Replaced By: N000937024002
95
NUT DRAG LINK END M 24X1.5
98
COTTER PINTO 000 429 16 30
