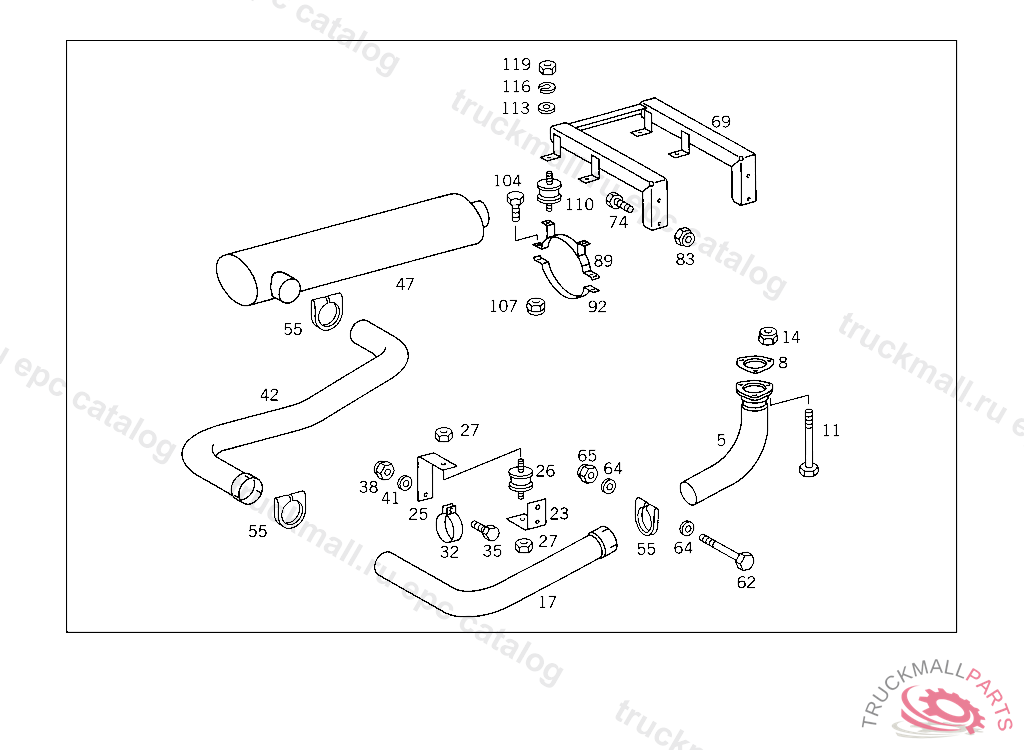

Поз.
Артикул
Описание
5
EXHAUST PIPE ,D 124753
8
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
11
SCREW BRACKET TO TRANSMISSION,D 203092
14
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
17
FRONT EXHAUST PIPE
23
BRACKET FRONT EXHAUST PIPE
25
BRACKET OIL LINE
26
RUBBER MOUNTING
27
NUT BRACKET TO RETARDER
32
CLAMP SLIDING PIECE TO EXHAUST PIPE
35
SCREW ANGLE TO CROSS MEMBER M 10X30
38
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
41
WASHER GROUND CABLE
42
FRONT EXHAUST PIPE AT MUFFLER,D 124753
47
EXHAUST MUFFLER WITH PIPE
47
EXHAUST MUFFLER WITH PIPE ,D 124753
55
CLAMP REAR EXHAUST PIPE TO MUFFLER,B 884220
62
SCREW REAR EXHAUST PIPE TO MUFFLER
64
WASHER GROUND CABLE
65
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
69
SUPPORT
74
SCREW BRACKET TO FRAME
74
SCREW BATTERY CASE TO SIDE MEMBER
83
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
89
BRACKET EXHAUST MUFFLER
92
MOUNTING STRAP EXHAUST MUFFLER TO BRACKET -,D 124753
104
SCREW LINES TO BRACKET
107
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
110
RUBBER MOUNTING
113
WASHER , Replaced By: N000125010532
116
LOCK WASHER , Replaced By: N912004010102
119
NUT BRACKET TO RETARDER
