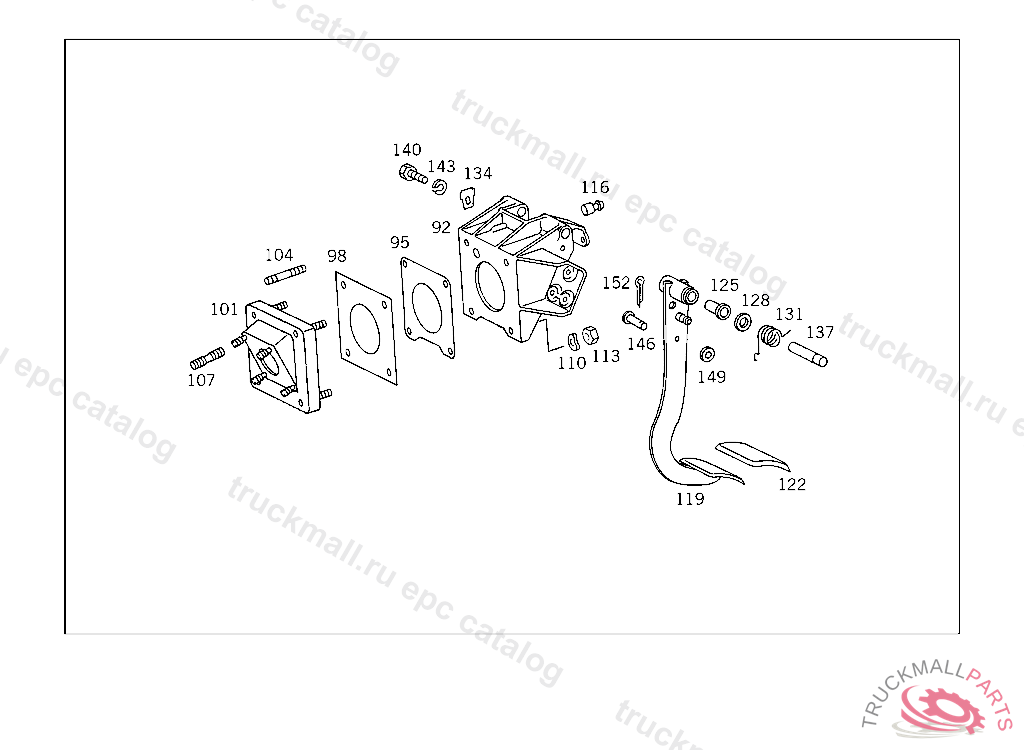

Поз.
Артикул
Описание
92
BEARING BRACKET BRAKE PEDAL
92
BEARING BRACKET , Replaced By: A3842947201
95
GASKET BEARING BRACKET TO CAB
98
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
101
BRACKET SERVICE BRAKE VALVE
101
BRACKET SERVICE BRAKE VALVE
104
SCREW. STUDM 8X25 MM
107
STUD COVER TO SHIFT CASE
110
SPRING WASHER STEERING SHAFT BEARING TO CAB
113
NUT LEVER TO SHIFTING SHAFT
116
STOP BRAKE PEDAL
119
PEDAL BRAKE, NO.8650I.......I I I II .......INO.9985I I I II I
122
PAD , Replaced By: A1072910182
125
BUSHING , Replaced By: A1242920050
128
SPACER WASHER BRAKE PEDAL TO BEARING BRACKET
131
SPRING BRAKE PEDAL TO BEARING BRACKET
134
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
134
LOCK , Replaced By: A6732920073
137
PIN CLUTCH PEDAL TO BEARING BRACKET
137
PIN , Replaced By: A6452940074
140
SCREWM 6X12
143
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
146
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
149
WASHER 10,5 DIN 433. WASHER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
152
COTTER PIN
