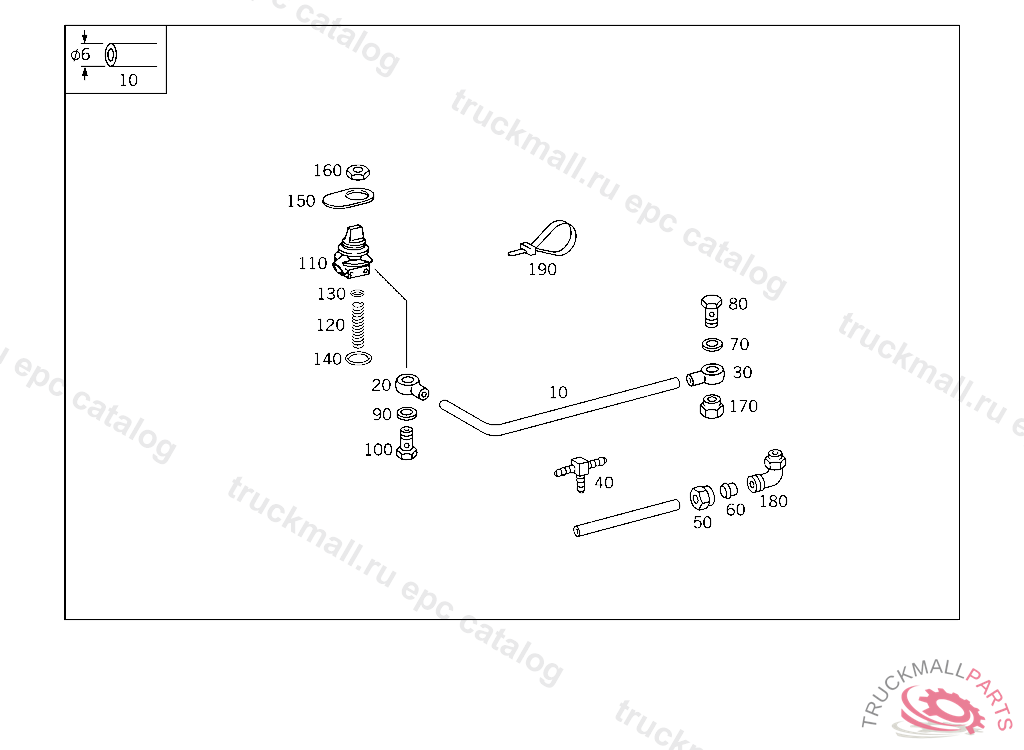

Поз.
Артикул
Описание
10
PLASTIC PIPE RISING PIPE 4X6 MM
10
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
20
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
20
BANJO UNION , Replaced By: N915052004006
30
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
40
DISTRIBUTOR HOSE WIDTH, 6 MM
50
UNION NUT
60
SEAL CONE
60
GLAND , Replaced By: A0019901667
70
SEAL RING LINE CONNECTION
80
HOLLOW SCREW HEATING CONNECTION
90
SEAL RING PNEUMATIC VALVE
90
SEAL RING , Replaced By: N007603010110
100
HOLLOW SCREW LINE CONNECTION
100
HOLLOW SCREW PNEUMATIC AND HYDRAULIC CYLINDERS, CONNECTION: "21,22"
110
VALVE 3/2-WAY BOSCH
110
VALVE 3/2-WAY VOSS
110
VALVE 3/2-WAY KNORR
110
VALVE 3/2-WAY WABCO
120
SPRING INSIDE WABCO
130
SEAL RING INSIDE WABCO
140
SEAL RING TOP WABCO
150
UNIT IDENTIFICATION PLATE AT TWO-WAY VALVE
160
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
170
UNION NUT LINE CONNECTION
170
UNION NUT , Replaced By: N915017008100
180
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
190
LOOM TIE LINE MOUNTING
999
SLEEVE LEAK LINE
999
GLAND LINE CONNECTION
999
FITTING PNEUMATIC CYLINDER,CONNECTION: "11", NOT USED
999
BUSHING , Replaced By: N915062004000
