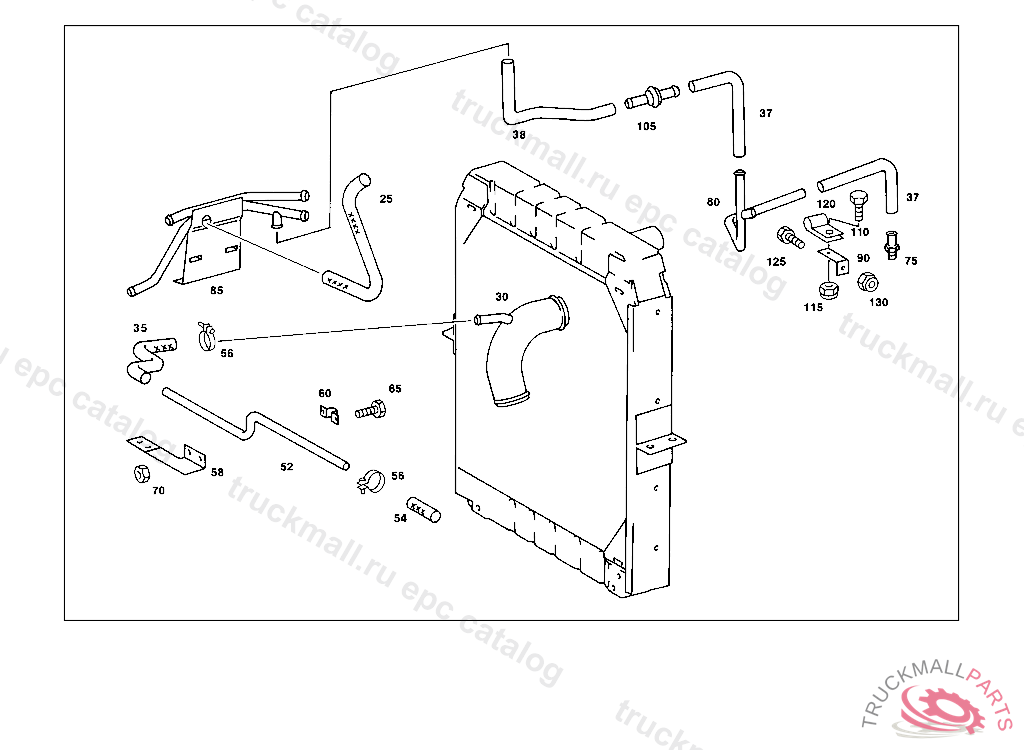

Поз.
Артикул
Описание
25
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
30
PIPE ELBOW FROM RADIATOR TO WATER PUMP
35
HOSE HEATING PIPE
37
HOSE HEATING PIPE
38
HOSE HEATING PIPE
38
HOSE HEATING PIPE
52
BREATHER PIPE HEATER UNIT
54
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
56
CLAMP , Replaced By: N000000000667
56
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
58
BRACKET AT CROSS MEMBER
60
CLAMP LINE MOUNTING
65
SCREW , Replaced By: N304017006020
65
SCREW LICENSE PLATE TO BRACKET
70
NUT BALL PIVOT TO LEVER
75
FITTING COOLING WATER LINE
80
LINE HEATING PIPE
85
LINE HEATING PIPE
90
BRACKET , Replaced By: A3184280240
90
BRACKET , Replaced By: A3873020140
90
BRACKET CABLE HARNESS MOUNTING
90
BRACKET LINE MOUNTING
105
VALVE (CHECK VALVE)
105
VALVE , Replaced By: A0008352772
110
SCREW COVER PLATE TO BRACKET
115
NUT PUMP TO BRACKET
115
NUT , Replaced By: N913004006001
120
CLAMP , Replaced By: N916016011202
120
CLAMP , Replaced By: A6739950001
120
CLAMP DELIVERY AND SUCTION LINES TO STEERING
120
CLAMP AT BRACKET
125
SCREW BRACKET TO CROSS CONNECTION STRUT
125
SCREW , Replaced By: N304017008034
130
NUT , Replaced By: N913004008001
130
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
