Поз.
Артикул
Описание

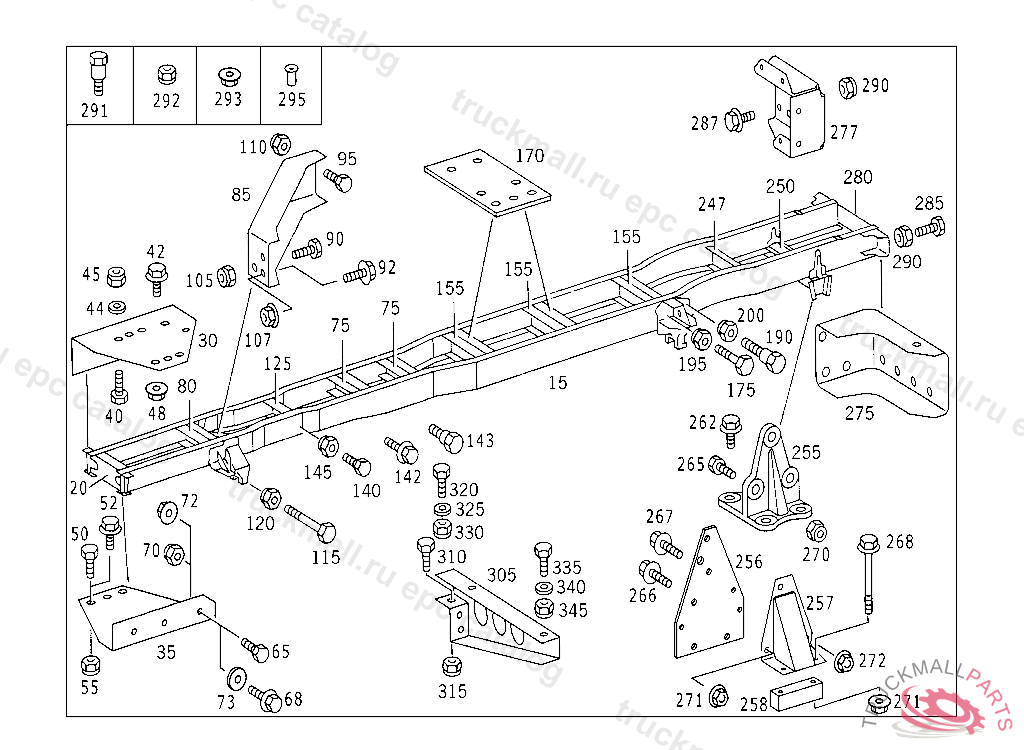

15
FRAME
20
CROSS MEMBER FRONT, 10/20 6 900239 50/60 5 332103
20
CROSS MEMBER FRONT, 10/20 6 900240 50/60 5 332104
30
GUSSET PLATE RIGHT TOP, 10/20 6 900240 50/60 5 332104
30
GUSSET PLATE RIGHT TOP, 10/20 6 900239 50/60 5 332103
30
GUSSET PLATE RIGHT TOP, 10/20 6 900240 50/60 5 332104
30
GUSSET PLATE LEFT TOP, 10/20 6 900240 50/60 5 332104
30
GUSSET PLATE LEFT TOP, 10/20 6 900239 50/60 5 332103
30
GUSSET PLATE LEFT TOP, 10/20 6 900240 50/60 5 332104
35
GUSSET PLATE LEFT BOTTOM, 10/20 6 900240 50/60 5 332104
35
GUSSET PLATE RIGHT BOTTOM, 10/20 6 900240 50/60 5 332104
35
GUSSET PLATE LEFT BOTTOM, 10/20 6 900239 50/60 5 332103
35
GUSSET PLATE RIGHT BOTTOM, 10/20 6 900239 50/60 5 332103
40
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
40
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
44
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
45
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
50
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
50
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
55
NUT BRACKET TO SIDE MEMBER
65
SCREW , Replaced By: N308676012026
68
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
70
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
75
CROSS MEMBERNO.2,NO.4
80
CROSS MEMBERNO.2
85
STRUT LEFT REINFORCEMENT
85
STRUT RIGHT REINFORCEMENT
90
SCREW SUPPORT TO SIDE MEMBER
95
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
105
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
110
NUT BRACKET TO SIDE MEMBER
115
FITTED SCREW CROSS MEMBER AND CONSOLE TO FRAME M 16X60
115
FITTED SCREW , Replaced By: A3919900014
115
FITTED SCREW , Replaced By: A6229900114
115
SCREWM 16X18X38X60
115
FITTED SCREW CROSS MEMBER AND SUPPORT TO SIDE MEMBERS M 16X70
115
SCREW BEARING BRACKET TO SIDE MEMBER
115
SCREWM 16X18X63X85
120
NUT CONSOLE TO SUPPORT
125
CROSS MEMBERNO.3
140
SCREW SUPPORT TO SIDE MEMBER M 14X45
140
SCREW MOUNTING TO CONSOLE M 14X55
140
SCREW BRACKET TO CAB CONSOLE,K 035197
145
NUT STEERING SUPPORT TO FRAME
155
CROSS MEMBERNO.5,NO.6,NO.7
170
SHIM REAR SPRING FRONT BRACKET
175
SCREW , Replaced By: N308676012022
175
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT M 12X75
175
HEXAGON HEAD BOLT. SCREW REINFORCEMENT TO SIDE MEMBER M 12X55
190
SCREWM 16X18X38X60
190
FITTED SCREW CROSS MEMBER AND CONSOLE TO FRAME M 16X55, 10/20 6 905086 50/60 5 437150
190
FITTED SCREW CROSS MEMBER AND CONSOLE TO FRAME M 16X60
190
FITTED SCREW CROSS MEMBER AND CONSOLE TO FRAME M 16X135
190
FITTED SCREW CROSS MEMBER AND CONSOLE TO FRAME M 16X110
195
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
200
NUT CONSOLE TO SUPPORT
247
CROSS MEMBERNO.10
250
ENGINE CROSS MEMBERNO.10
255
BEARING BRACKET TRANSMISSION MOUNTING
265
SCREW BRACKET TO SIDE MEMBER
270
NUT BRACKET TO SIDE MEMBER
275
STRUT REAR LEFT AND RIGHT, 10/20 6 900239 50/60 5 332103
275
BRACKET LEFT REAR, 10/20 6 900240 50/60 5 332104
277
BRACKET RIGHT REAR, 10/20 6 900240 50/60 5 332104
280
CROSS MEMBER REAR, 10/20 6 900240 50/60 5 332104
280
CROSS MEMBER REAR, 10/20 6 900239 50/60 5 332103
285
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
290
NUT BRACKET TO SIDE MEMBER
291
SCREWM 14X15X27X44
291
SCREWM 10X11X26.5X46
291
SCREWM 18X18X23X45
291
FITTED SCREWM 10X11X24X40
291
SCREWM 12X13X18X35
291
SCREWM 14X14X18X34
291
SCREWM 14X14X27X45
291
SCREWM 16X18X18X40
291
SCREW , Replaced By: N308676012013
291
SCREW , Replaced By: A3959900501
291
SCREW , Replaced By: A0029908201
291
SCREW , Replaced By: A3169900014
291
SCREW , Replaced By: A0009906314
291
SCREW , Replaced By: A3229903101
291
SCREW , Replaced By: N308676016020
291
SCREW , Replaced By: N000961016118
291
SCREW , Replaced By: N000961018043
291
SCREWM 12X12X13X28
291
SCREWM 16X17X28X48
291
SCREWM 12X13X12X29
291
FITTED SCREWM 18X19X25X45
291
SCREWM 12X13X63X85
291
SCREWM 12X13X13X30
291
SCREWM 14X14X24X42
291
SCREWM 14X15X17X34
291
FITTED SCREWM 18X19X38X60
291
SCREWM 12X12X10X25
291
SCREWM 16X17X24X44
291
SCREWM 12X13X25X42
291
SCREWM 12X13X58X80
291
SCREW CONSOLE TO FRAME
291
SCREWM 14X15X15X32
291
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
291
FITTED SCREWM 10X11X25X38
291
SCREWM 12X13X21X38
291
SCREWM 14X15X21X38
291
SCREWM 16X16X30X48
291
FITTED SCREWM 18X19X33X55
291
SCREWM 18X18X33X55
291
SCREWM 16X18X38X60
291
SCREWM 16X16X24X42
291
SCREWM 16X17X22X42
291
SCREWM 14X14X17X35
291
SCREWM 14X15X35X52
291
FITTED SCREWM 18X19X57X85
291
SCREWM 14X15X29X46
291
SCREWM 12X12X11X26
291
SCREWM 12X13X15X32
291
SCREW PLATE TO SIDE MEMBER
291
SCREWM 16X16X20X38
291
SCREWM 14X14X32X50
291
SCREWM 12X13X23X40
291
SCREWM 14X15X31X48
291
SCREWM 16X16X38X90
291
SCREWM 16X16X22X40
291
HEXAGON HEAD BOLT , Replaced By: A0029902704
291
SCREWM 14X15X19X36
291
SCREWM 16X16X32X50
291
SCREWM 12X12X15X30
291
SCREWM 12X12X17X32
291
SCREWM 14X15X18X35
291
SCREWM 14X14X18X32
291
FITTED SCREWM 10X11X14X28
291
SCREWM 16X18X26X48
291
SCREWM 12X14X13X35
291
SCREWM 16X16X20X45
291
SCREWM 16X18X63X85
291
SCREWM 14X14X22X40
291
SCREWM 12X13X35X52
291
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
292
NUT CONSOLE TO SUPPORT
292
NUT TORSION BAR TO BEARING BRACKET,5 904661
292
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
292
NUT STEERING SUPPORT TO FRAME
292
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
295
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
295
RIVET FRAME TRUSS TO SIDE MEMBER
295
RIVET REAR CROSS MEMBER 12X42 MM
295
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
305
SUPPORT DRIVER'S SEAT PEDESTAL
310
SCREW , Replaced By: N308676012026
310
SCREW BRACKET TO LEFT SIDE MEMBER
315
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
320
SCREW , Replaced By: N308676012026
325
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
330
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
335
SCREW CONSOLE TO SIDE MEMBER
340
WASHER
345
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
BODY SUPPORT FRONT LEFT AND RIGHT, 10/20 6 900239 50/60 5 332103
