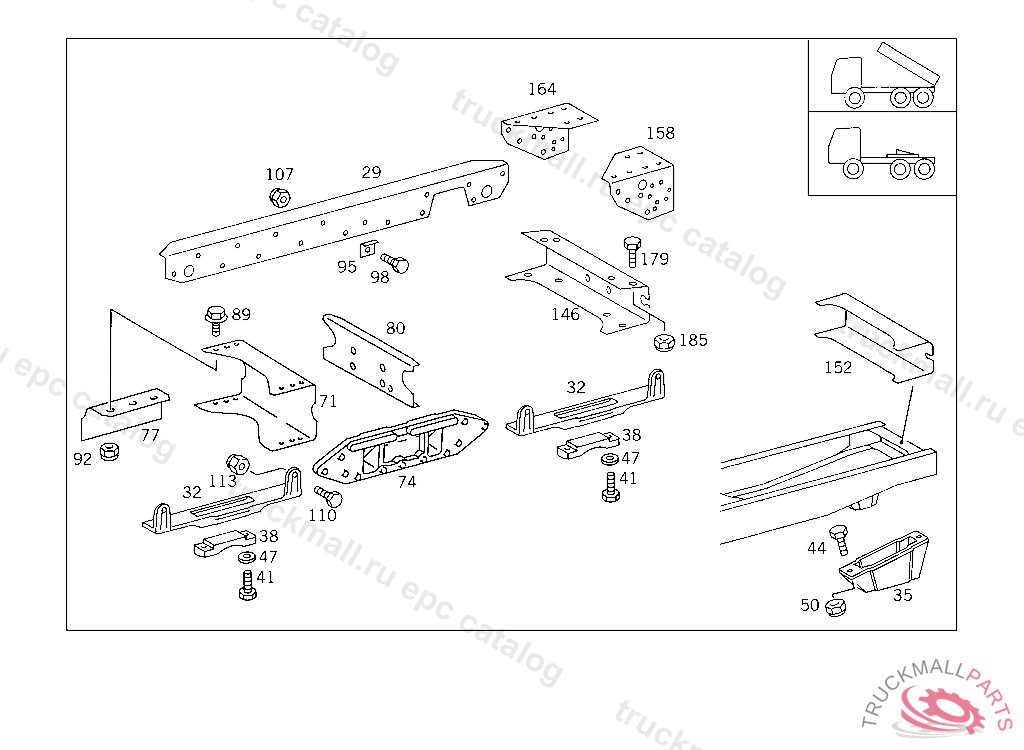

Поз.
Артикул
Описание
29
ANGLE RIGHT
29
ANGLE LEFT
32
PLATE REAR AXLE
38
RUBBER BUFFER REAR AXLE STOP
41
SCREW EXHAUST PIPE TO SIDE MEMBER
41
SCREW , Replaced By: N304017010002
41
SCREW , Replaced By: N910105010009
47
WASHER STRUT TO CROSS MEMBER
71
CROSS MEMBER CENTRAL BEARING
74
SUPPORT CENTRAL BEARING
77
ANGLE AT CROSS MEMBER
80
REINFORCEMENT AT CROSS MEMBER
89
SCREW CROSS MEMBER TO SIDE MEMBERS
89
SCREW CROSS MEMBER TO SIDE MEMBERS M 16X55
89
SCREW CROSS MEMBER TO SIDE MEMBERS
89
SCREW AUXILIARY FRAME MOUNTING M 16X1.5X95
89
SCREW CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS M 16X60
89
SCREW CROSS MEMBER TO SIDE MEMBERS M 16X1.5X55
89
SCREW CROSS MEMBER TO SIDE MEMBERS
92
NUT CROSS MEMBER TO SIDE MEMBERS
95
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
98
SCREW , Replaced By: N910105014010
98
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
107
NUT , Replaced By: N910113014001
146
CROSS MEMBER , Replaced By: A6553120435
146
CROSS MEMBER (REAR CROSS MEMBER)
158
GUSSET PLATE LEFT, TO BE ADAPTED DURING ASSEMBLY5 391620
164
GUSSET PLATE RIGHT, TO BE ADAPTED DURING ASSEMBLY5 391620
179
SCREW BRACKET TO FRAME M 10X28
179
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
185
NUT EXHAUST PIPE TO SIDE MEMBER
185
NUT , Replaced By: N910113010000
