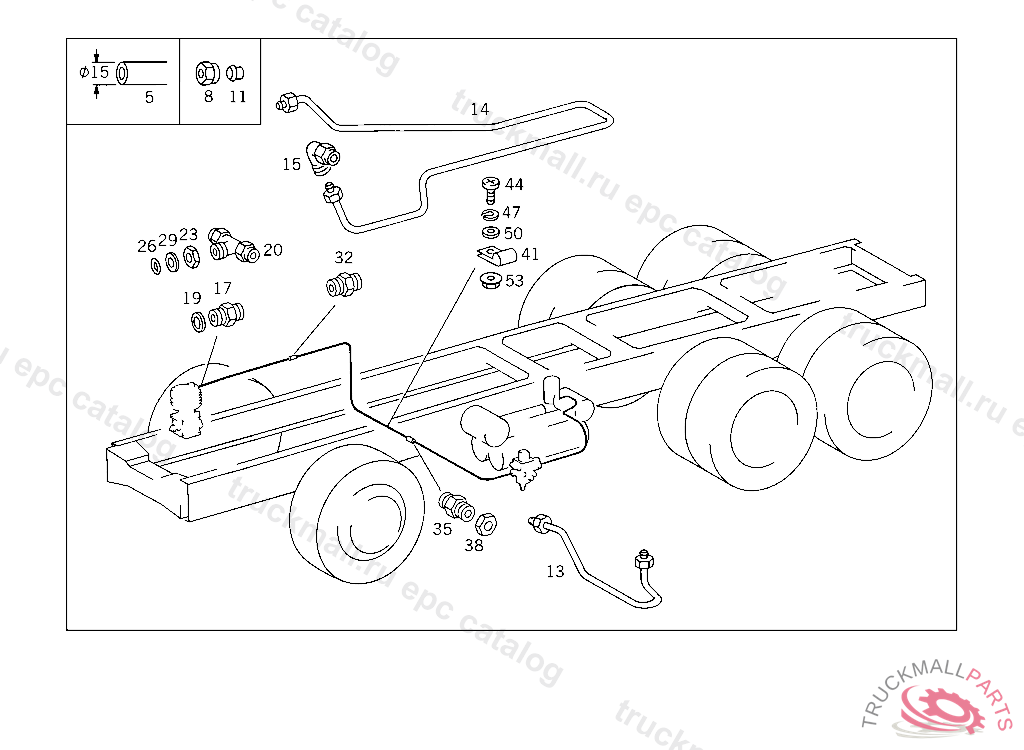

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
20
T-FITTING LINE CONNECTION
23
NUT SUCTION LINE TO OIL PUMP
26
SEAL RING LINE CONNECTION
29
THRUST RING SUCTION LINE TO OIL PUMP
32
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
35
BULKHEAD FITTING THROUGH SIDE MEMBER
38
NUT INTERMEDIATE SPEED STOP
41
CLAMP DELIVERY AND SUCTION LINES TO STEERING
44
SCREW , Replaced By: N000000001146
44
SCREW CLAMP MOUNTING M 6X16
44
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
44
SCREW CLAMP TO BRACKET M 6X14
47
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
NUT AT FILTER BRACKET
53
NUT , Replaced By: N913004006001
