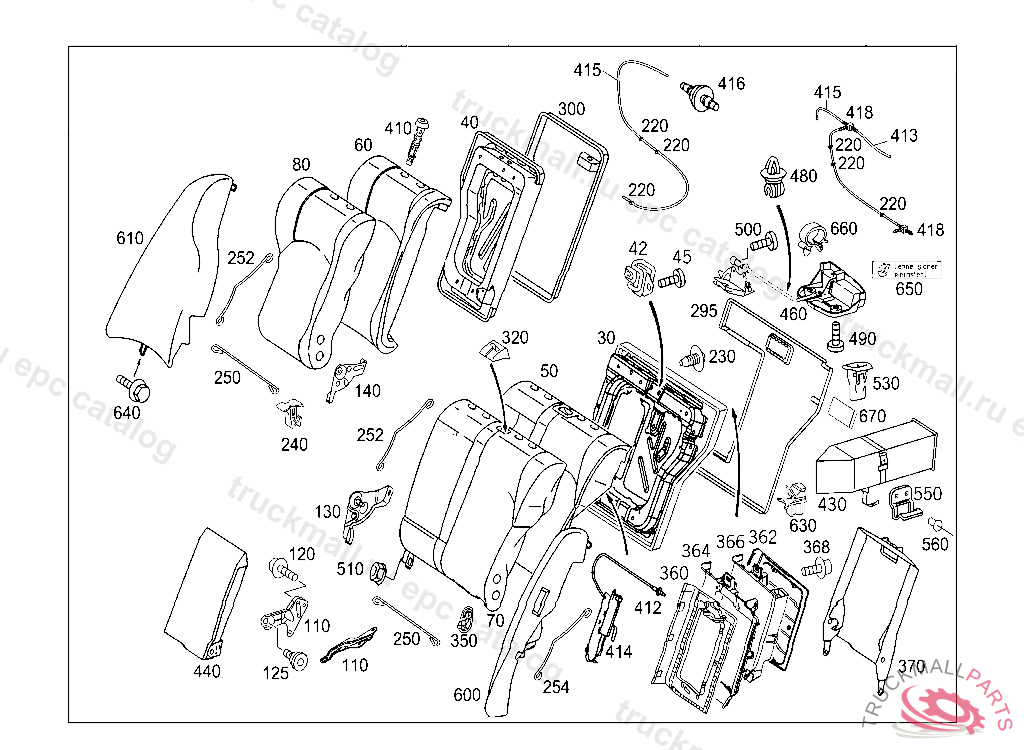

C 280 4MATIC - 203.092 - 92 REAR SEAT BENCH

Поз.
Артикул
Описание
30
A2039201932
BACKREST FRAME LEFT
40
A2039202032
BACKREST FRAME RIGHT
42
A2039230032
CLAMP TO BACKREST FRAME
45
A2039840429
BOLT BAR TO BACKREST FRAME M8X16
50
A2039201316
REST LEFT
50
A2039201116
REST LEFT
60
A2039201416
REST RIGHT
60
A2039201216
REST RIGHT
70
A2039204360
COVER LEFT
70
A2039201963
COVER LEFT
70
A2039201547
COVER LEFT
70
A2039202963
COVER LEFT
70
A2039207347
COVER LEFT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
70
A2039200760
COVER LEFT
70
A2039200163
COVER LEFT
70
A2039209160
COVER LEFT
70
A2039204960
COVER LEFT
70
A2039209347
COVER LEFT
70
A2039203160
COVER LEFT
70
A2039202347
COVER LEFT
70
A2039202760
COVER LEFT, E 01261920020830 A 43949820020906 F 34460520020910 R 08212620020930 E 01938620050630805
70
A2039200560
COVER LEFT
70
A2039204160
COVER LEFT
70
A2039203760
COVER LEFT
70
A2039204347
COVER LEFT
70
A2039204560
COVER LEFT
70
A2039205160
COVER LEFT
70
A2039209360
COVER LEFT
70
A2039200360
COVER LEFT
70
A2039201747
COVER LEFT
70
A2039200960
COVER LEFT
70
A2039204760
COVER LEFT
70
A2039205360
COVER LEFT
70
A2039208947
COVER LEFT
70
A2039204547
COVER LEFT
70
A2039205560
COVER LEFT
70
A2039200147
COVER LEFT
70
A2039201563
COVER LEFT
70
A2039200563
COVER LEFT
70
A2039202563
COVER LEFT
70
A2039202360
COVER LEFT, E 01261920020830 A 43949820020906 F 34460520020910 R 08212620020930 E 01938620050630805
70
A2039208547
COVER LEFT
70
A2039203560
COVER LEFT
70
A2039205760
COVER LEFT
70
A2039204747
COVER LEFT
70
A2039203360
COVER LEFT
70
A2039203960
COVER LEFT
70
A2039204147
COVER LEFT
70
A2039208347
COVER LEFT
70
A2039208747
COVER LEFT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
80
A2039202063
COVER RIGHT
80
A2039200260
COVER RIGHT
80
A2039205660
COVER RIGHT
80
A2039203660
COVER RIGHT
80
A2039202460
COVER RIGHT, E 01261920020830 A 43949820020906 F 34460520020911 R 08212620020930 E 01938620050630805
80
A2039202663
COVER RIGHT
80
A2039209047
COVER RIGHT
80
A2039200060
COVER RIGHT
80
A2039203860
COVER RIGHT
80
A2039209447
COVER RIGHT
80
A2039204460
COVER RIGHT
80
A2039204260
COVER RIGHT
80
A2039201663
COVER RIGHT
80
A2039204447
COVER RIGHT
80
A2039203460
COVER RIGHT
80
A2039204247
COVER RIGHT
80
A2039202447
COVER RIGHT
80
A2039203260
COVER RIGHT
80
A2039200247
COVER RIGHT
80
A2039204060
COVER RIGHT
80
A2039208847
COVER RIGHT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
110
A2039730120
BEARING ARMREST ON THE LEFT
110
A2039700120
BEARING ARMREST ON THE LEFT
110
A2039700220
BEARING ARMREST ON THE RIGHT
120
N000000001145
SCREW BRACKET TO COVERING
125
A2039900410
BOLT ARMREST M8X8
130
A2039201124
BEARING LEFT REAR BACKREST
140
A2039200824
BEARING RIGHT REAR BACKREST
220
A0079973390
CABLE CLAMP BOWDEN CABLE
230
A0009974686
PLUG TUNNEL
240
A2039880078
CLIP TRANSVERSAL TACKING
250
A1239242329
BRACKET SEAT COVER MOUNTING,TRANSVERSE
250
A2039140329
CLAMP COVER STITCHING 285 MM
250
A1239242029
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
250
A2029240529
BRACKET SEAT COVER MOUNTING,TRANSVERSE
252
A1239242029
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
252
A2039140329
CLAMP COVER STITCHING 285 MM
252
A1239241729
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
254
A1239242329
BRACKET SEAT COVER MOUNTING,TRANSVERSE
295
A2099240362
LINING LEFT REAR BACKREST, 9F08QFT203A0147 SINGLE TONE BLACK
300
A2099240462
LINING RIGHT REAR BACKREST, 9F08QFT203A0147 SINGLE TONE BLACK
320
A2039230422
COVER BELT OUTLET
350
A2039230420
BEARING OUTSIDE RIGHT,RIGHT SEAT
350
A2039230320
BEARING OUTSIDE LEFT,LEFT SEAT
360
A2039200065
TAKE-UP DEVICE SKI-BAG
362
A2039200286
COVER ARMREST
364
A2039230622
COVER SIDE MEMBER
366
A2039230522
COVER ARMREST
368
A0019904722
SCREW CONSOLE TO KNEE PROTECTION PAD
370
A2038400007
FLAP SKI-BAG
410
A2039700541
GUIDE REAR SEAT HEADREST CENTRAL
410
A2039700041
GUIDE HEADREST INTO BACKREST
410
A2039700441
GUIDE HEAD RESTRAINT, WITH BUTTON
412
A2038000081
LINE FOLD DOWN HEAD RESTRAINT
413
A0079976182
HOSE *** 30 MM
414
A2038050044
PLUG TO LINE
415
A0079976182
HOSE *** 30 MM
416
A2038000053
CLUTCH FOLD DOWN HEAD RESTRAINT
418
A2108000222
DISTRIBUTOR DOUBLE
430
A2038400162
DASHPOT SKI-BAG
440
A2039701130
FOLDING ARMREST
440
A2039701030
FOLDING ARMREST
440
A2039700930
FOLDING ARMREST
440
A2039700630
FOLDING ARMREST
440
A2039701530
FOLDING ARMREST
440
A2039701830
FOLDING ARMREST
440
A2039701730
FOLDING ARMREST
440
A2039701630
FOLDING ARMREST
460
A2039200372
LOCKING MECHANISM LEFT
460
A2039200472
LOCKING MECHANISM RIGHT
480
A1409884078
CLIP VACUUM LINE
490
A2039900610
BOLT LOCK TO CROSSMEMBER M6X11
500
A2119840429
BOLT FRONT PASSENGER AIRBAG TO INSTRUMENTPANEL M5X16
510
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
530
A2039230025
CLIP CONSOLE
550
A2039220220
BEARING SKI BAG FLOOR MOUNT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805
560
A0039904597
RIVET BRACKET BEARING, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805
600
A2039201503
BACKREST OUTSIDE LEFT
600
A2039204130
BACKREST OUTSIDE LEFT
600
A2039201703
BACKREST OUTSIDE LEFT
600
A2039202131
BACKREST OUTSIDE LEFT
600
A2039206331
BACKREST OUTSIDE LEFT
600
A2039201130
BACKREST OUTSIDE LEFT
600
A2039204330
BACKREST OUTSIDE LEFT
600
A2039205303
BACKREST OUTSIDE LEFT
610
A2039204430
BACKREST OUTSIDE RIGHT
610
A2039201803
BACKREST OUTSIDE RIGHT
610
A2039206431
BACKREST OUTSIDE RIGHT
610
A2039202231
BACKREST OUTSIDE RIGHT
610
A2039201603
BACKREST OUTSIDE RIGHT
610
A2039204230
BACKREST OUTSIDE RIGHT
610
A2039201230
BACKREST OUTSIDE RIGHT
610
A2039205403
BACKREST OUTSIDE RIGHT
630
A2039230114
BRACKET REAR BACKREST OUTER LEFT
630
A2039230214
BRACKET REAR BACKREST OUTER RIGHT
640
A1639900136
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
660
A0009956044
CLAMP BOWDEN CABLE TO CAB
670
A2039220098
SOUNDPROOFING LEFT REAR BACKREST
