Поз.
Артикул
Описание

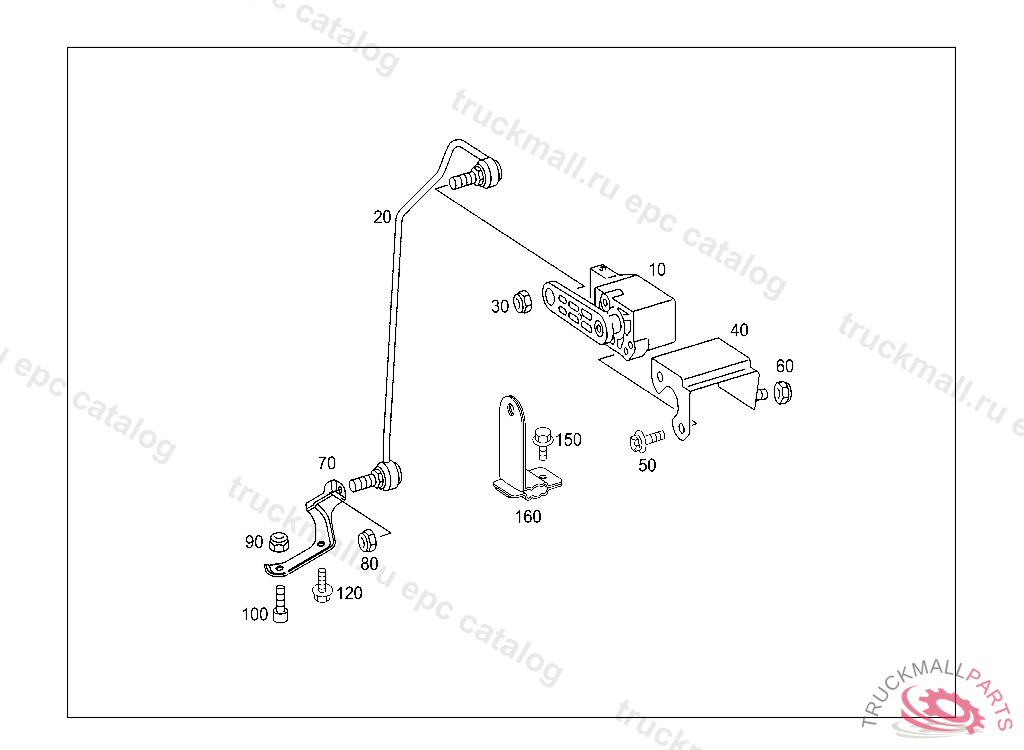

10
SENDER UNIT (TURNING ANGLE SENSOR), FROM MODEL YEAR 1998
20
ROD , E 02000020070101, Replaced By: A2093200189
20
ROD , E 00988320020330 A 38922320020529 F 37861820020712 R 04934220020823
30
NUT HEATING PIPE TO BRACKET
40
BRACKET MOUNTING, SENSOR
40
BRACKET
50
HEXALOBULAR BOLT TURNING ANGLE SENSOR AT BRACKET M5X10
60
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
70
PLATE ROD TO SPRING CONTROL ARM
90
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
100
SCREW SPRING STOP
120
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
150
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
160
BRACKET BOTTOM
160
BRACKET TOP
