Поз.
Артикул
Описание
10

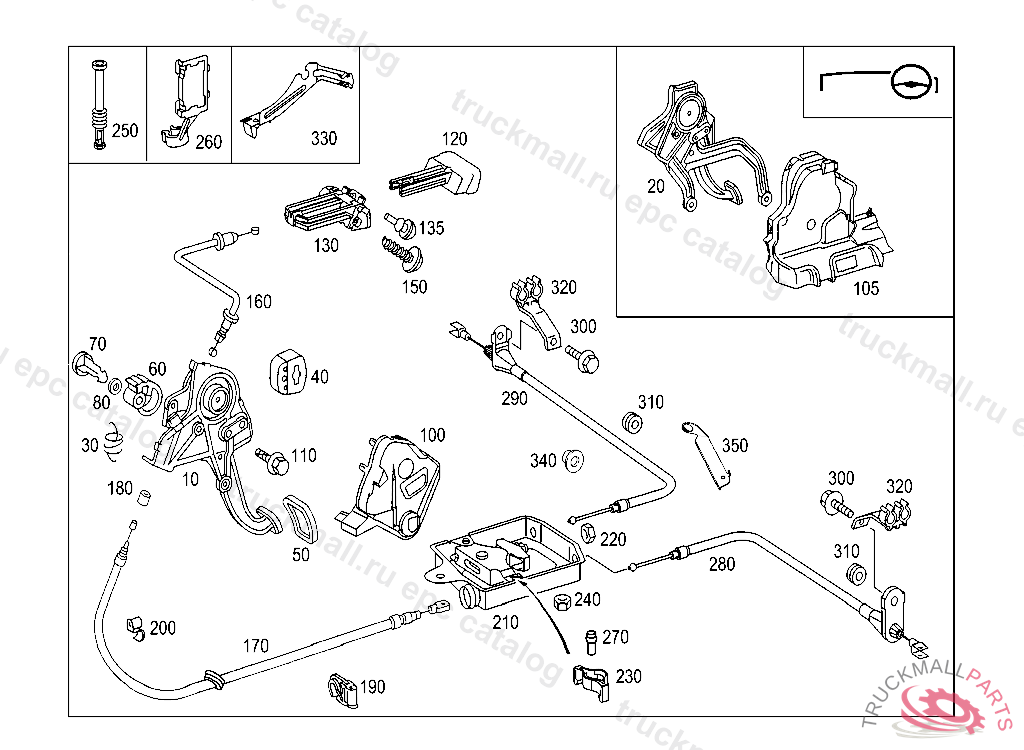

PARKING BRAKE
30
SPRING , FROM MODEL YEAR'96
40
STOP , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
50
PAD FOOT OPERATED PARKING BRAKE
50
PAD PEDAL
60
DETENT GREY, COMPARE NEW PART WITH REMOVED PART
70
PIN , FROM MODEL YEAR'96
100
COVER PARKING BRAKE
110
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
110
HEXAGON HEAD BOLT FASTENING, FOOT-OPERATED PARKING BRAKE M8X22
120
HANDLE , 7C45020201A/205AQFT203A4600 DEEP GREY
130
GUIDE
135
STOP ARMREST
150
PAN HEAD SCREW. SCREW GROUND CONNECTION
160
BRAKE CABLE RELEASE FOR FOOT OPERATED PARKING BRAKE
170
BRAKE CABLE PARKING BRAKE
170
BRAKE CABLE PARKING BRAKE
180
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
190
CLAMP FRONT BRAKE CABLE TO TUNNEL
200
CLAMP
210
ADJUSTER PARKING BRAKE
220
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
230
CLIP
240
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
250
GUIDE
260
BRACKET
270
PIN
280
BRAKE CABLE REAR LEFT
290
BRAKE CABLE REAR RIGHT
300
HEXALOBULAR BOLT TORSION BAR TO CARRIER M8X16
310
GROMMET BRAKE CABLE TO REAR AXLE
320
BRACKET UNDER MOUNTING BOLT OF BRAKE CABLE
330
BRACKET ON COVER PANEL RIGHT OF REAR AXLE FOR REAR AXLE F/BRAKE LINI.WEAR DISP.LINI.
340
PUSH BUTTON ADJUSTMENT
